ST37 Three Phase Thyristor Power Voltage Regulator Module

ST37 thyristor voltage regulator module adopts split structure design, the main control part and the trigger part are separated from each other. It is suitable for high-power control occasions of one-to-multi-channel trigger pulse wave board, triggering pulse wave board is with  independent DC24 power supply, the main control board is a functional prototype of ST33. The specific functions can be referred to the ST33. Only the different trigger pulse board are required.

This model requires the customer to purchase in large quantity. If the quantity is small, please select ST33.

The control board can achieve the use of various functions such as thyristor rectifier, motor soft start, charge and discharge, etc., and the three-phase or single-phase, high-power or high-voltage, with strong flexibility. Different requirements can be customized according to customer's needs.

Various trigger pulse wave module: 1140V three-phase six-pulse moudle, 380V/660V three-phase six-pulse module, 220V/380V single-phase four-pulse module, 220V/380V single-phase two-pulse module.

Technical Specifications
◆ Working power supply: 380Vac ±15%,  50/60HZ
◆ Voltage adjustment range: 0 ~ 100%
◆ Current adjustment range: 0 ~ 100%
◆ Display methods: LCD or touch screen
◆ Phase shift range: 0~178°
◆ Adjust output resolution: 1/4000
◆ Stability accuracy: better than ±1% or 1V
◆ PID dynamic response time: ≤ 50mS
◆ Overshoot: ≤ 10%
◆ Input signal: DC0-5V or DC0-10V or 0-10mA or 4-20mA or 10K potentiometer adjustment  (Pls express which you need)
◆ Three-phase trigger imbalance: ≤ 0.3°
◆ Applicable load: Resistive, inductive, transformer load and other loads
◆ Alarm relay contact capacity: 250Vac/10A
◆ Dielectric strength(voltage isolation): 3500 Vac for 1 minute
◆ Ambient (working) temperature: -20°C~ 60°C
◆ Working Relative humidity: ≤ 90% RH (no frost)
◆ Indoor installation requirements: no flammable, no explosive, no corrosive gas, no conductive dust, and vibration should be less than 0.5G
◆ Dimensions: 175 * 160 * 50mm
◆ Dimensions between install holes: 160 * 145mm
◆ Weight: 0.8 KG

ST37 meets the standard:
IEC60947-4-2: Low-voltage switchgear and controlgear. Part 4-2: Contactors and motor-starters. AC semiconductor motor Controllers and starters.
GB14048.6-1998: Low-voltage switchgear and controlgear Part 4-2: Contactors and motor starters AC semiconductor motor controllers and starters.
GB3797-89: Electronic Control Equipment Part II - Electronic Control Equipment with Electronic Devices.
IEC61000-4: Electromagnetic compatibility, test and measurement technology.
IEC65: Safety of household and similar general purpose electronic and related equipment powered by grid power.

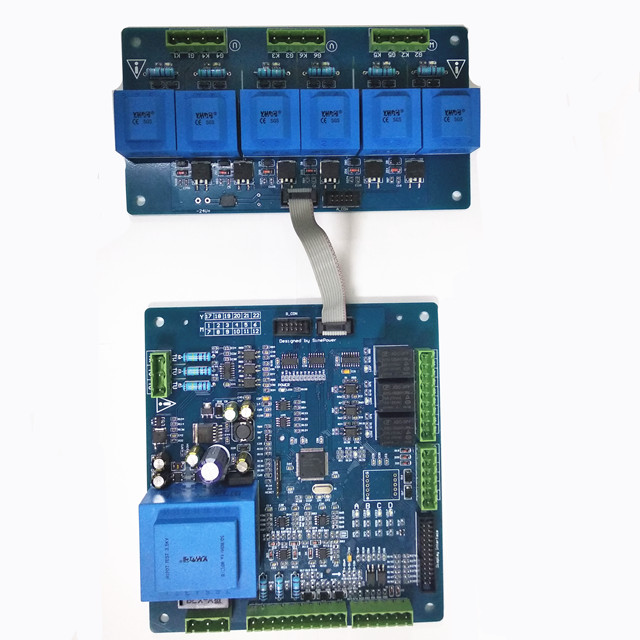

ST37 thyristor control board + driver board sample

Relevant peripheral accessories and products：
STP30 Constant Voltage Feedback Module；STP10 RC Absorption mModule；
STP20 Three Phase Synchronous Transformer Module；STP22 6 Pulse Trigger Module；
STP01 LCD Operation Display Screen Module；SFP20 IGBT Driver Module。
