· Product Introduction

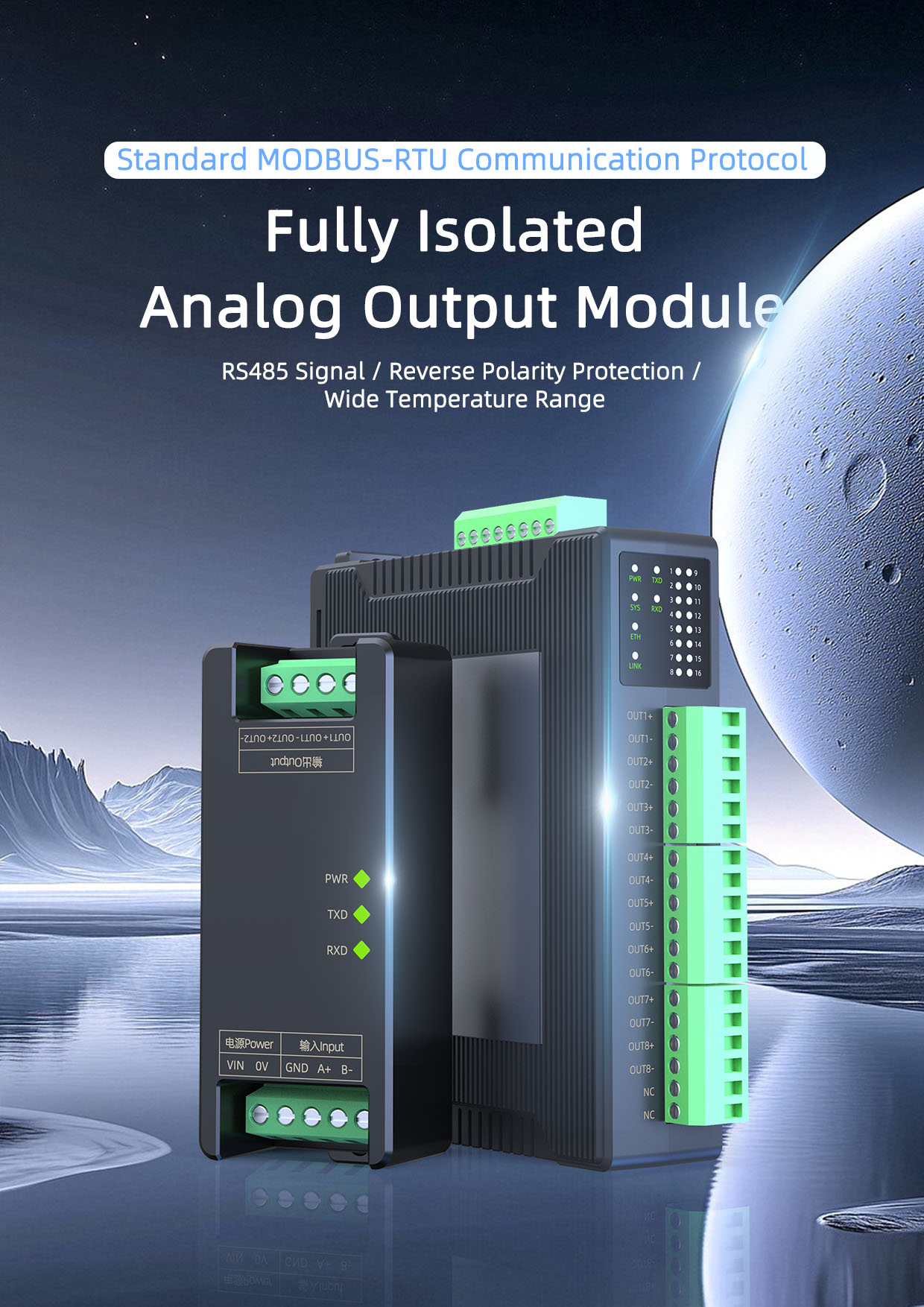

SPV Analog Output Module is precision-engineered based on a new generation of embedded systems. The module features an isolated communication interface, allowing it to communicate independently with PCs, PLCs, touchscreen panels, and other terminal devices. Additionally, the module is equipped with a transient suppression circuit that effectively suppresses various surge pulses, ensuring reliable operation in harsh environments.

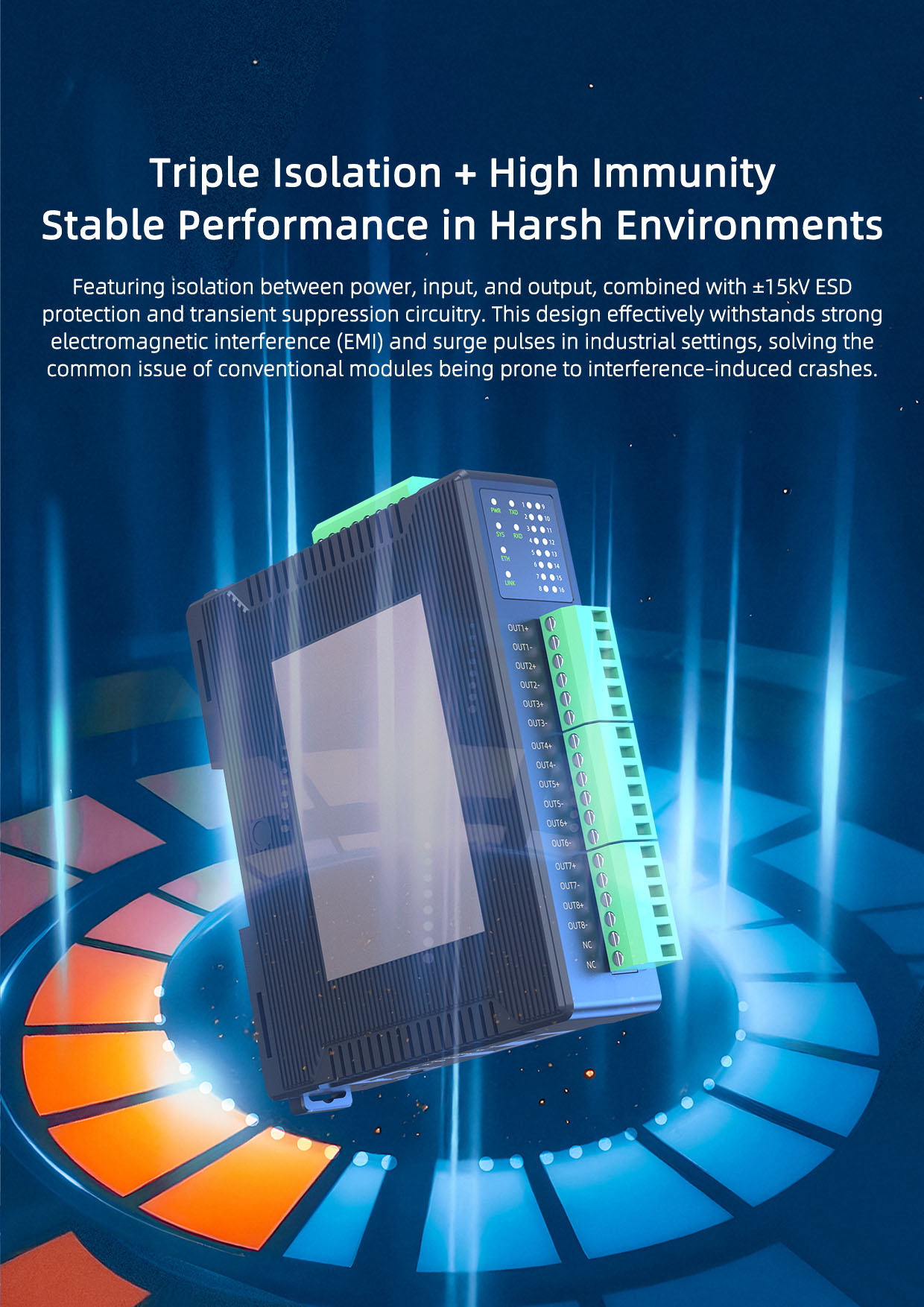

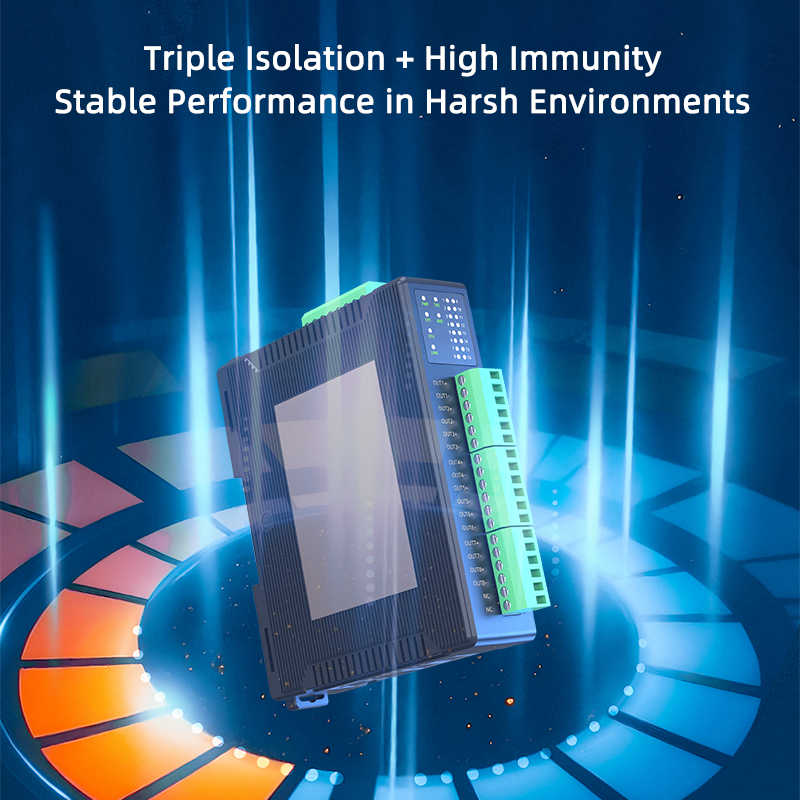

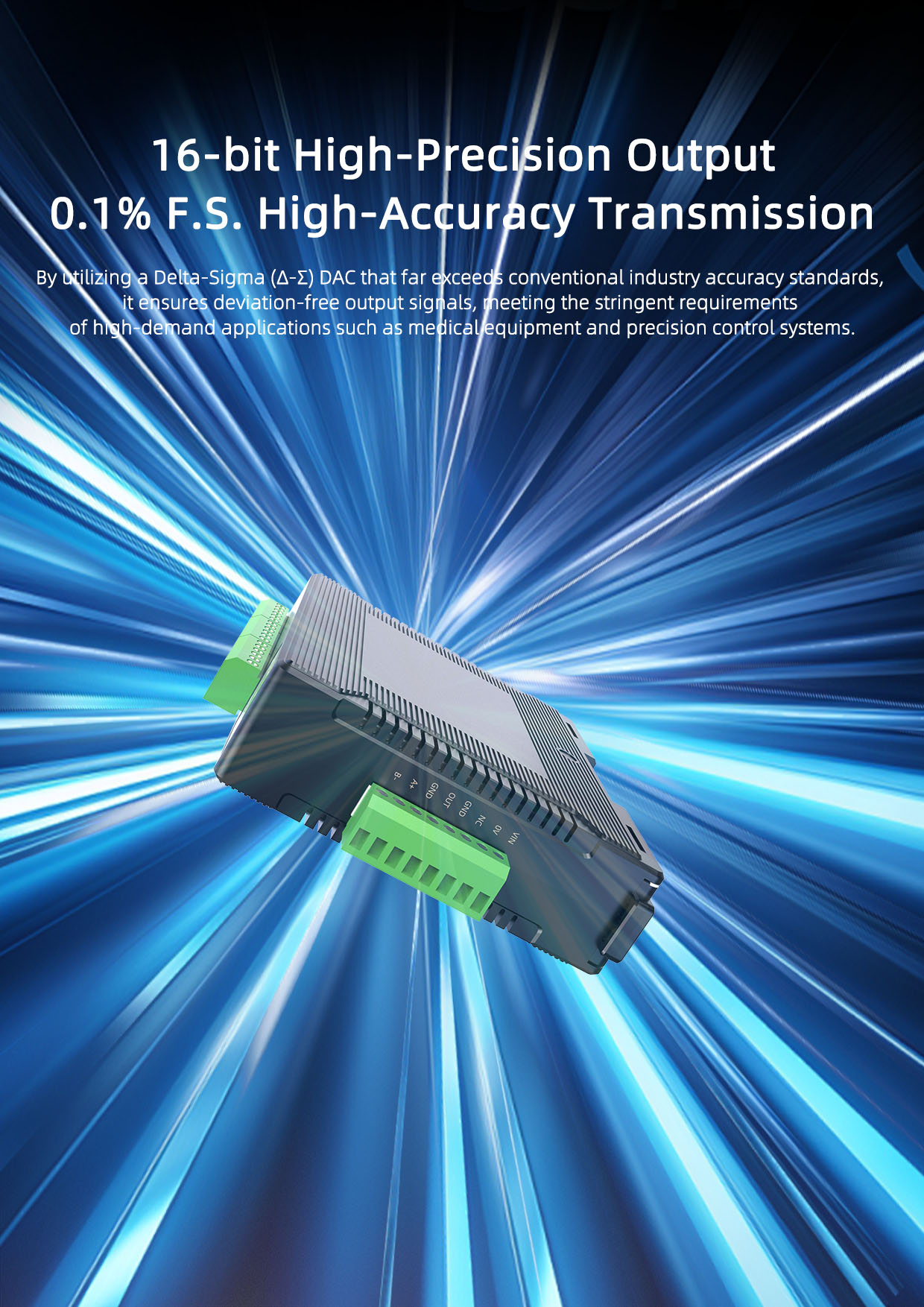

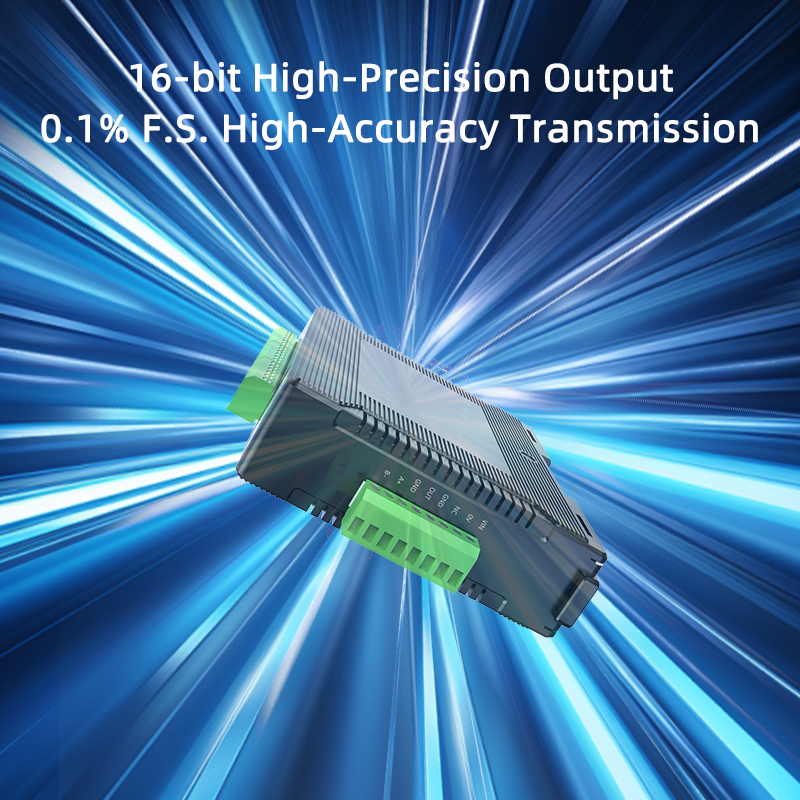

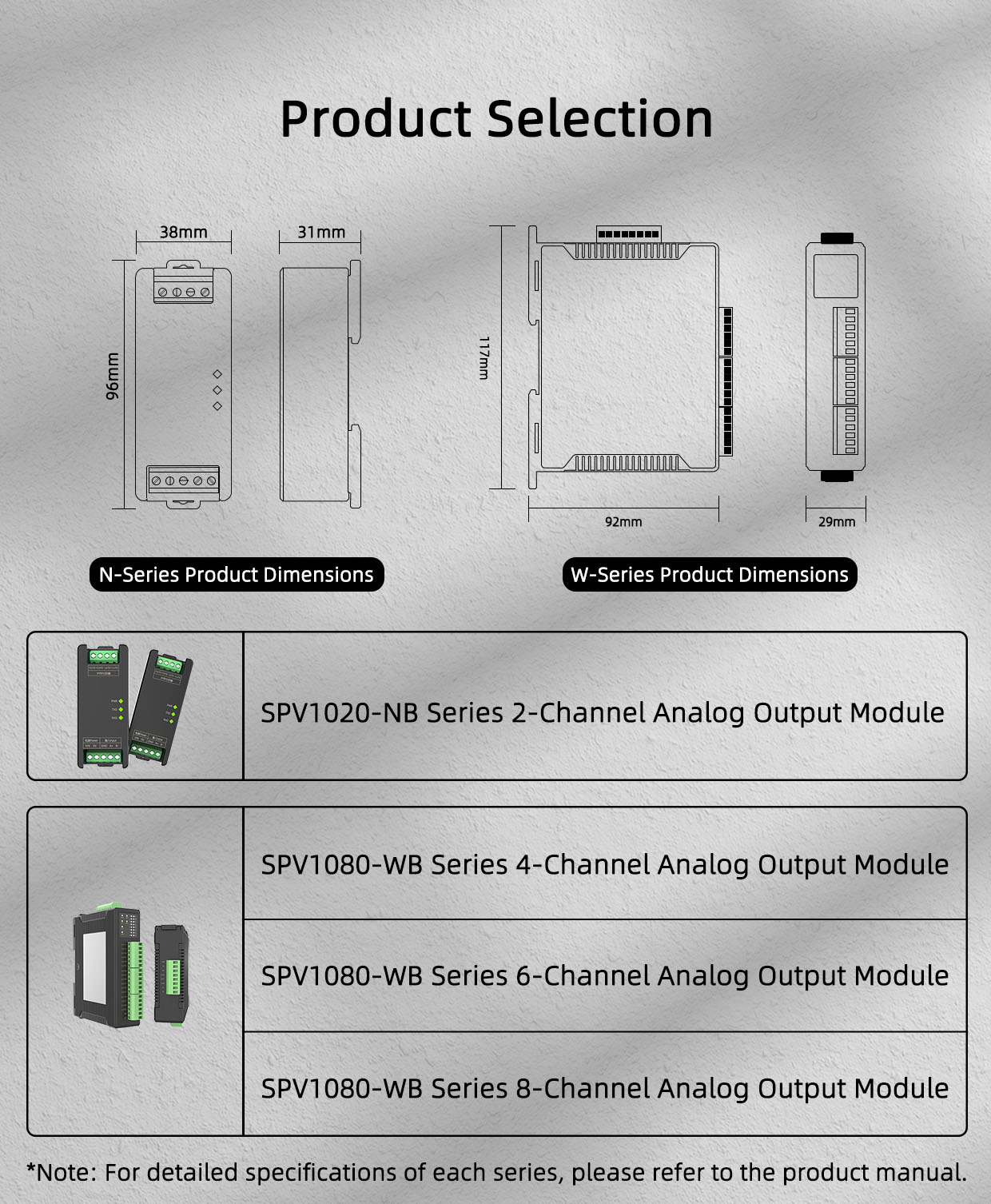

SPV1080-WB Series Analog Output Module delivers 4/8 channels of analog output signals. The module incorporates an advanced DAC converter, providing a 16-bit output resolution with accuracy better than 0.1%. It features triple isolation between power supply, input, and output circuits. Designed to output analog signals compatible with field equipment, it meets the demands of applications requiring high signal integrity, including industrial sites, medical electronics, security monitoring, smart buildings, smart homes, power monitoring, and process control scenarios.

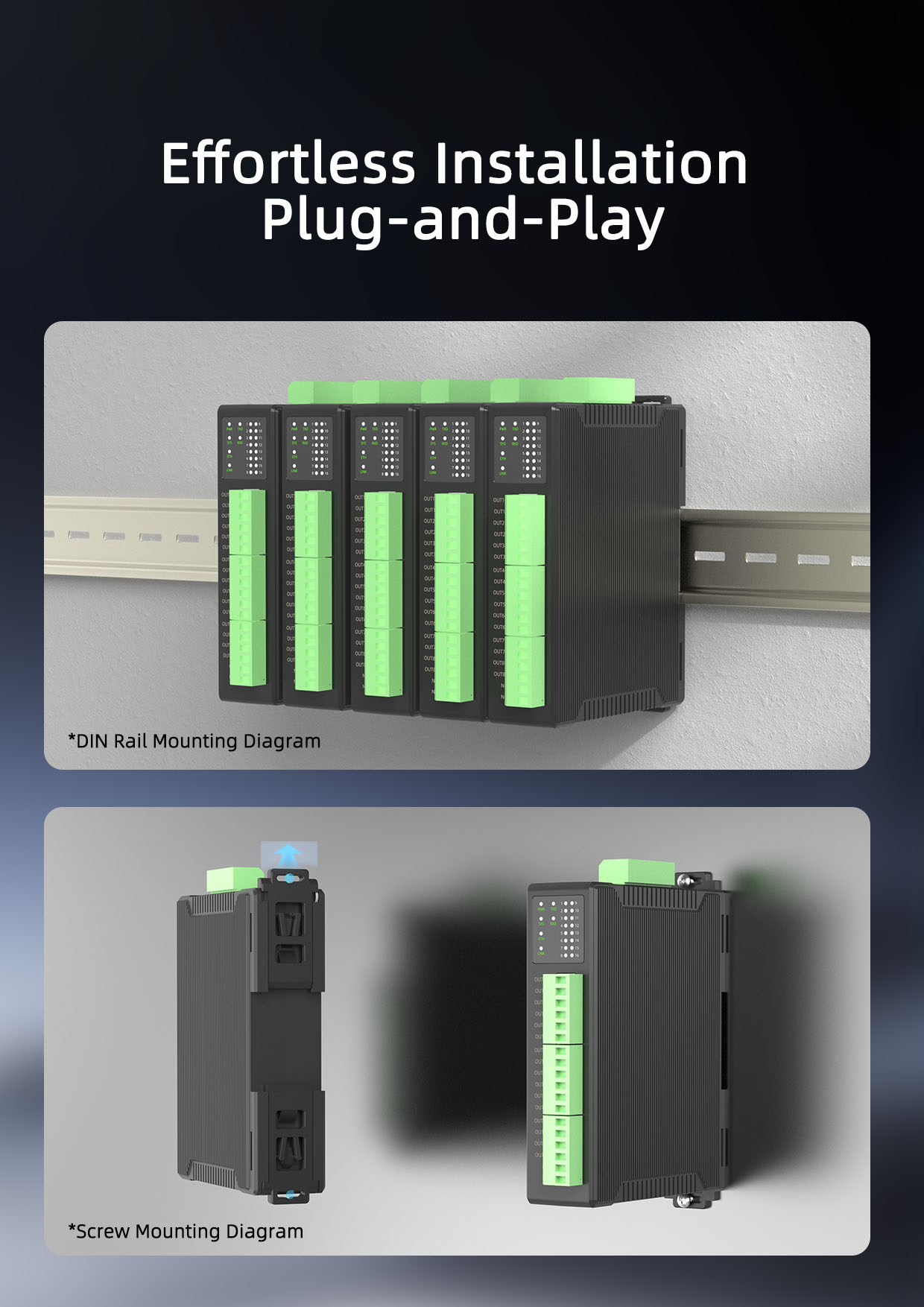

This product requires an independent power supply and adopts a DIN 35mm standard rail mounting method, enabling simple on-site installation and flexible use to meet the demands of various application scenarios.

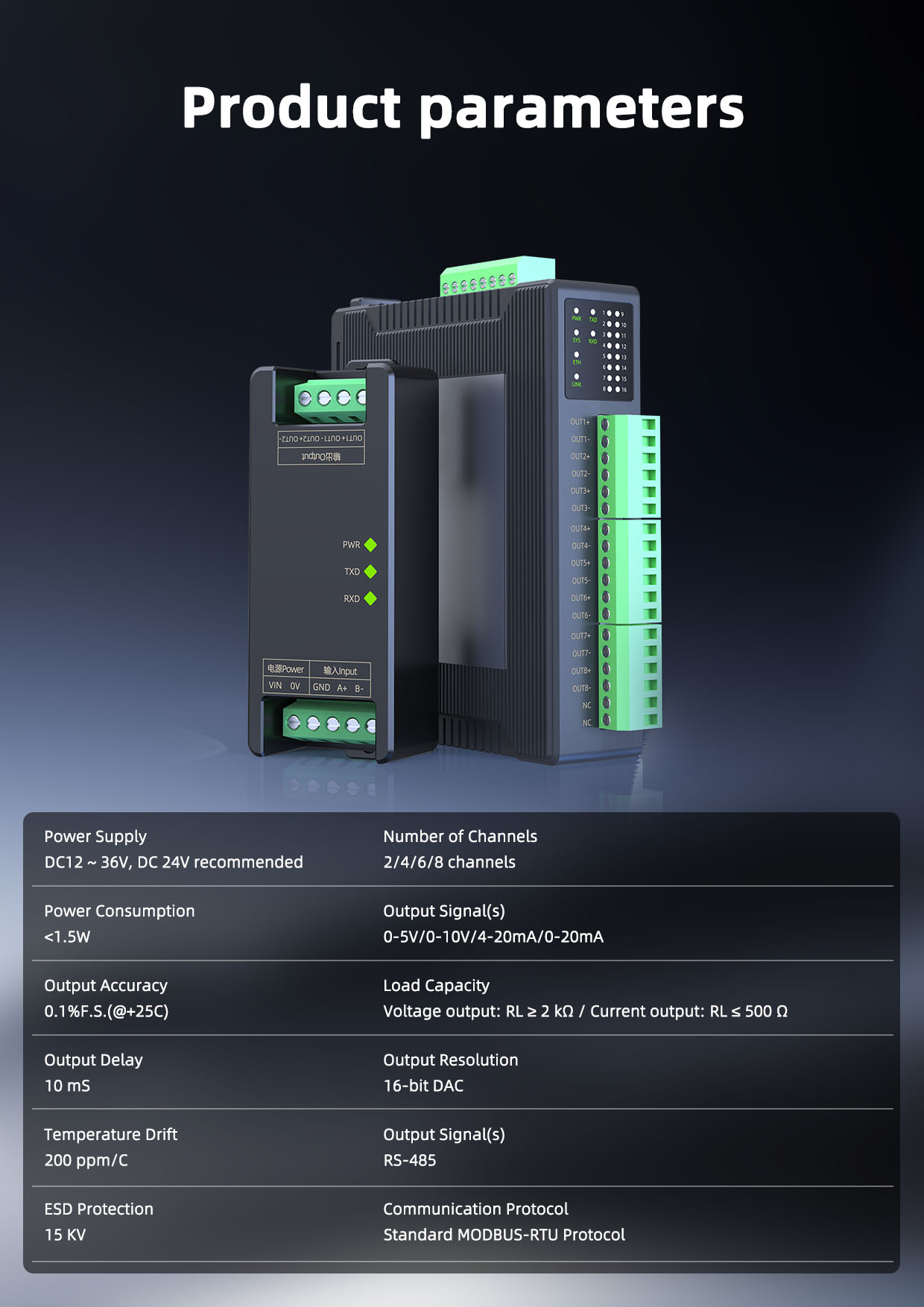

· Basic Parameters
Power Supply DC12～36V(DC24V recommended)
Power Consumption ＜1.5W
Temperature Drift ≤200ppm/℃
ESD Protection ±15KV
Isolation Voltage 3000VDC
Power Protection Reverse connection voltage< -40V
Dielectric Strength 1500 VAC / 1 minute
(Power, Input, Output)
Insulation Resistance ≥100MΩ (Power, Input, Output)
EMC Compatibility Complies with GB/T18268.1 (IEC61326-1)
Applicable Field Devices Devices supporting MODBUS-RTU protocol: Configuration software, PLC, HMI, PC, etc.
· Output Terminal

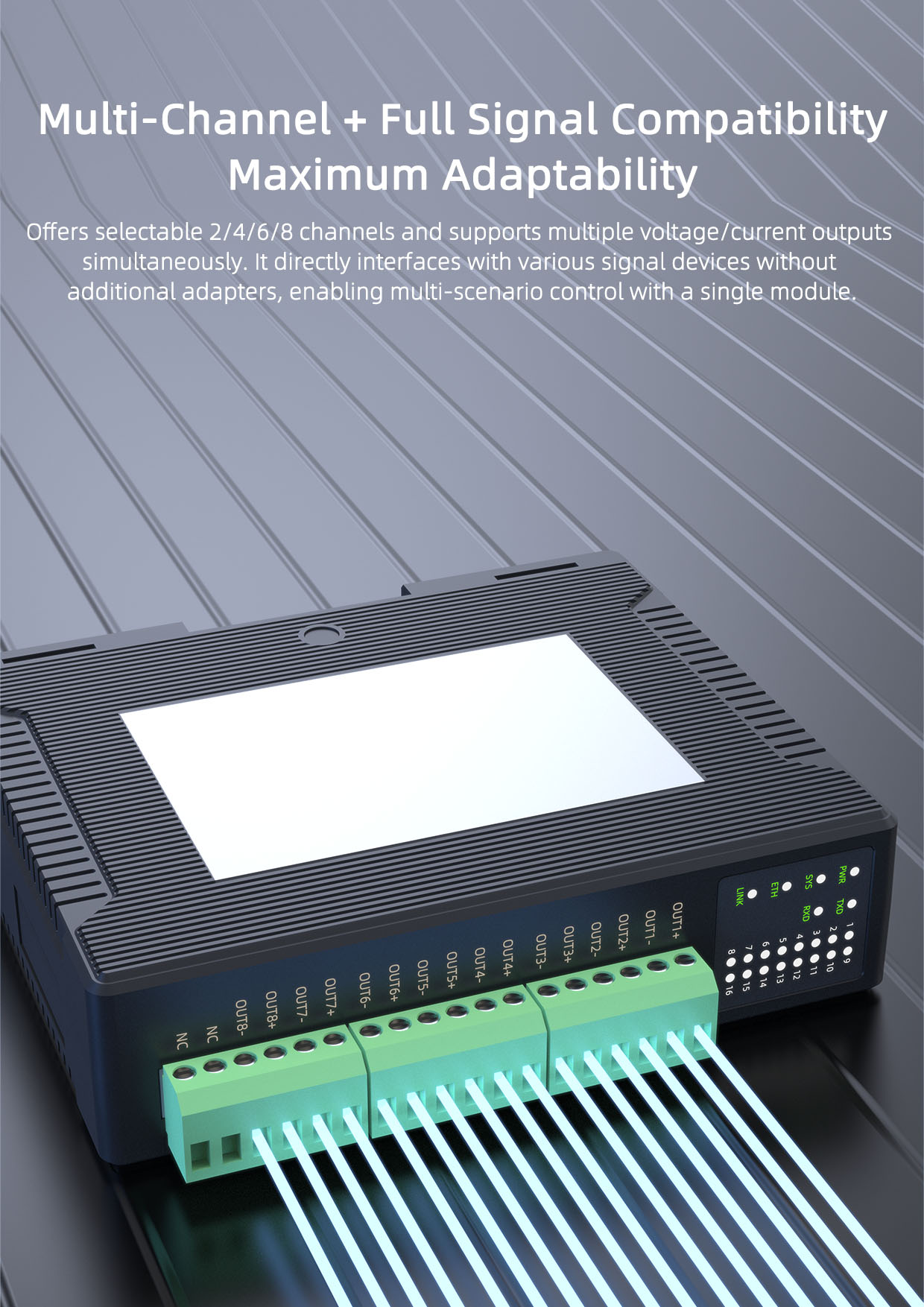

Number of Channels 8 channels
Output Signal 0-5V、0-10V、4-20mA、0-20mA
Load Capacity Voltage Output: RL ≥ 2 kΩ
Current Output: RL ≤ 500 Ω
Output Resolution 16-bit DAC
Output Accuracy ±0.1%F.S（+25℃）
Response Time ≤1mS
Output Linearity 0.05% of F.S.

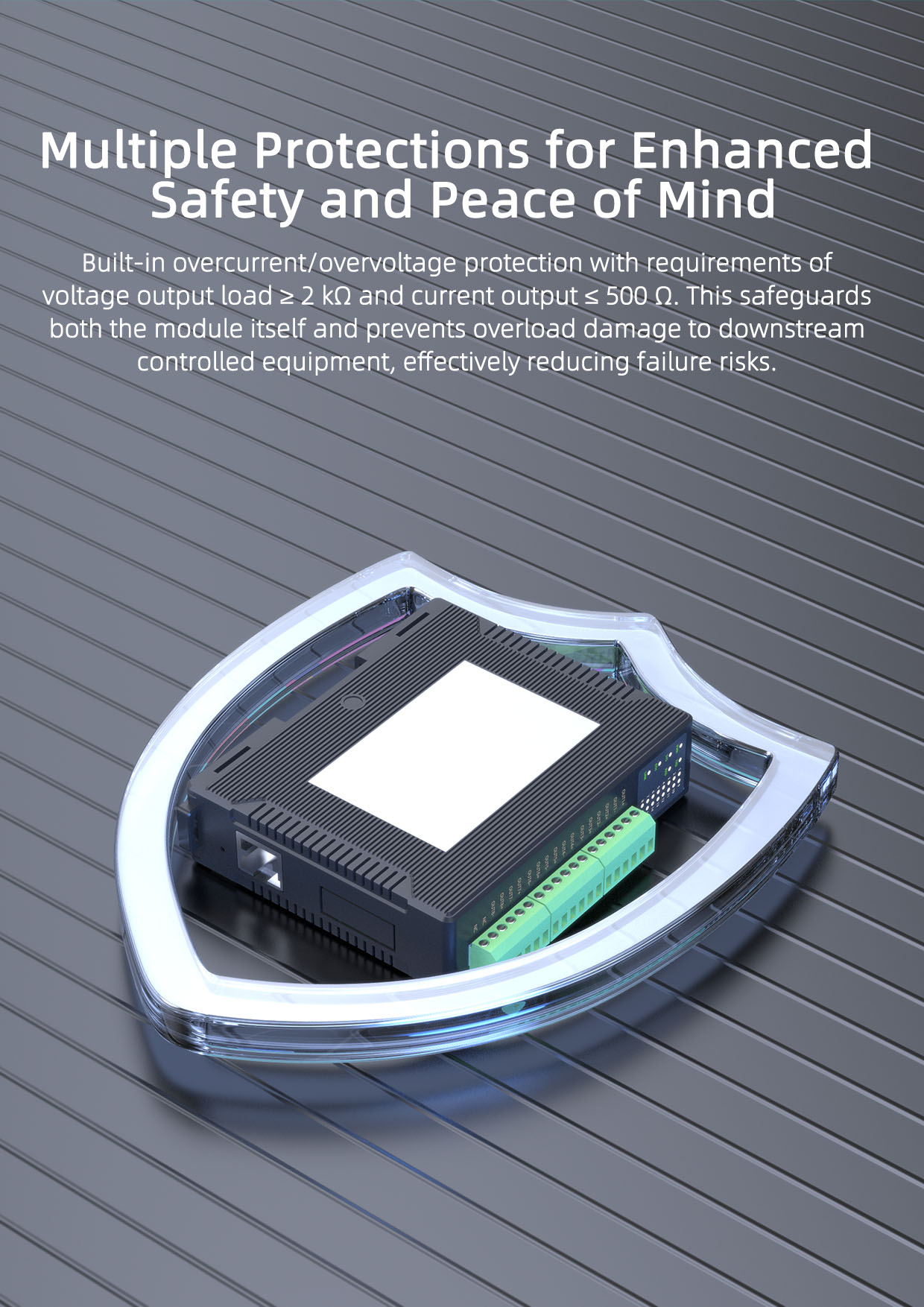

Output Protection Over-Current or Over-Voltage Protection
· Input Terminal
Input Signal RS485/ Ethernet
Communication Protocol Standard MODBUS-RTU protocol

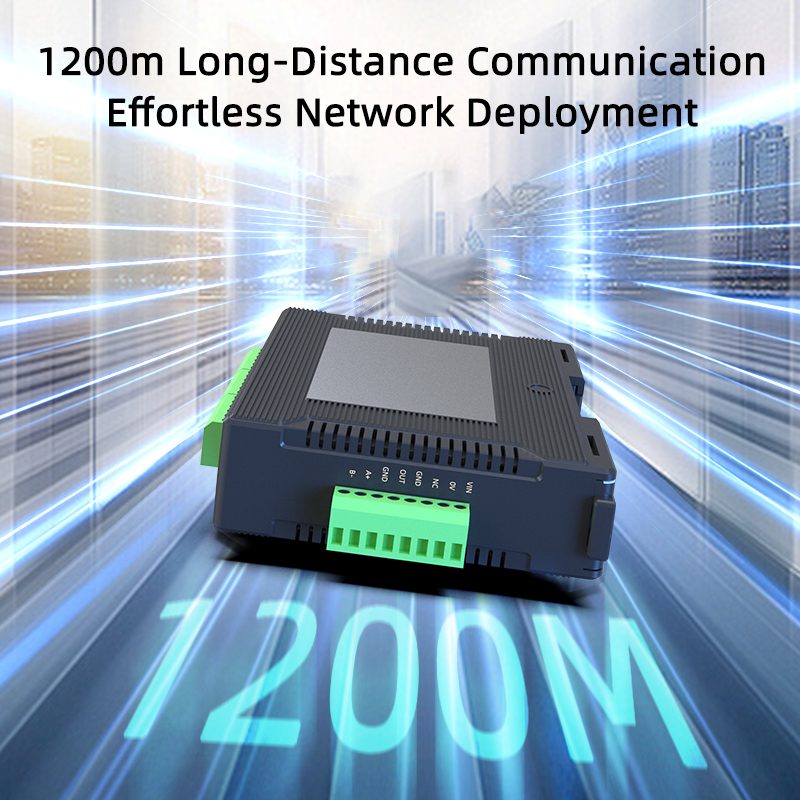

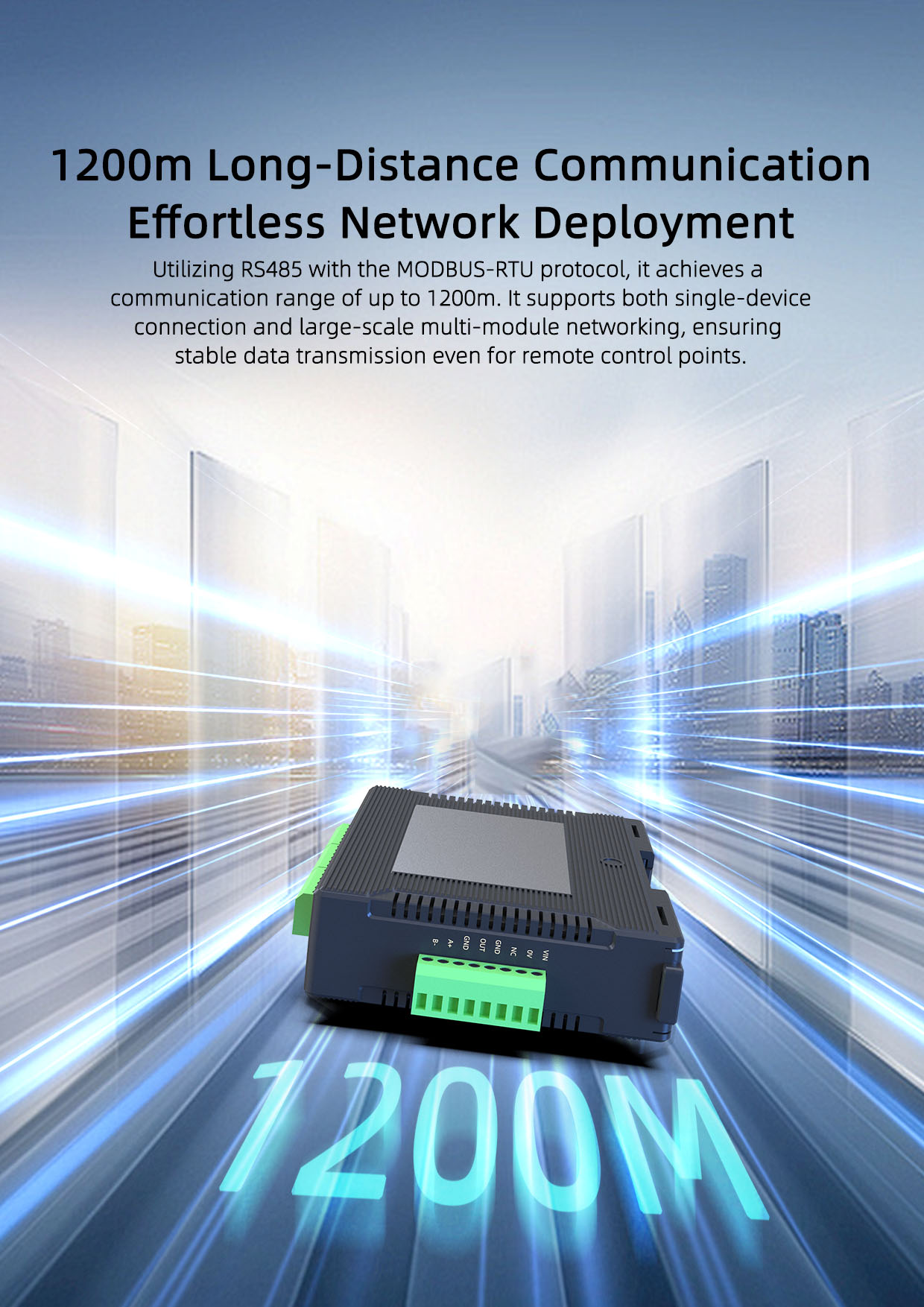

Communication Distance 1200m (RS485 typical)
· Environmental Conditions
Operating Temperature -40℃～+80℃
Storage Temperature -40℃～+85℃
Relative Humidity 10%～90%RH (non-condensing)
Atmospheric Pressure 80kPa～106kPa
