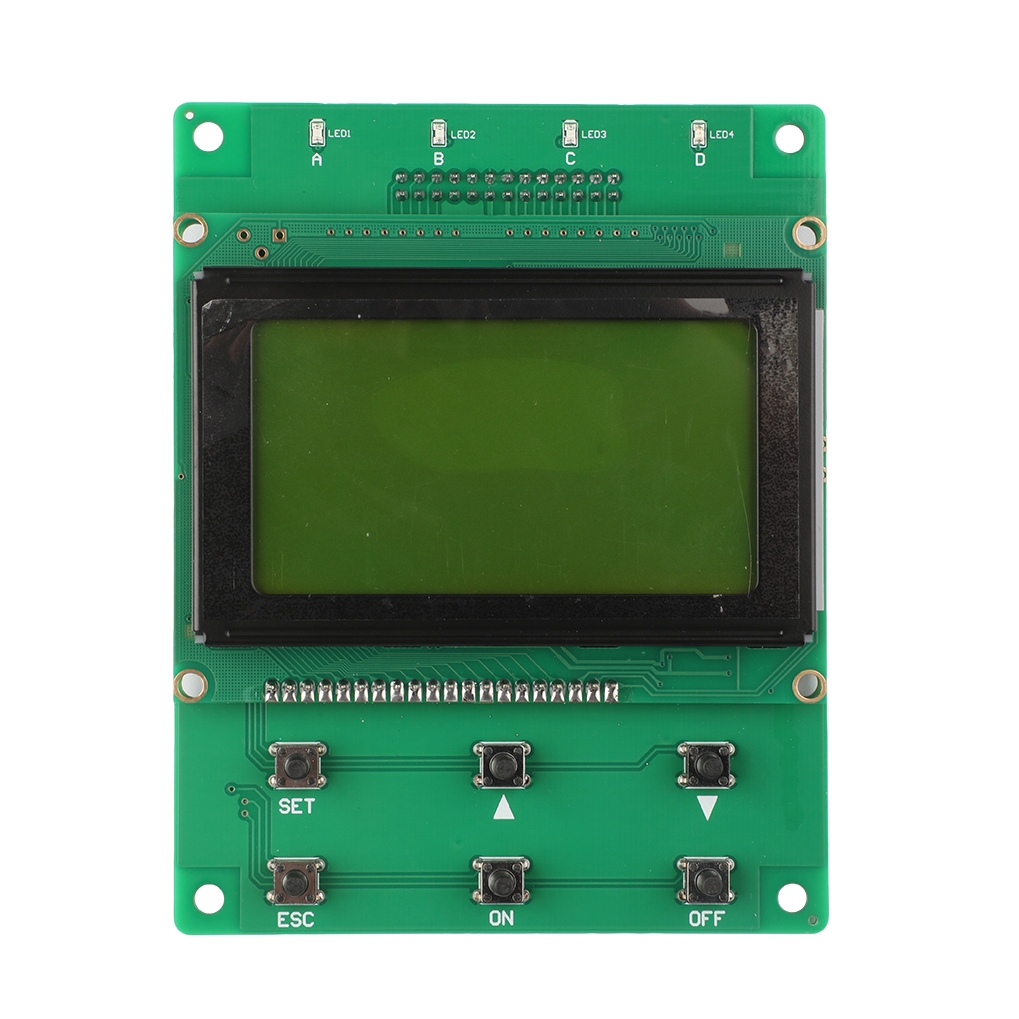

STP01 Operation & Display Module

This display and operation module is an accessory for ST/SC series products

Module Dimensions: 120mm (L) × 94mm (W) × 22mm (H)

LCD Module Dimensions: 93mm (L) × 70mm (W) × 13.5mm (H)

Viewing Area Size: 72mm × 40mm

12864 screen with Chinese menu display

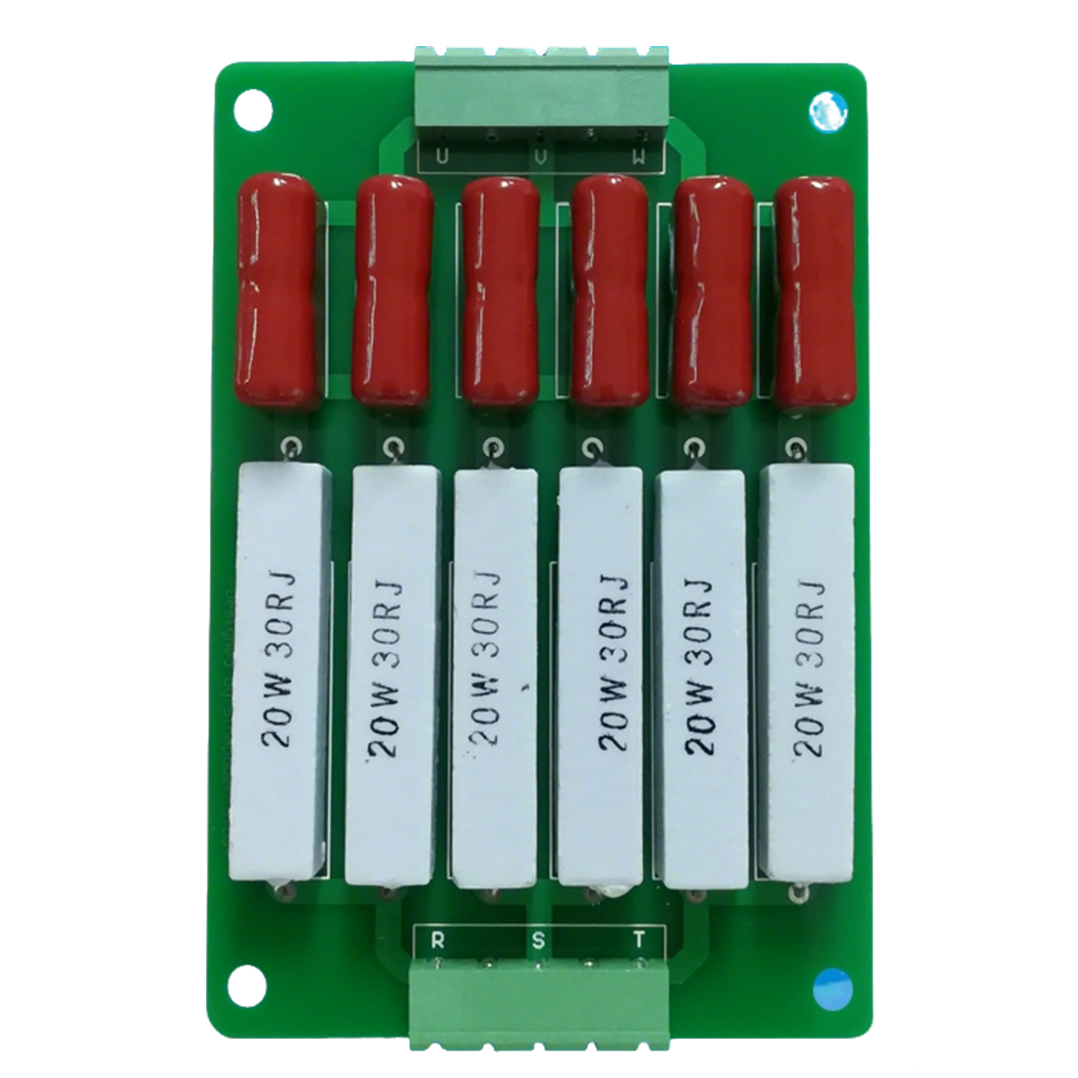

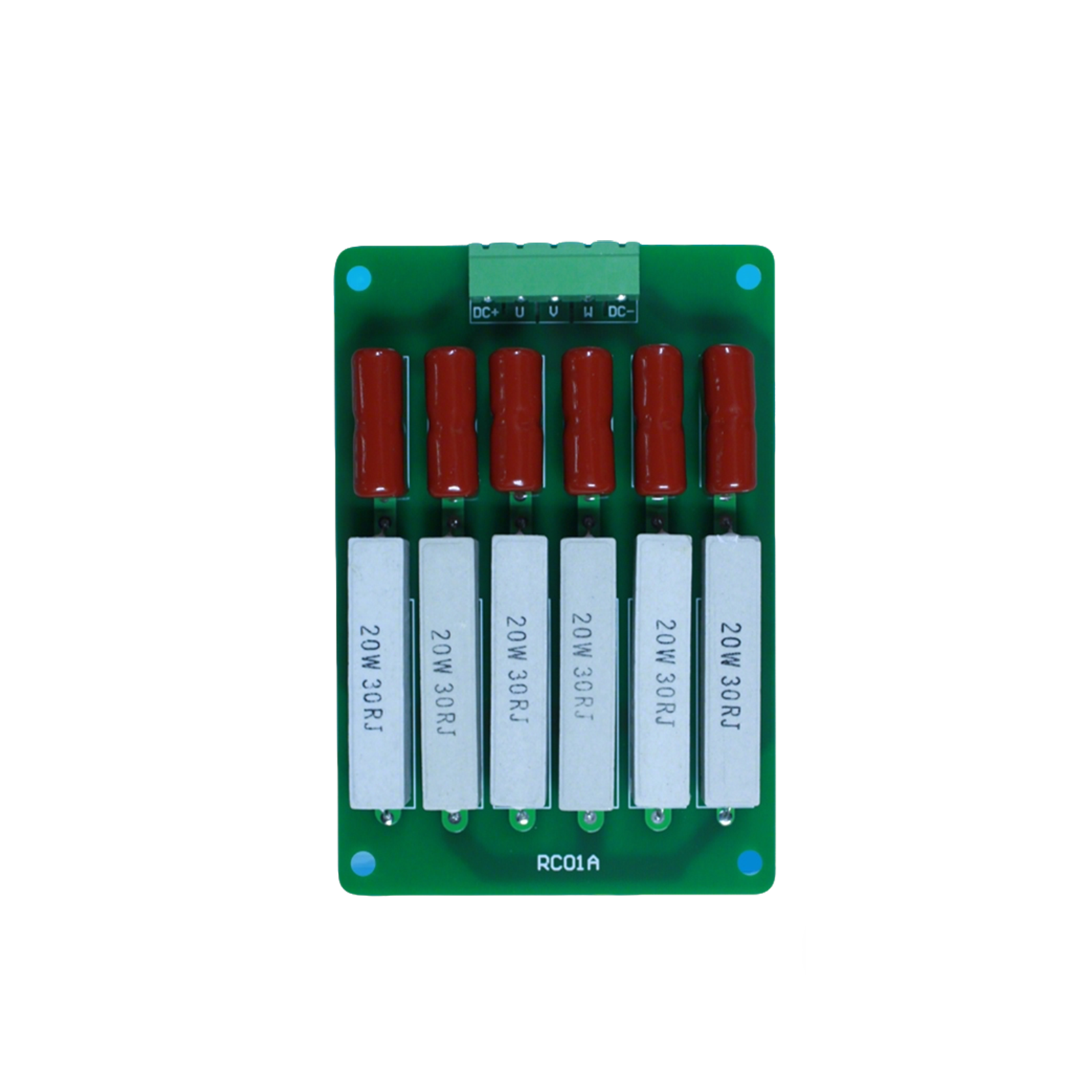

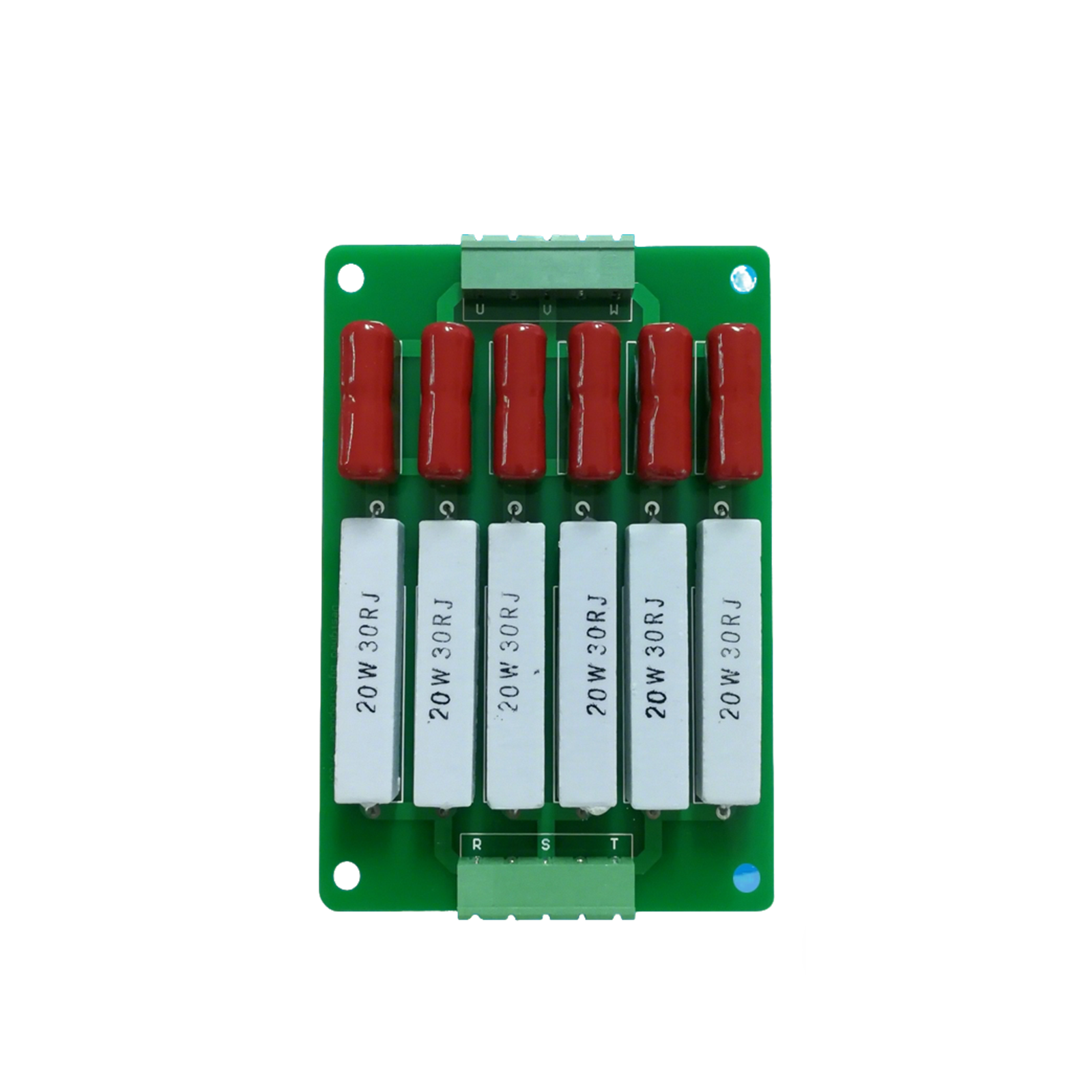

STP10 RC Snubber Module

This module integrates a three-phase RC snubber circuit for thyristor trigger boards, featuring 6 channels of snubber resistor-capacitor circuits for convenient wiring

Parameters can be configured based on thyristor model and operating environment

Default Parameters: Resistor 20Ω 20W, Capacitor 0.22μF 1600V

Dimensions: 150mm (L) × 100mm (W) × 25mm (H)

STP11 RC Snubber Module

This module integrates a three-phase RC snubber circuit for anti-parallel AC control trigger boards, featuring 3 channels of snubber resistor-capacitor circuits for convenient wiring

Parameters can be configured based on thyristor model and operating environment

Default Parameters: Resistor 20Ω 20W, Capacitor 0.44μF 1600V

Dimensions: 150mm (L) × 100mm (W) × 25mm (H)

STP23 Six-Pulse Trigger Module

This trigger pulse module is suitable for main circuit power supplies up to AC660V, for three-phase six-pulse rectification or AC voltage regulation control

The trigger module is powered by the main control board and is designed to be used with the ST33 main control board

Dimensions: 159mm (L) × 69mm (W) × 30mm (H).

Weight: 0.5Kg.

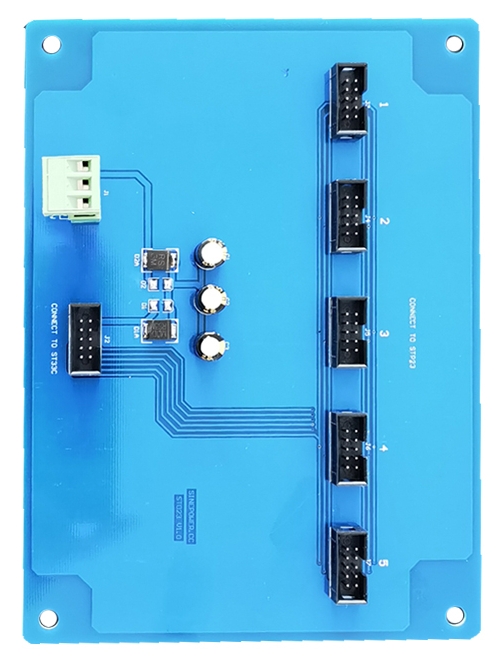

STP25 Trigger Extension Module

If high-power applications require multiple thyristors in parallel, the STP25 extension board can be used to drive multiple STP23 modules from a single source (one master driving multiple slaves)
