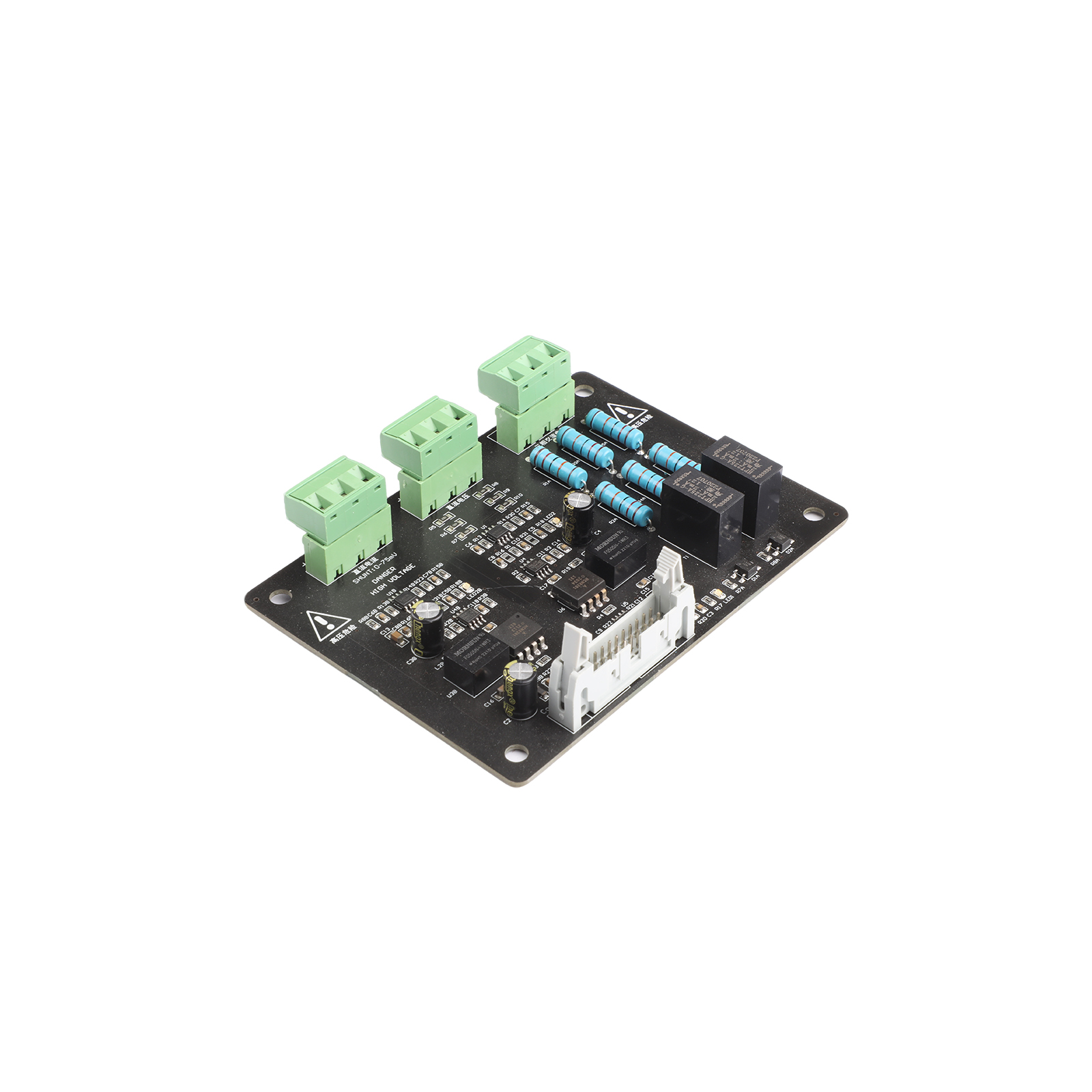

This ihgh voltage sampling module, suitable for SD/SF series main contol boards.

Insert DC/DC isolated power supply, no need external power supply

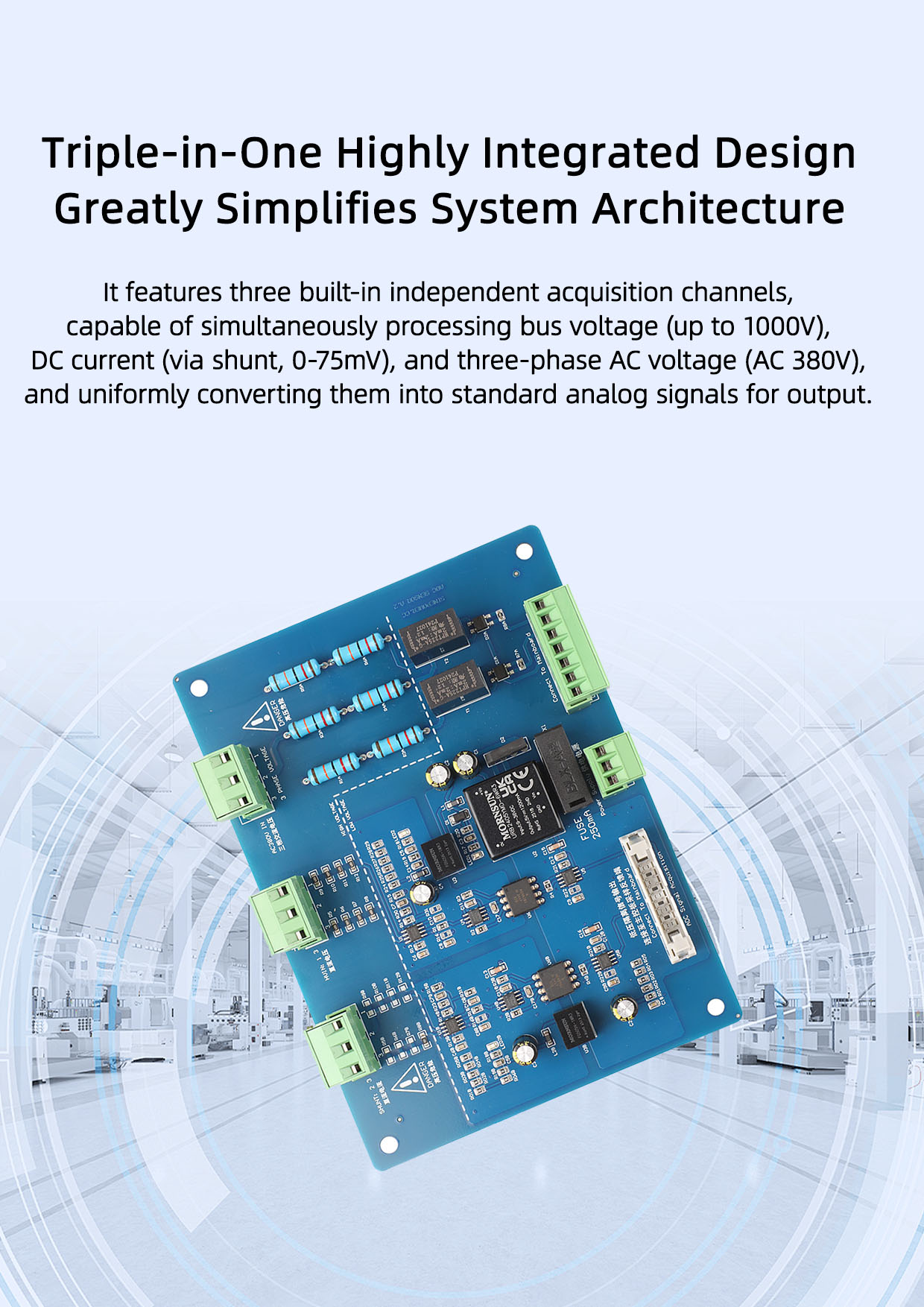

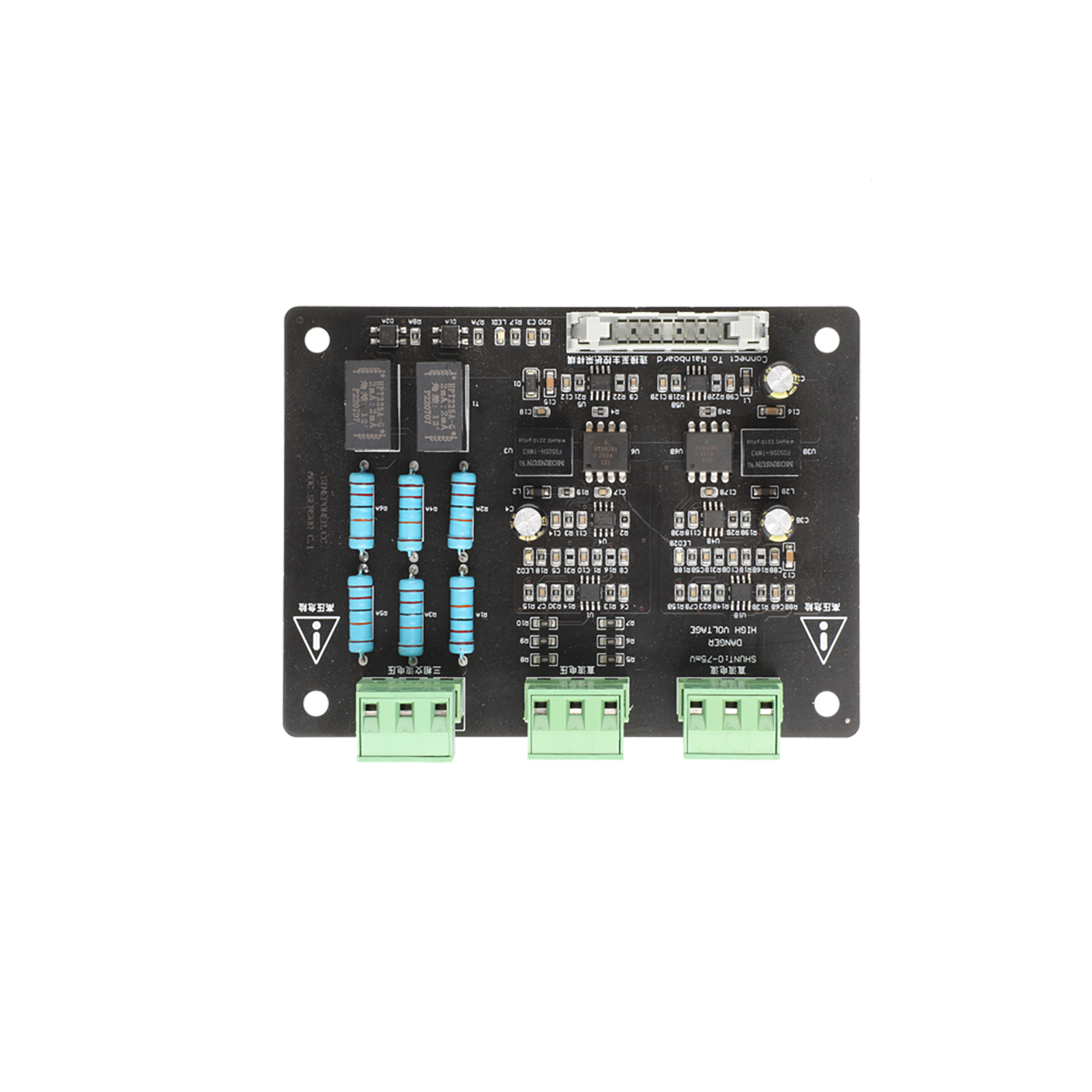

3 roads signal sampling: bus voltage signal, shunt signal, and 3 phase AC voltage

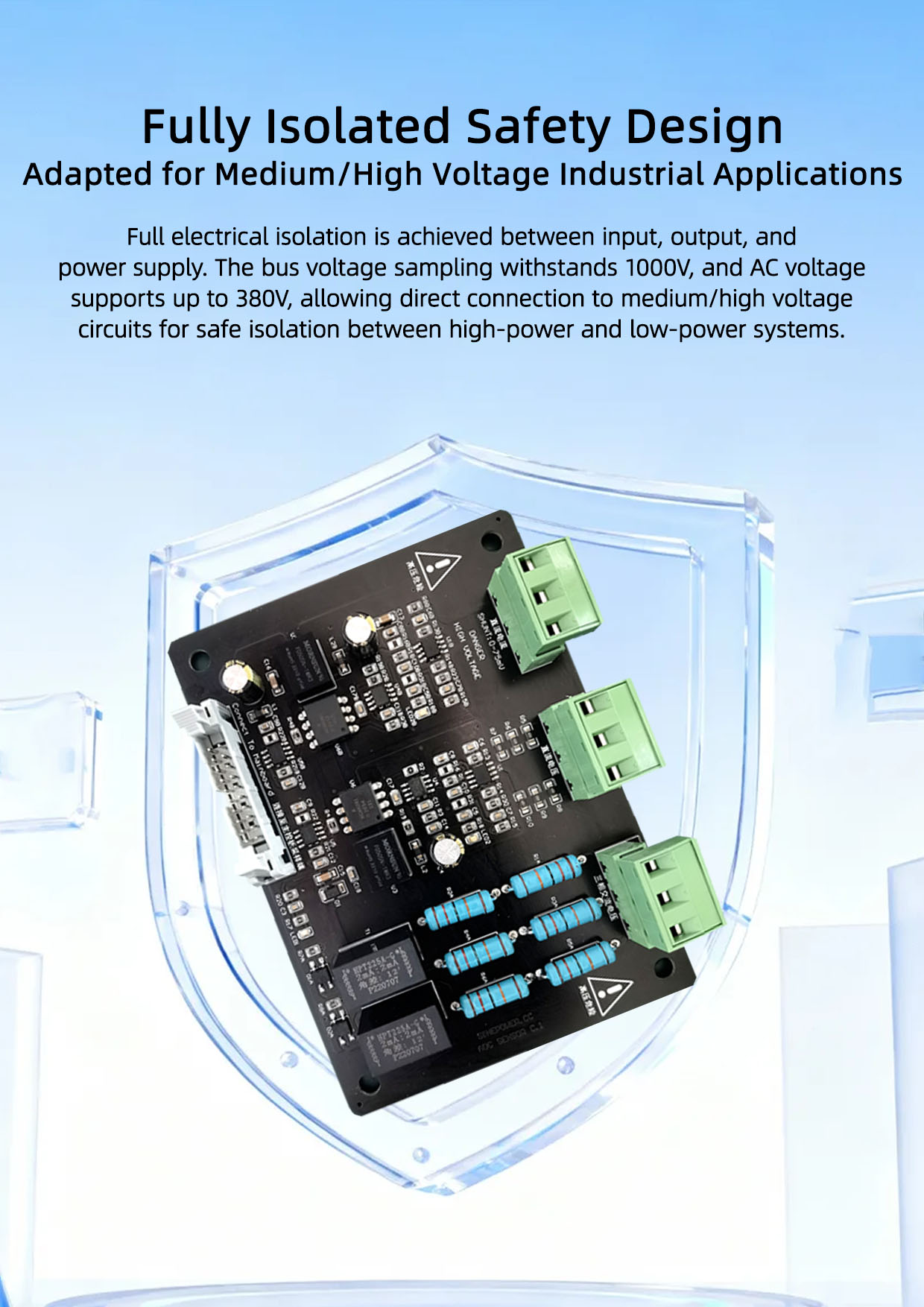

Input & output with isolation function, mainly used for SD310/510 series products.

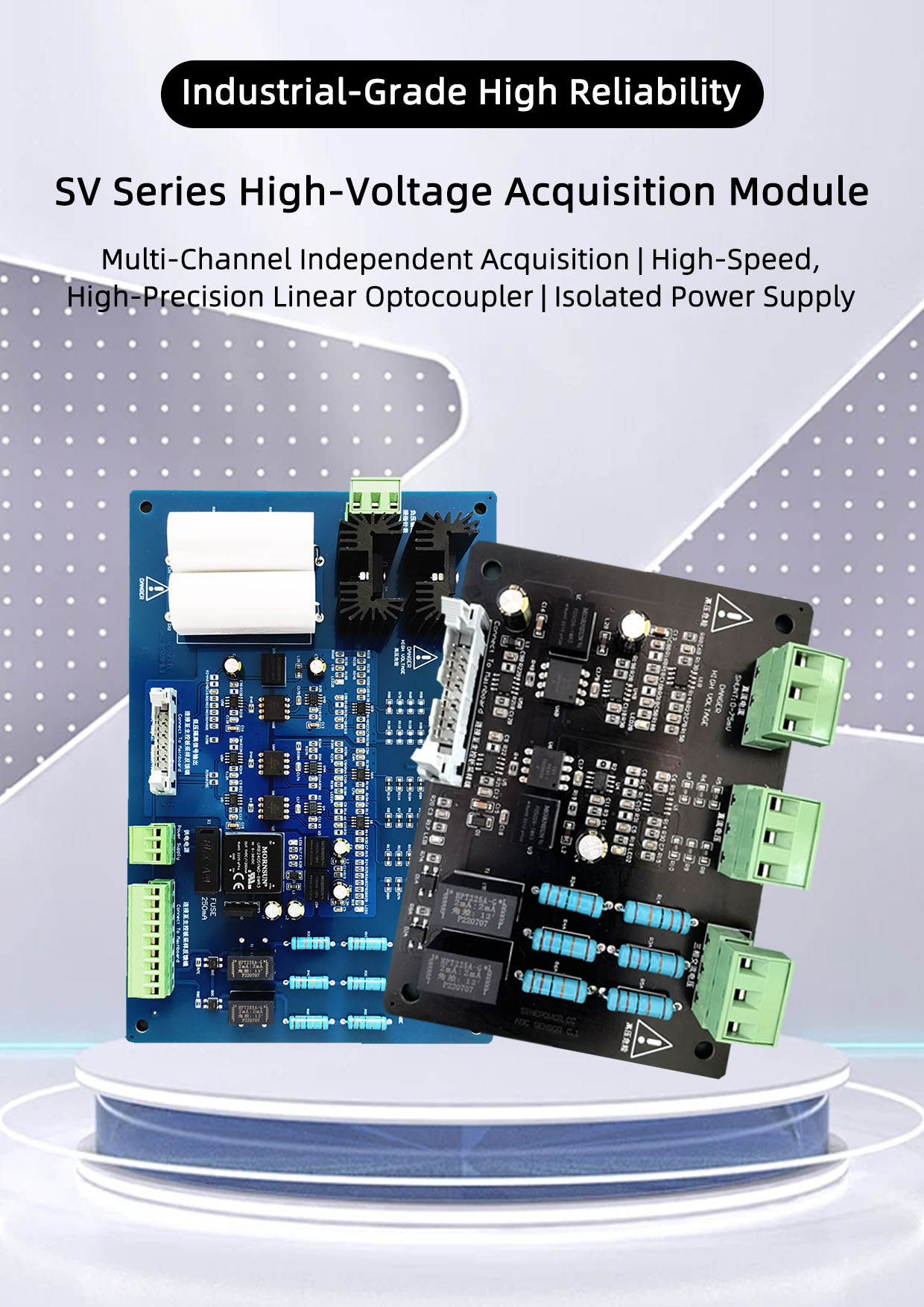

Insert with high speed high accuarcy linear optic, signal sampling frequency within 500k

Sampling bus voltage signal reaches 1000V, output DC0-5V

Sampling shunt signal is the shunt from the DC, 0-75mV signal, output DC0-5V

Sampling 3 phase AC voltage AC380V, output DC0-10V

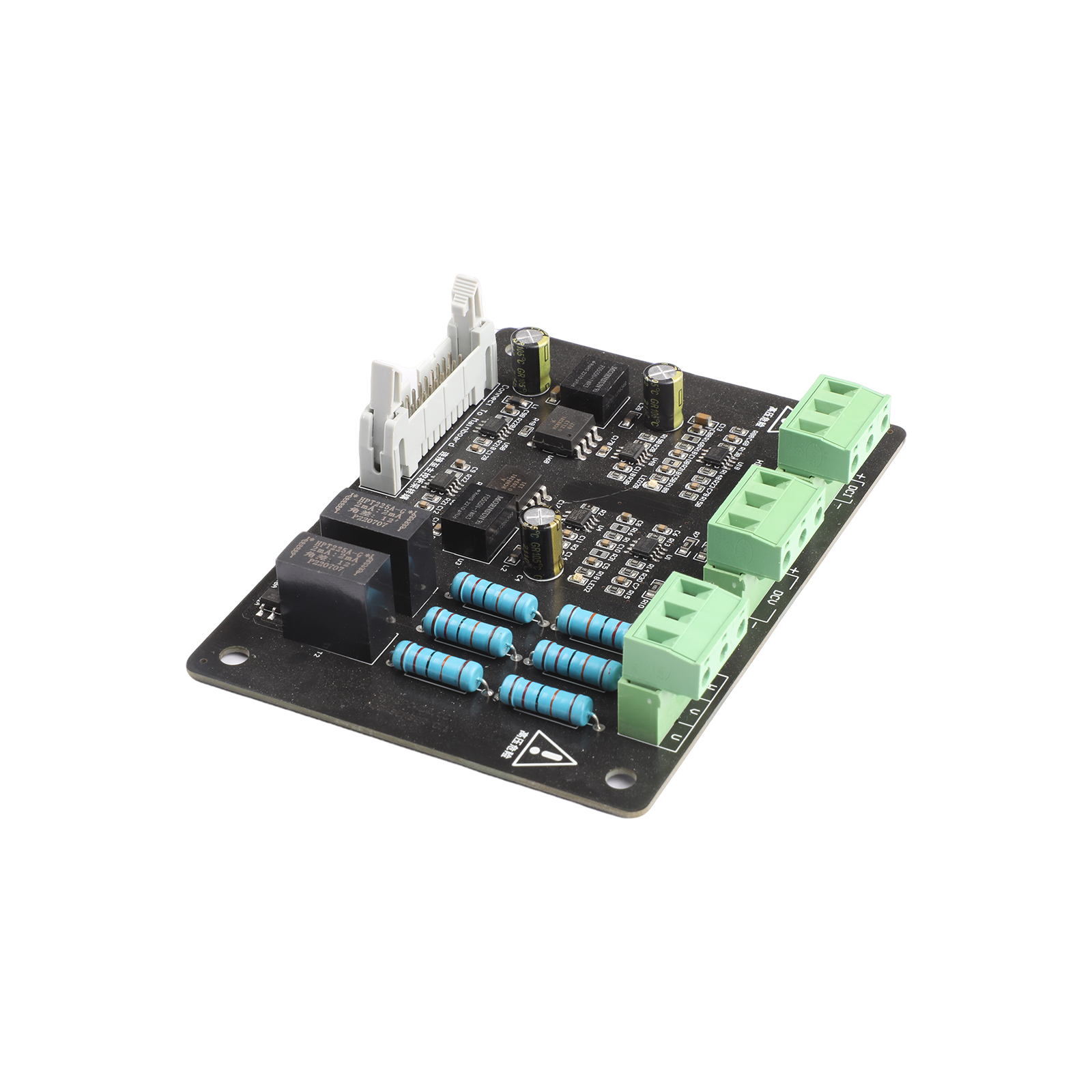

Dimension: 130 * 95 * 30 mm

Weight: 0.1Kg
