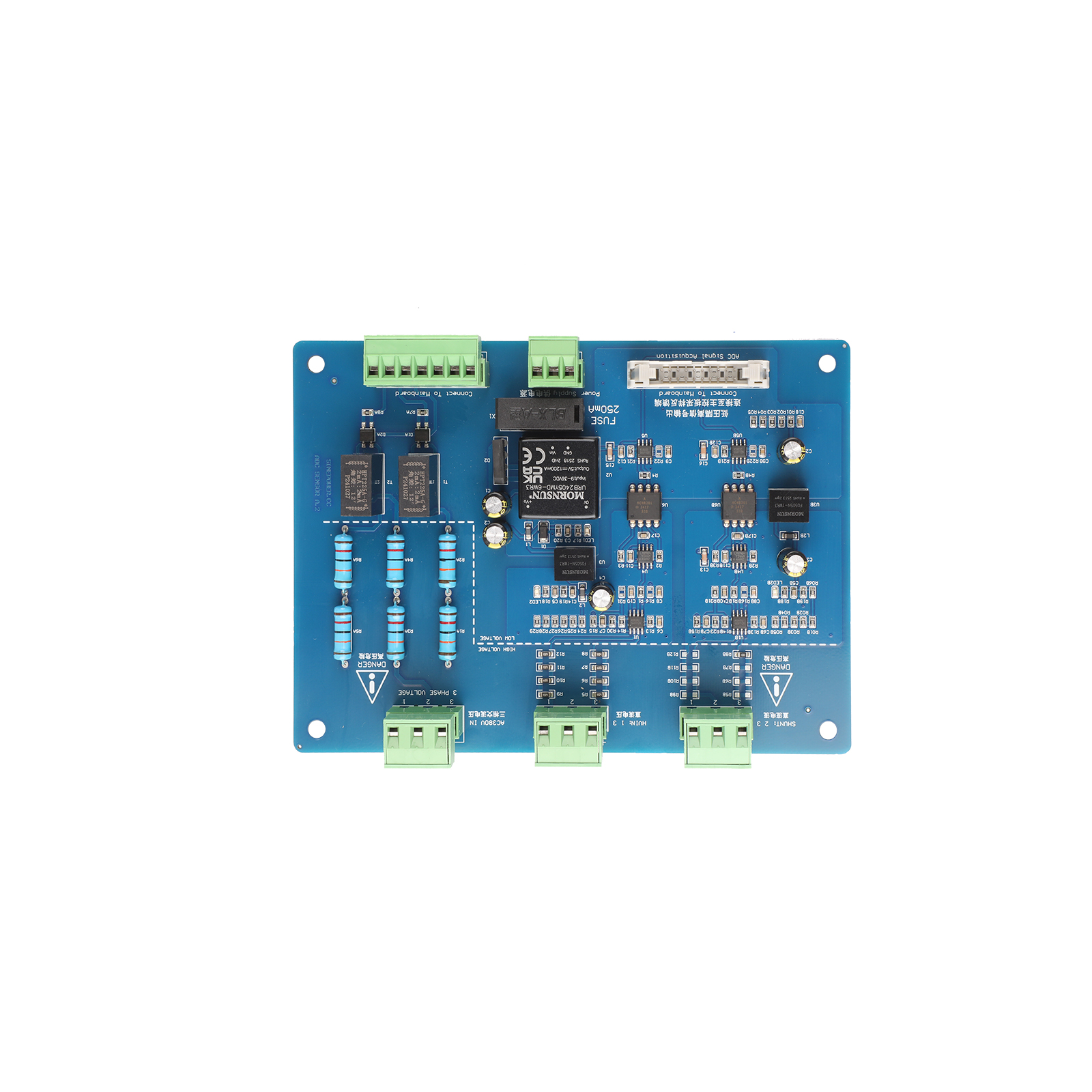

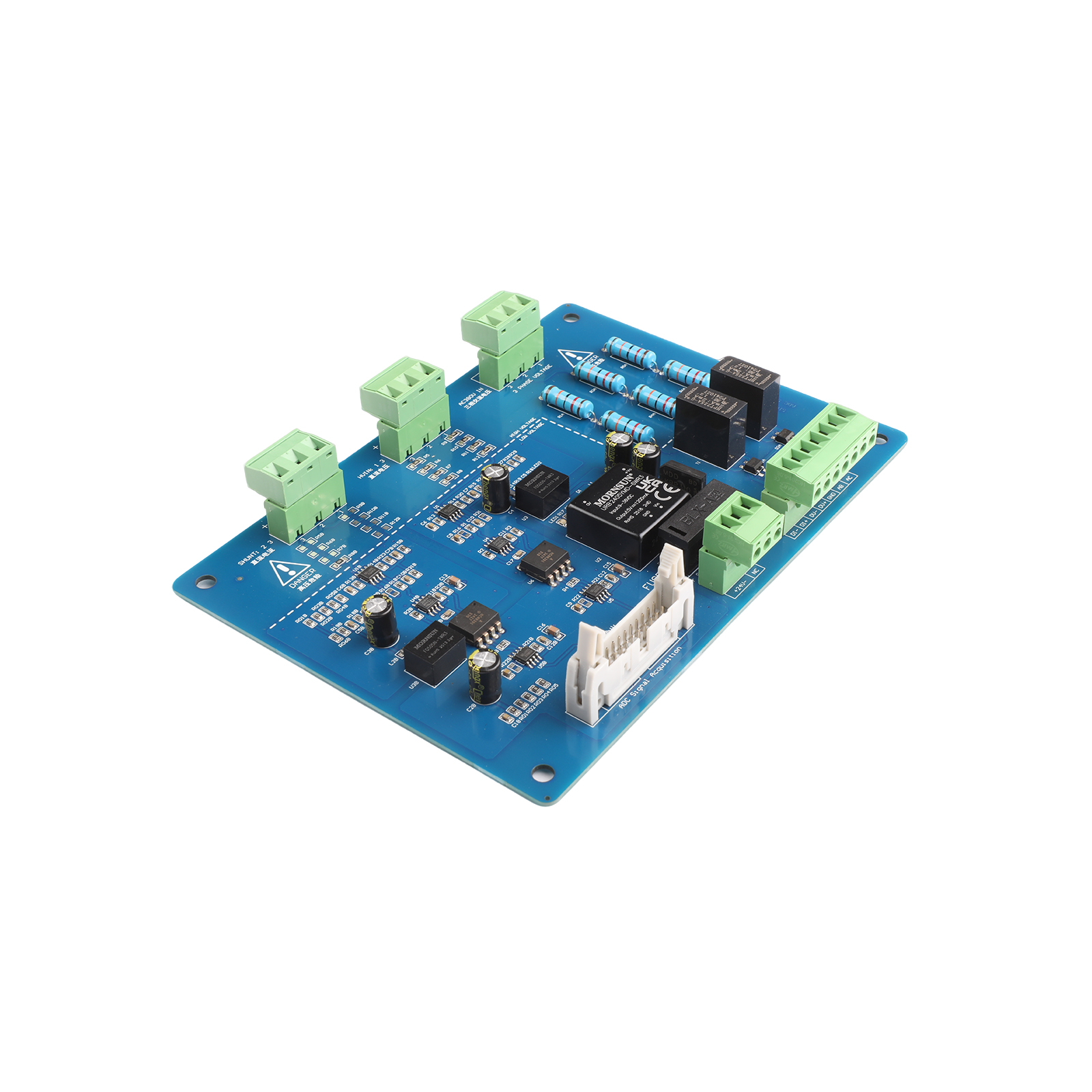

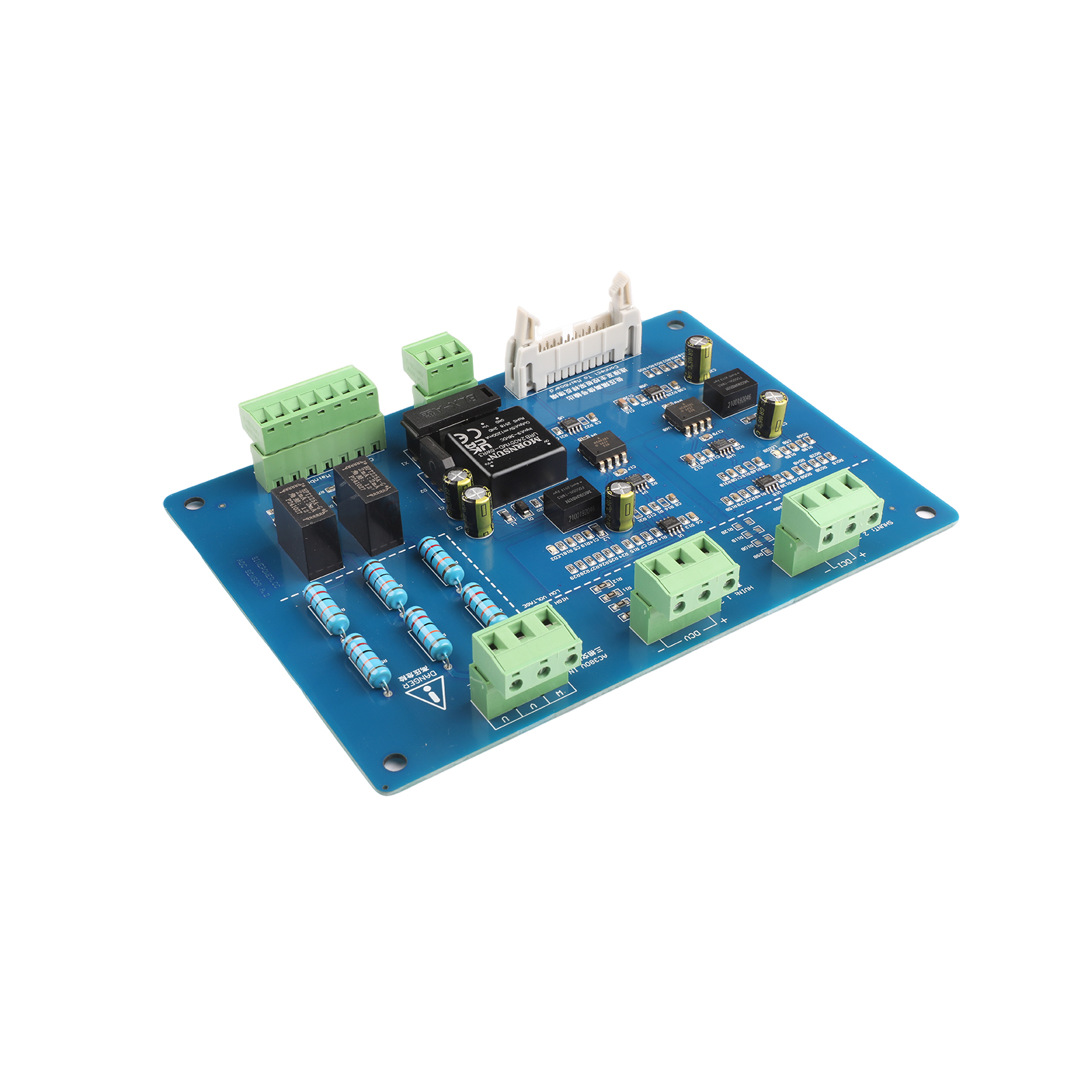

This high-voltage sampling module is suitable for using with SD/SF/ST series:

Built-in DC/DC isolated power supply, single power supply 24V power supply

Three-way signal acquisition: bus voltage signal, shunt signal and three-phase AC voltage

Input and output with isolation function, matching with SD/SF/ST series product models

Built-in high-speed and high-precision linear optical coupling, sampling frequency within 500K

Sampling bus voltage signal up to 1000V, output DC0-5V

The sampling shunt signal is a shunt at the DC end, 0-75mV signal, output DC0-5V

Sampling three-phase AC voltage AC380V, output DC0-1V

Dimensions: 180X130X20mm

Weight: 0.12Kg
