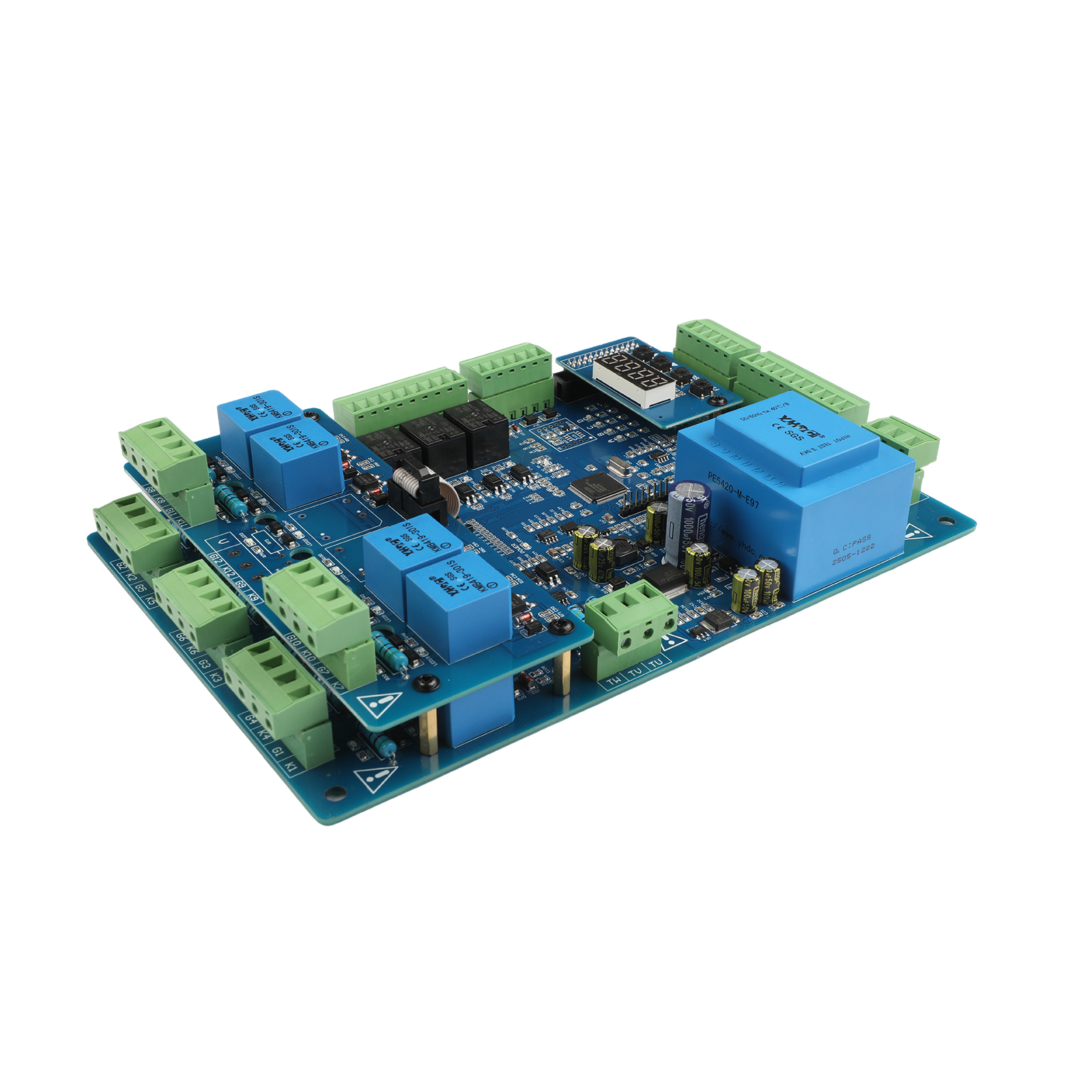

STA88 permanent electromagnet chuck control board is with 10 pulse trigger control output, magnetizing and demagnetizing operation, 32-bit industrial grade high-performance microprocessor and high digital safety standard design. It is used for high-power permanent electromagnet control occasions. The fault alarm and interface parameters are displayed by LED digital tube menu, and the parameters are automatically stored after setting. The control board has phase loss protection, undercurrent protection, over current protection, and working status indication, etc. The control process is uses three phase full control bridge type magentizing and single phase full control bridge type demagnetizing to achieve permanent electromagnet control. It can trigger thyristors under 1000A, and with conformal coating protection.

Features:

◆ 32-bit industrial grade high speed microprocessor, LED digital tube menu display;

◆ Magnetization voltage/time, demagnetization voltage/time and other parameters can be adjusted on site;

◆ The control board has functions such as phase loss protection, undercurrent protection, overcurrent protection, and working status indication;

◆ The suction timeout function is set to prevent false triggering of long-term output voltage from damaging the suction cup;

◆ With demagnetization button interlock control function;

◆ Users can set the constant current mode output control, and the output current will not affected by the grid (in constant current mode);

◆ The control mode has one-button self-locking or double-key jog control (remote control), and users can select by themselves;

◆ With automatic identification phase sequence function, there is no phase sequence requirement for the power supply of the control board, no debugging, convenient wiring;

◆ Product with safety design, CE certification and quality assurance, you will find that you can save your time and maintenance costs;

◆ Fully automatic SMD process manufacturing, stable and reliable performance, mature application;

◆ Power transformer adopts military grade quality transformer, epoxy resin potting, high quality products tempered by high temperature aging;

◆ The main control chip adopts NXP 32-bit industrial-grade high-performance processor, which has superior computing processing capability and reliable anti-interference ability;

◆ Passive devices use Murata Murata and Infineon Infineon brands to ensure that key parts of the control panel are not easily damaged;

◆ All output ports and digital input ports are electrically isolated to provide better electromagnetic interference protection.

Technical specifications:

◆ Working power supply: 380Vac ±15% 50/60HZ

◆ Main circuit working voltage: 220～380Vac ±15% 50/60HZ

◆ Display adjustment mode: LED digital tube menu setting

◆ Magnetization voltage adjustment range: 1 ~ 220V

◆ Demagnetization voltage adjustment range: 1 ~ 220V

◆ Phase shift range: 0-176°

   Adjust output resolution: 1/4000

   Stability accuracy: better than ±1%  or 1V

◆ Trigger current: ≥ 600mA

   Trigger capacity: ≤ 1000A  thyristor

◆ Three-phase trigger imbalance: ≤ 0.3°

◆ Alarm relay contact capacity: 250Vac/10A

◆ Dielectric strength: 3500 VRMS

◆ Working environment temperature: -20 ° C ~ 60 ° C

   Relative humidity: ≤ 90% RH (no frost)

◆ Dimensions: 240x160x50mm, Install size: 225x145mm

◆ Weight: 1.2KG
