· Product Introduction

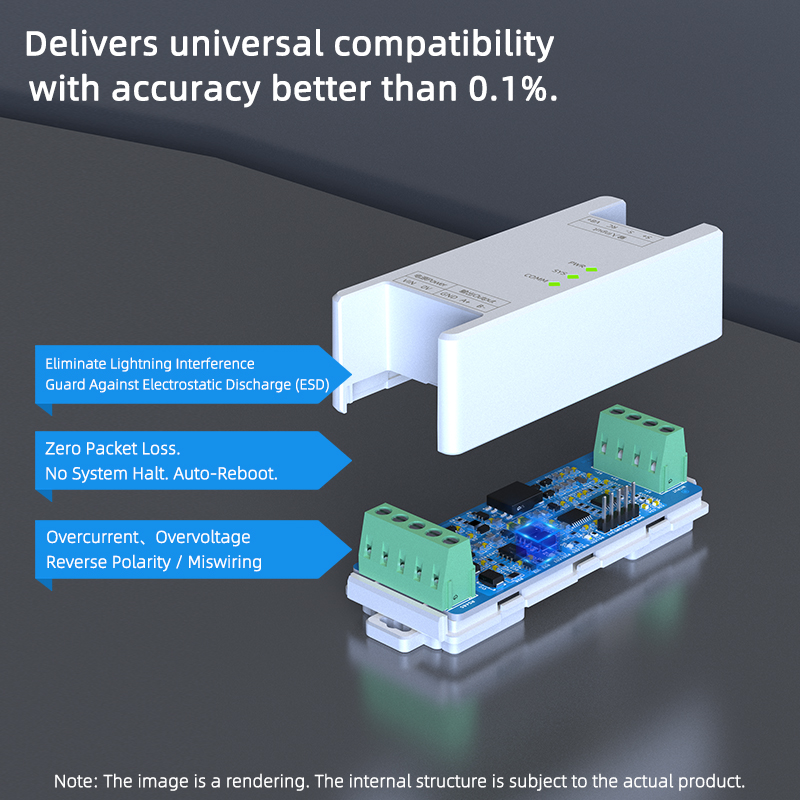

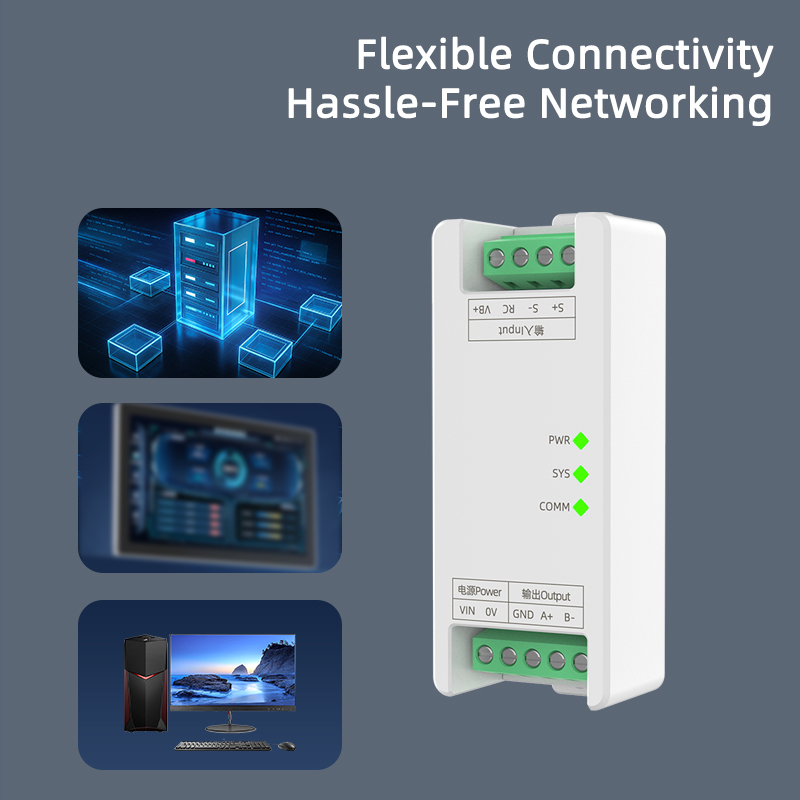

The SPE electrical energy signal data acquisition module is meticulously designed based on a new generation of embedded systems. Equipped with an isolated communication interface, it can communicate independently with a PC or PLC, or be networked with multiple communication modules. It also features a transient suppression circuit that effectively suppresses various surge pulses, ensuring reliable operation in harsh environments.

The SPE6-NA series frequency signal acquisition module acquires frequency signals through a single channel and is equipped with an RS485 communication interface. The module uses an internal high-precision timer to acquire data, achieving a resolution of up to 16 bits and a measurement accuracy of better than 0.1%. The power supply, input, and communication output are isolated, making it suitable for collecting a variety of electrical energy signals in industrial settings and meeting the high measurement requirements of industrial sites, medical electronics, security monitoring, smart buildings, smart homes, power monitoring, and process control.

This product requires an independent power supply and is mounted on a standard 35mm DIN rail, offering simple on-site installation and flexible use, suitable for a variety of field applications.

· Basic Parameters

Power Supply DC12～36V(DC24V recommended)

Power Consumption ＜1.5W

Measurement Accuracy ±0.02%F.S（+25℃）

Temperature Drift ≤200ppm/℃

Response Time ≤0.5s

ESD Protection ±15KV

Isolation Voltage 3000VDC

Power Protection Reverse connection voltage< -40V

Dielectric Strength 1500 VAC / 1 minute(Power, Input, Output)

Insulation Resistance 100MΩ (power, input, output)

EMC Compatibility Complies with GB/T18268.1 (IEC61326-1)

Applicable Field Devices Configuration software, PLCs, touch screens, computers, and other devices supporting the MODBUS-RTU protocol

· Input Terminal

Input Signal Sine Wave, Square Wave

Input Method Three-wire NPN/PNP sensor, active frequency signal, dry contact signal, two-wire proximity switch

Number of Channels 1 Channels

Frequency Range 1-100 kHz. Input range refers to the product name

Input Amplitude 0.5~100 Vpp

Power Supply Voltage +24V ±10%

· Output Terminal

Output Signal RS-485 communication signal

Communication Protocol Standard MODBUS-RTU protocol

Communication Distance 1200m (typical)

· Environmental Conditions

Operating Temperature -40℃～+80℃

Storage Temperature -40℃～+85℃

Relative Humidity 10%～90%RH (non-condensing)

Atmospheric Pressure 80kPa～106kPa
