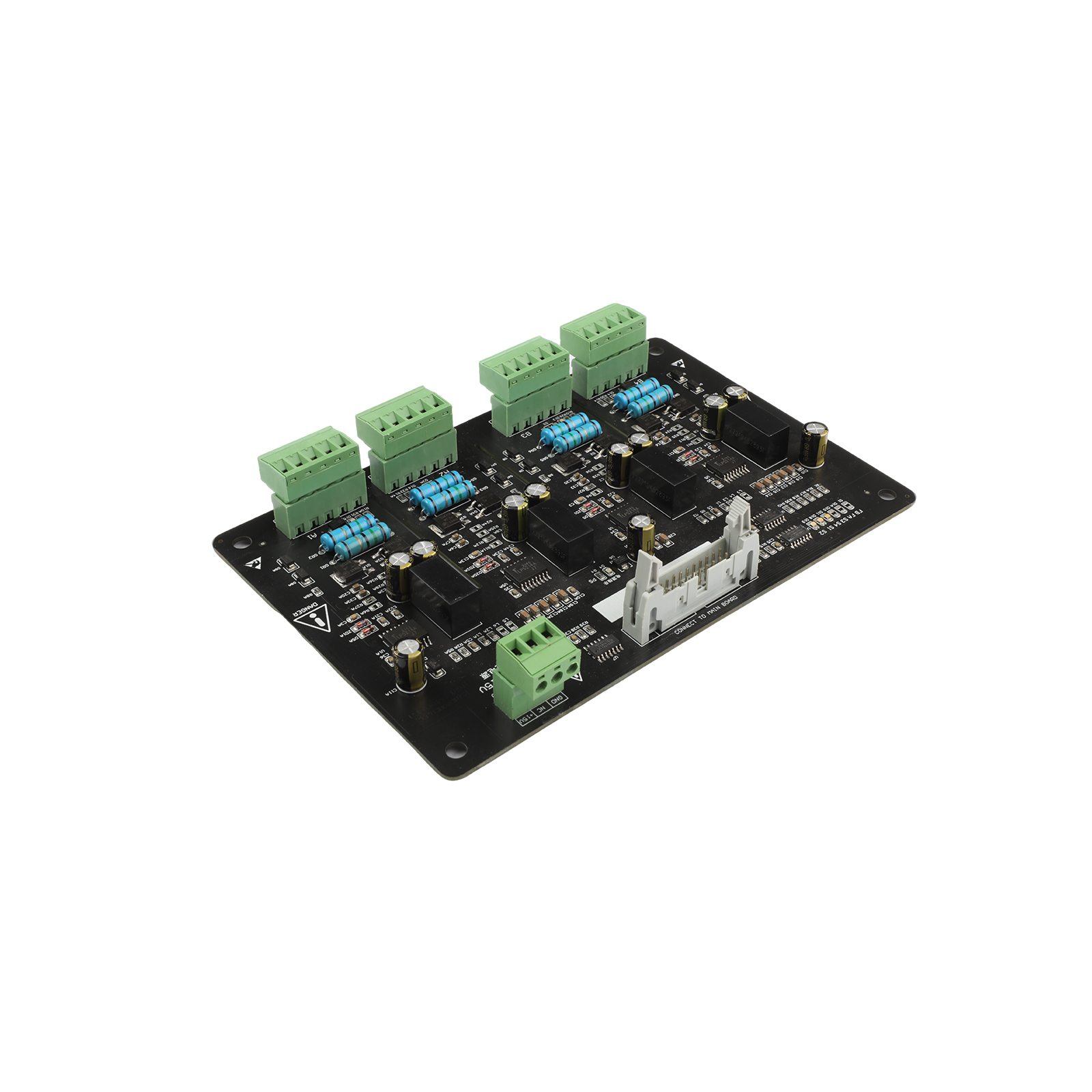

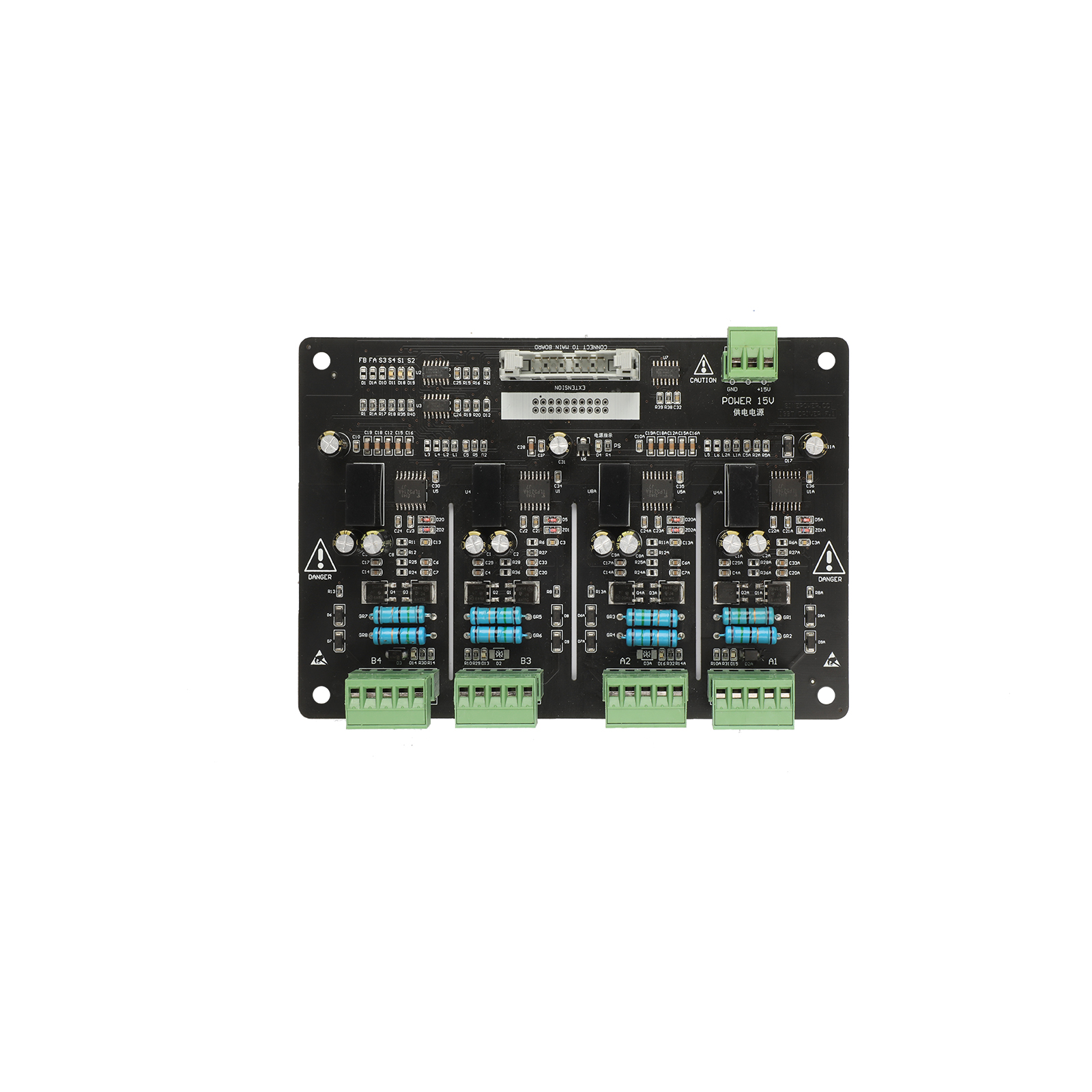

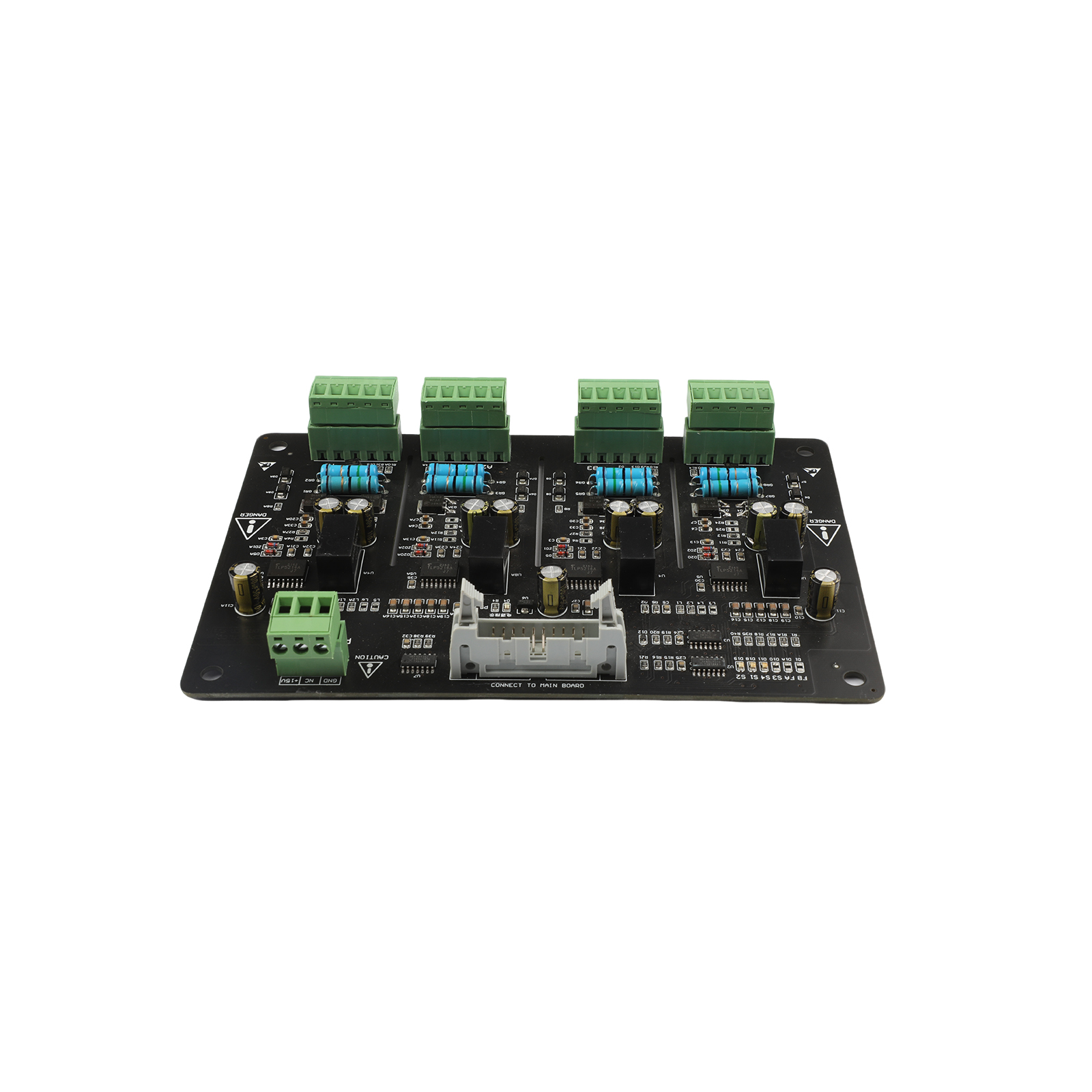

Single 15V power supply, with a switching power supply of 50W or higher recommended.
Built-in branded isolated power supply, single-channel output power of 2.4W, peak current of ±4A.
Full-bridge inverter control design, directly driving four-channel IGBT signals, with expansion interfaces reserved.
Power status, drive signals, and fault signals are indicated by LEDs for clear and immediate operational visibility.
5.0KV electrical isolation between primary and secondary sides, ensuring safety and reliability.

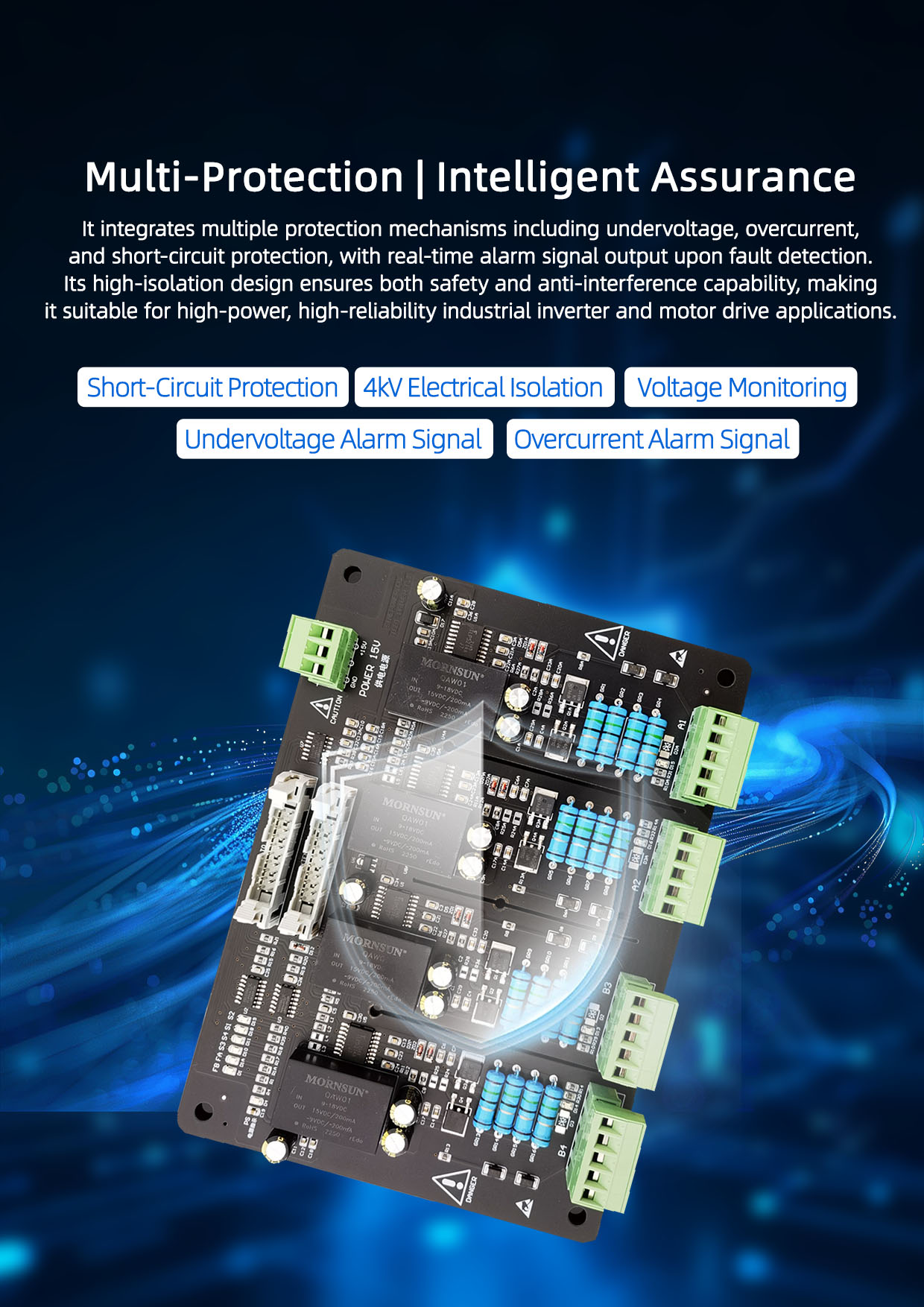

Desaturation detection short-circuit protection and power supply undervoltage protection functions.
Upper and lower tube short-circuit prevention output design prevents false triggering and avoids IGBT failure.
Drive switching frequency up to 60KHz (higher drive frequencies correspond to smaller driven IGBT module capacities).
Dimensions: 180 x 120 x 30 mm.
Mounting cutout dimensions: 165 x 105 mm.
