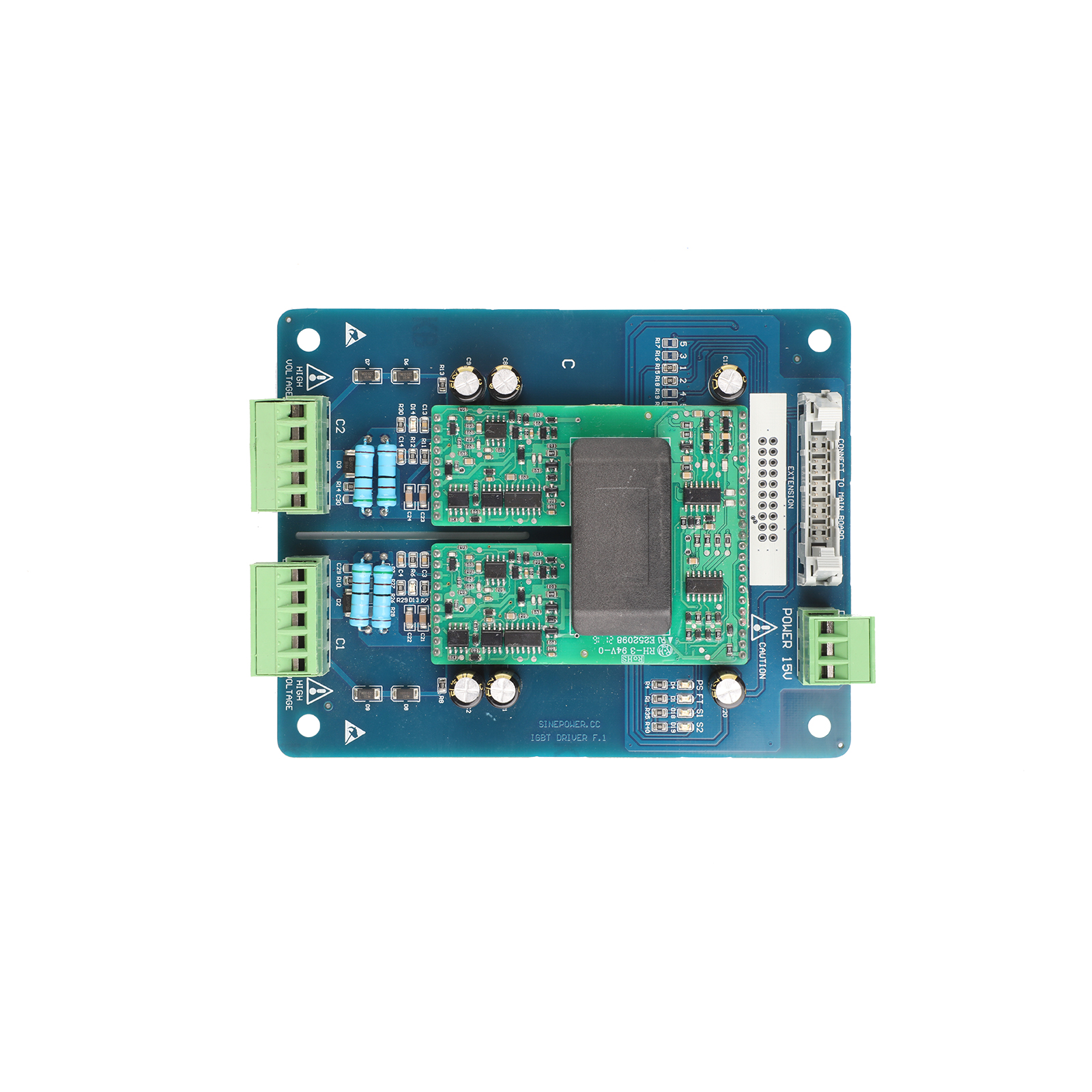

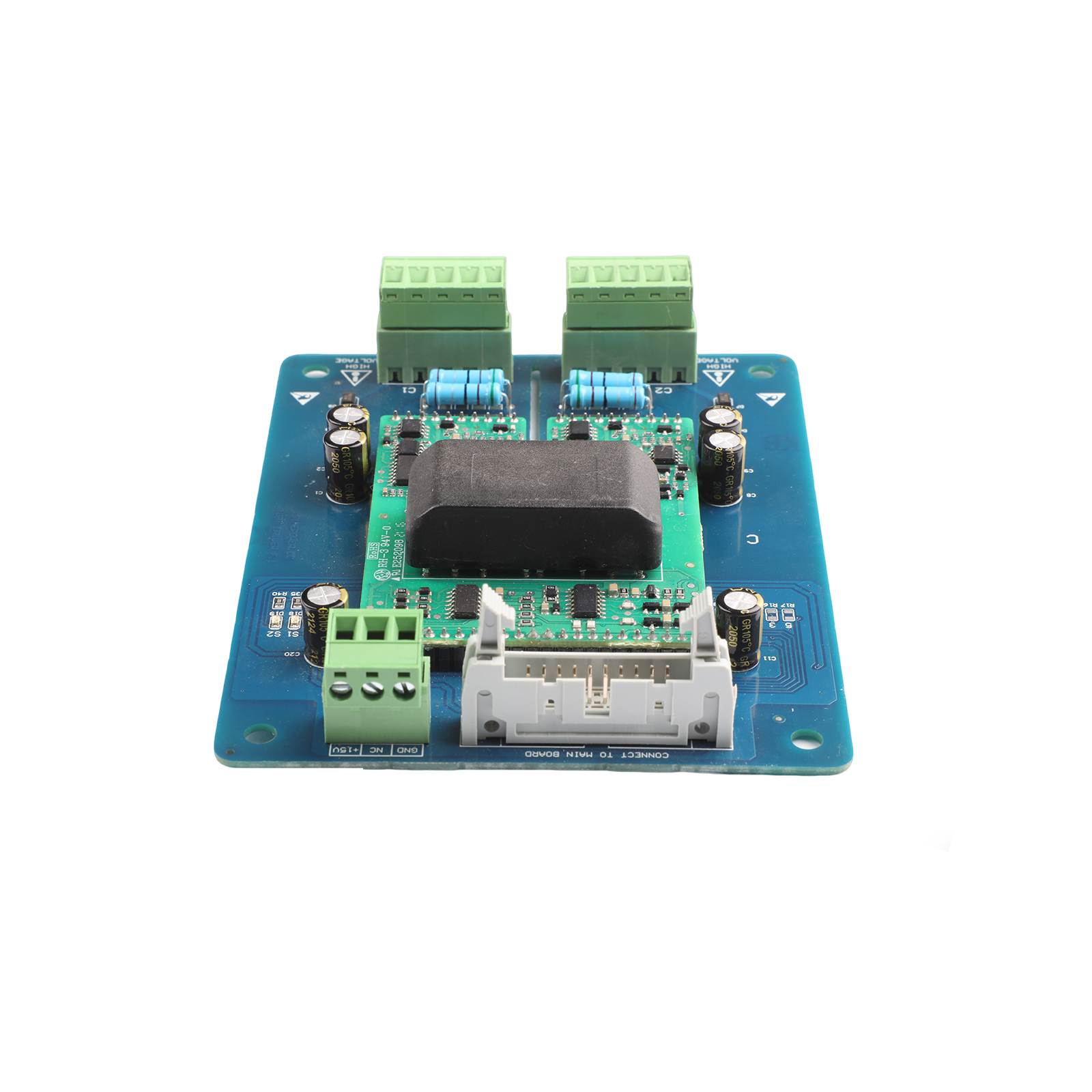

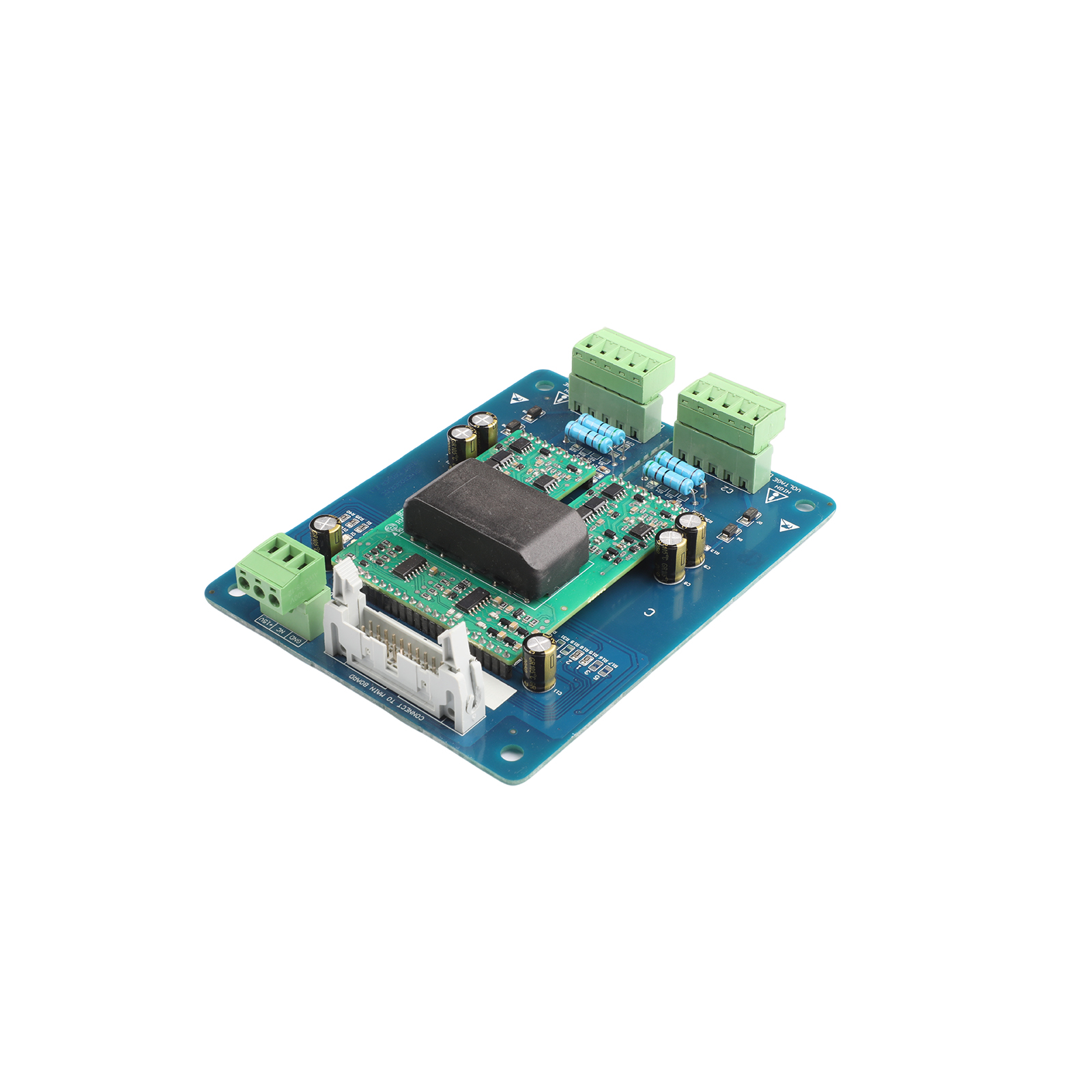

SK604 series driver modules have a variety of driver core designs: SK604A/SK604B/SK604C
SK604B drive module is suitable for the matching use of SF/SD series:
External AC/DC isolated power supply, single power supply 15V power supply
Adopt brand IGBT driver core, single channel 4W output power, peak current is ±30A
Half-bridge drive control design, directly drive two-way signal IGBT, retain expansion interface
The driving signal and fault signal are indicated by LED, and the working condition is clear at a glance
Using high isolation voltage (4500Vrms, 1 minute)
Mainly used for half-bridge drive or chopper power regulation drive control
Drive power supply under-voltage protection function
Output soft shutdown and timing reset function in overcurrent fault
Drive switching frequency up to 60KHz
The user does not need to invest the effort to debug the driver for a specific application
Dimensions: 137 * 106 * 30mm
Weight: 0.15g
