Suitable for SD series board to use.

1. Single power supply 15V (power 150W) power supply, external AC/DC isolated power supply

2. Using brand IGBT driver core, single channel 4W output power, peak current of ±35A

3. Full-bridge inverter control design, directly drive four-channel signal IGBT, reserve expansion interface

4. The driving signal and fault signal are indicated by LED, and the working conditions are clear at a glance

5. 5KV electrical isolation on the original and secondary side, safe and reliable

6. With short-circuit protection, active clamping and power supply voltage monitoring functions

7. Unique anti-IGBT explosion tube design

8. Output alarm signal when under voltage and over current fault

9. Suitable for driving medium and high power IGBT

10. The driving switching frequency is up to 100KHz (the higher the driving frequency, the smaller the capacity of the driven IGBT module will be correspondingly.

11. Dimensions: 200 * 160 * 38mm

Recommended products:

600V series IGBT (current≤1000A)

1200V series IGBT (current≤800A)

1700V series IGBT (current≤600A)

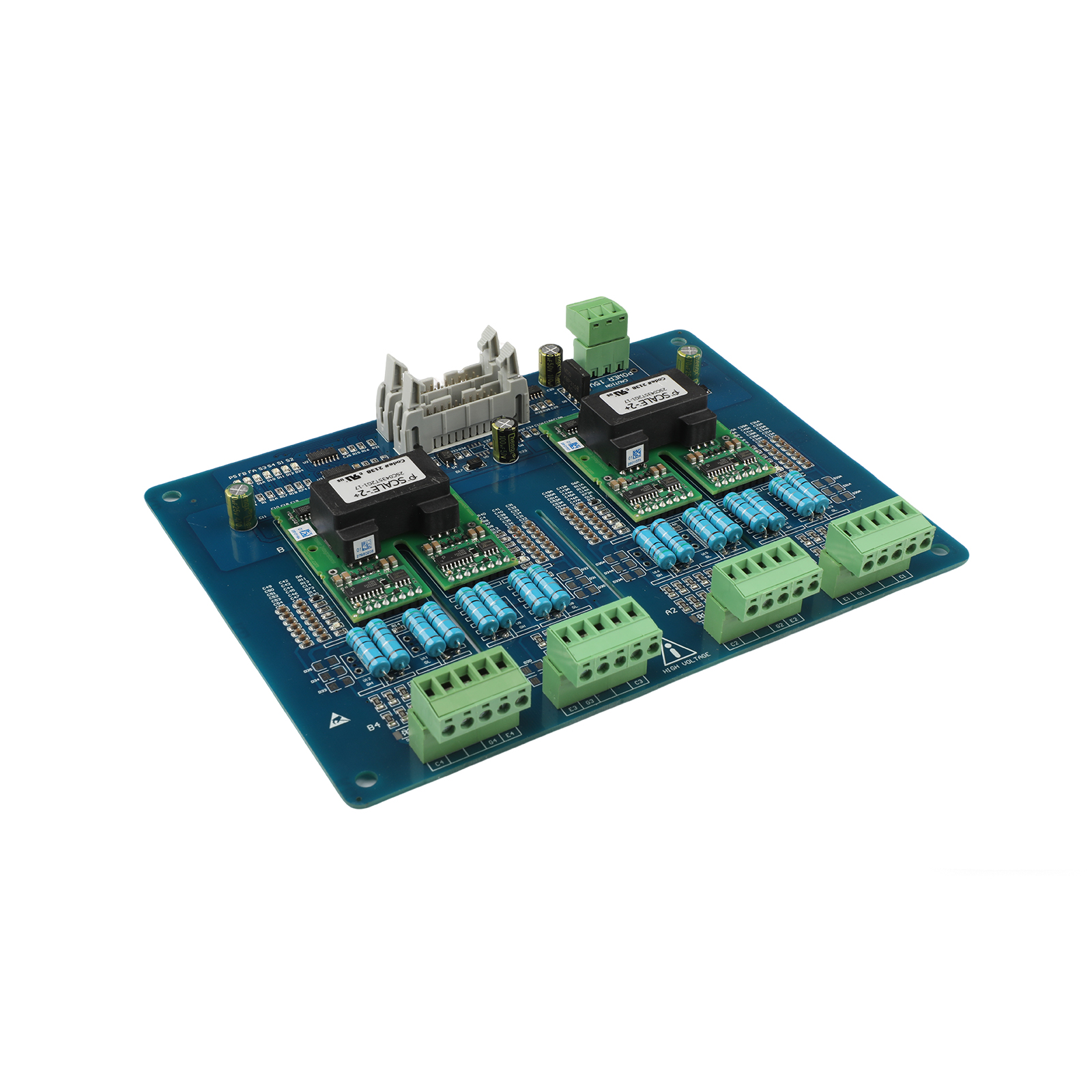

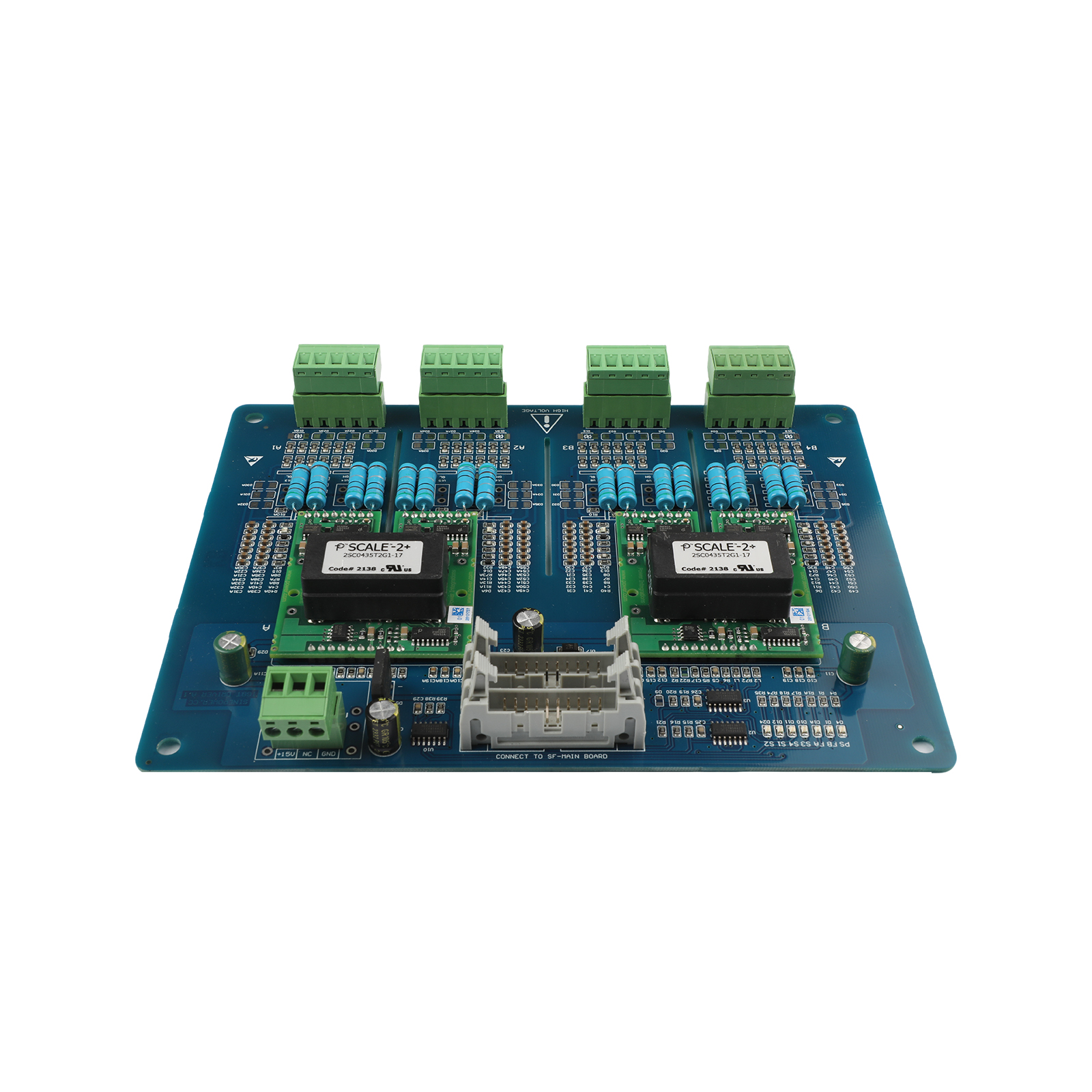

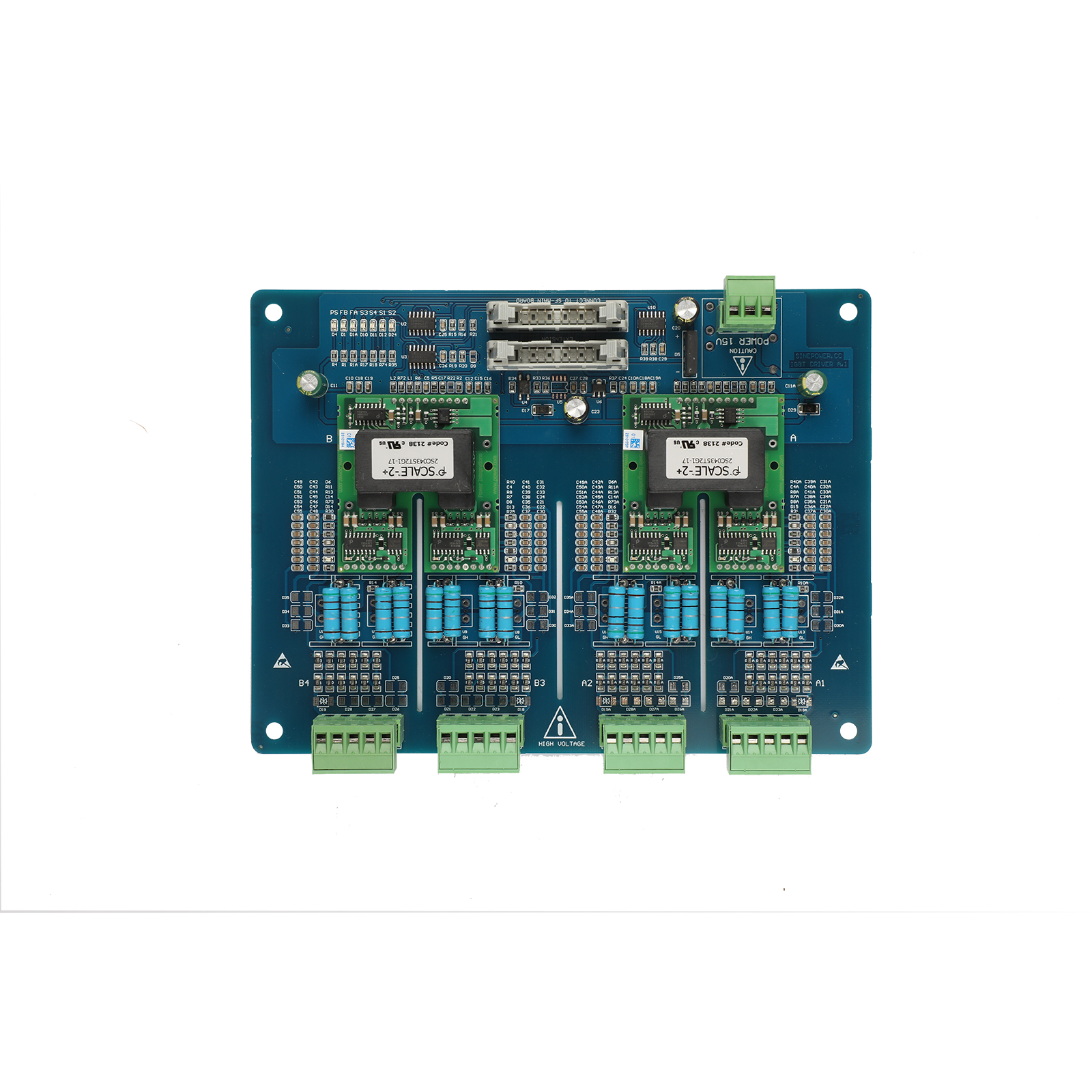

Special tips: If the high-power IGBT module is driven when the working frequency is high, the subsequent drive mode will adopt the actual product shown in the figure below, model: SK600B
