· Product Introduction

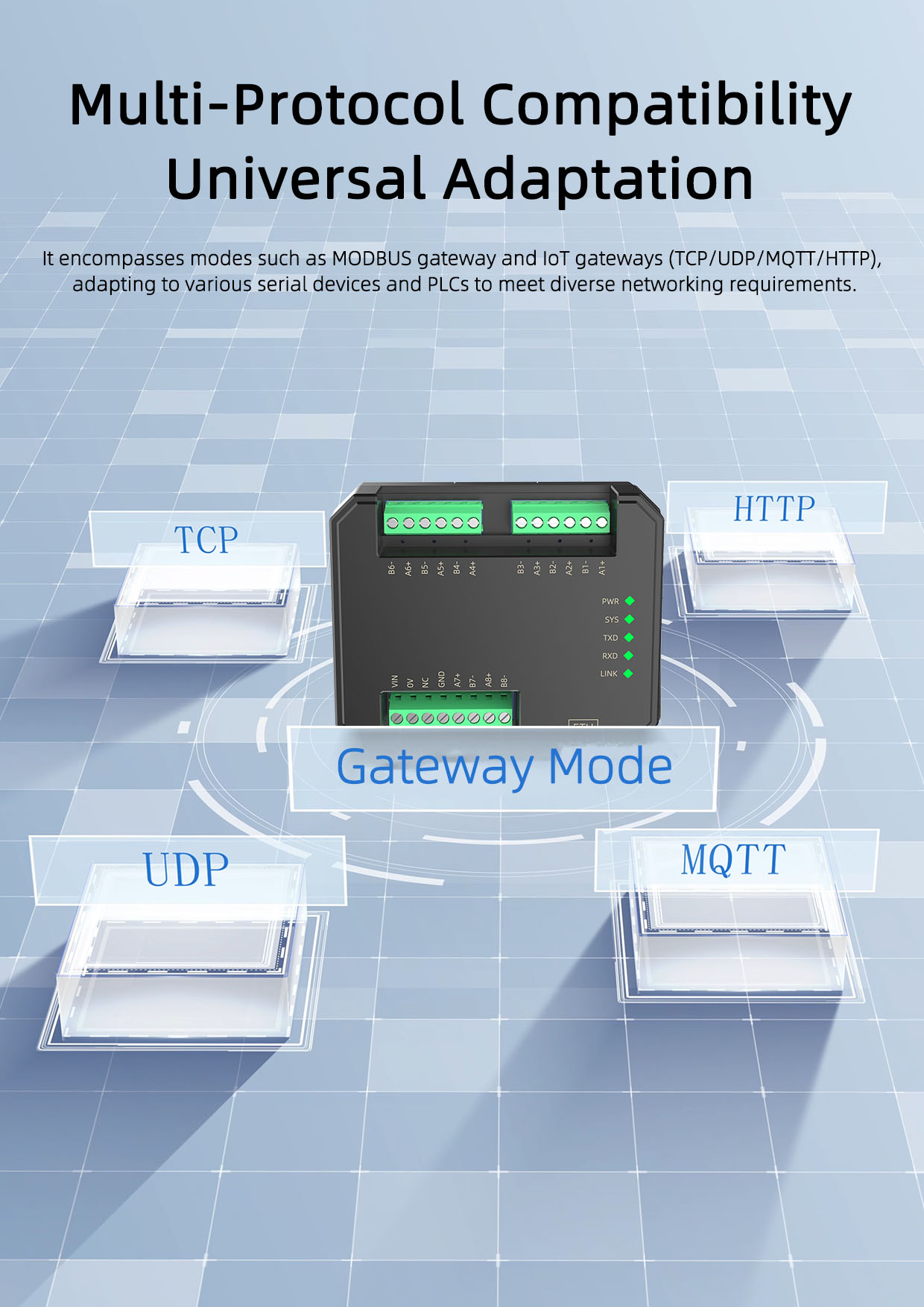

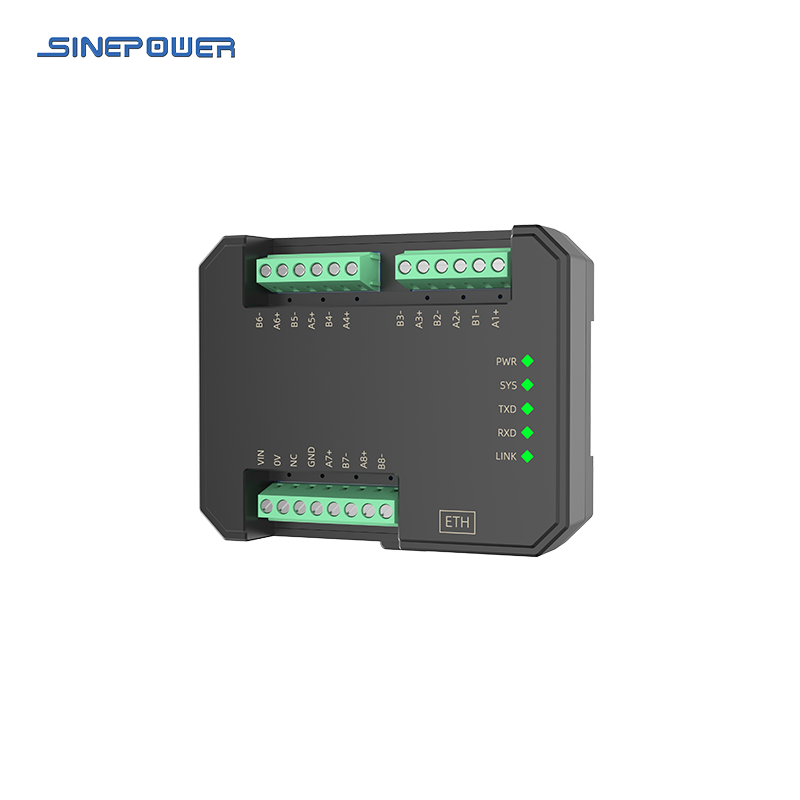

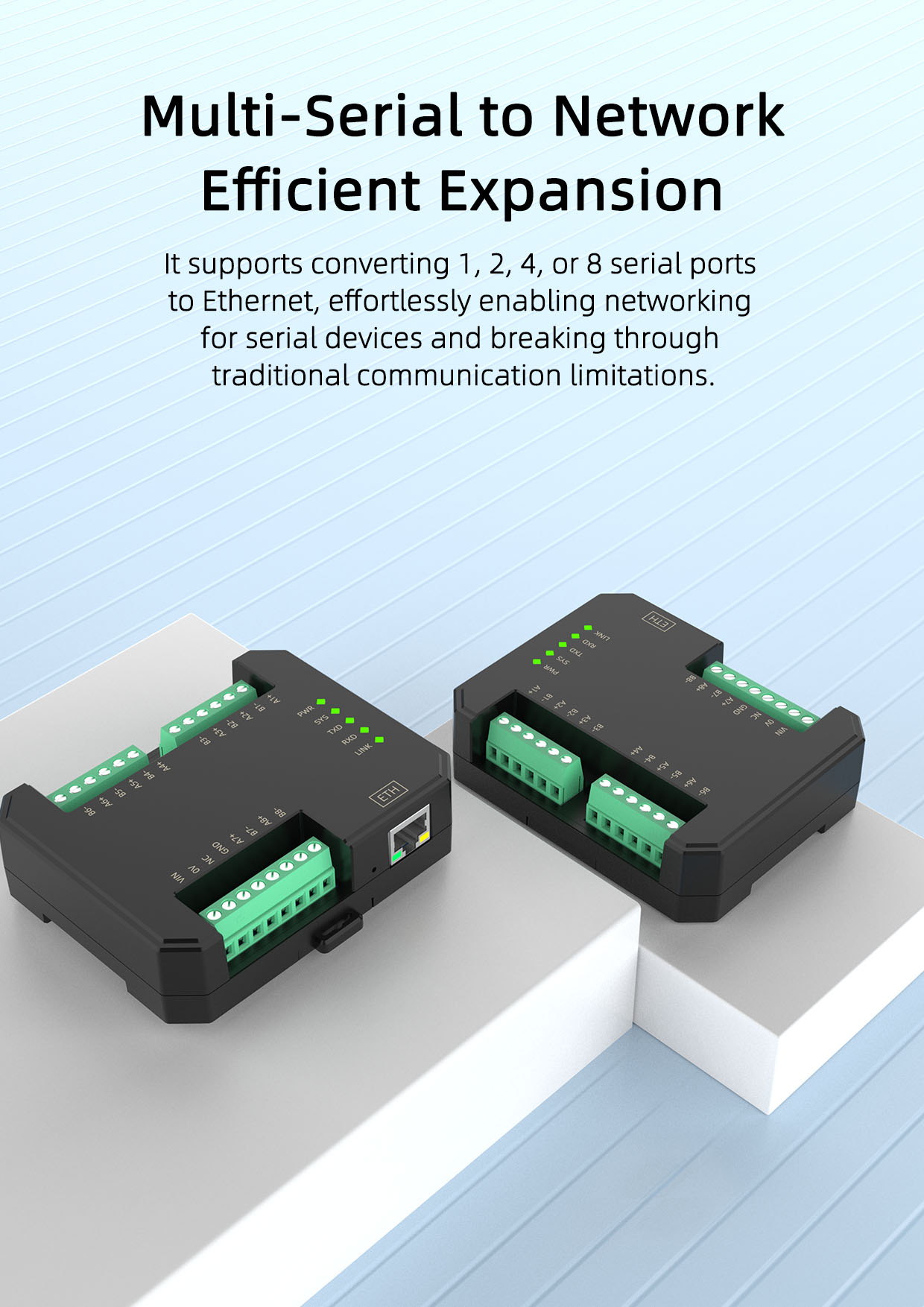

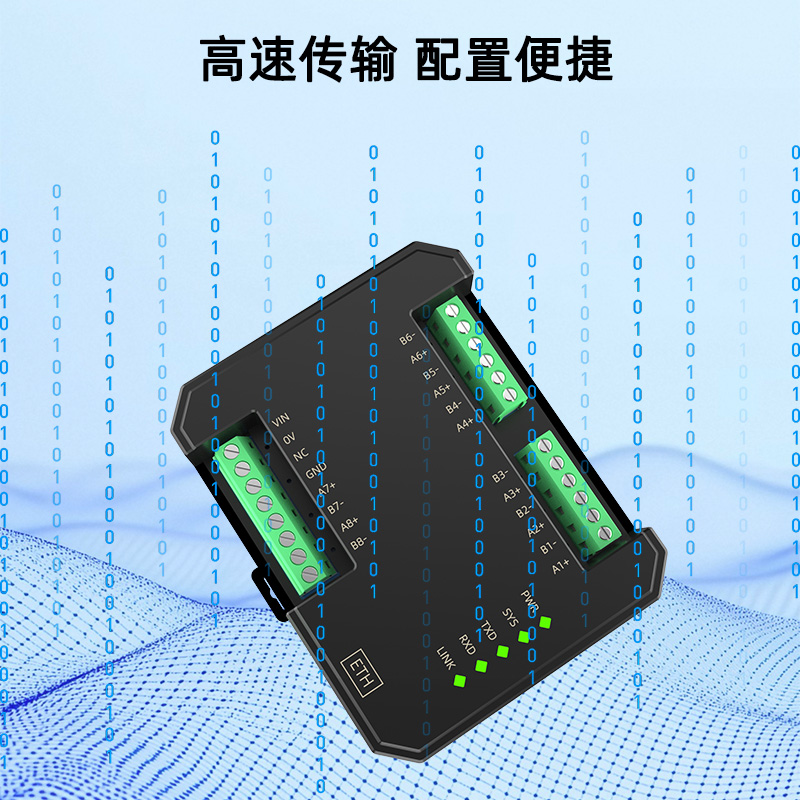

The SPC2080-MD series modules are multifunctional, composite serial port servers that convert 2/4/8-channel serial port data to Ethernet data. They feature various MODBUS gateway modes, as well as TCP Client, TCP Server, UDP Client, UDP Server, MQTT, and HTTP IoT gateway modes, meeting the networking needs of various serial devices and PLCs. They support serial port baud rates up to 115200bps and are easily configured via host software.

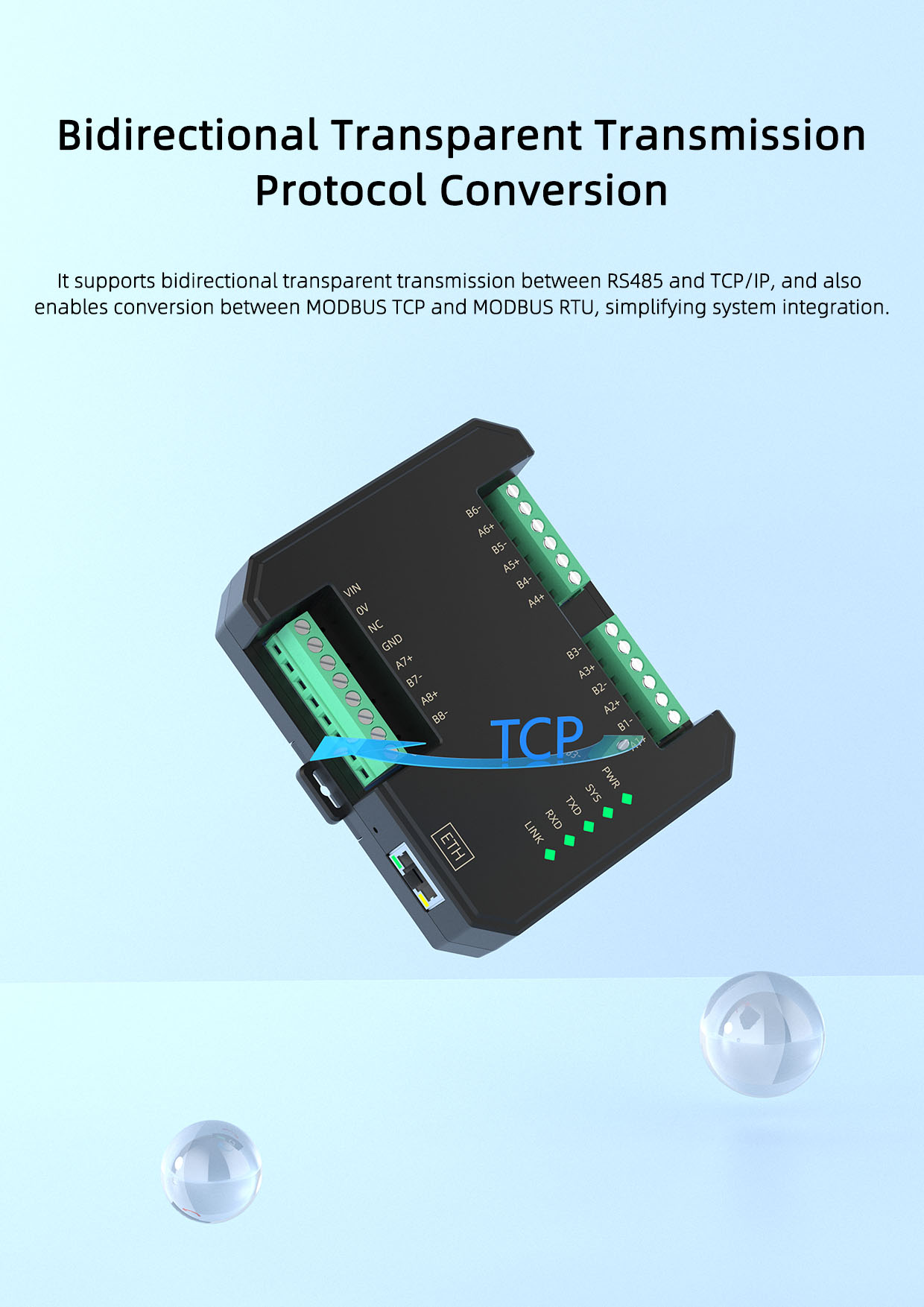

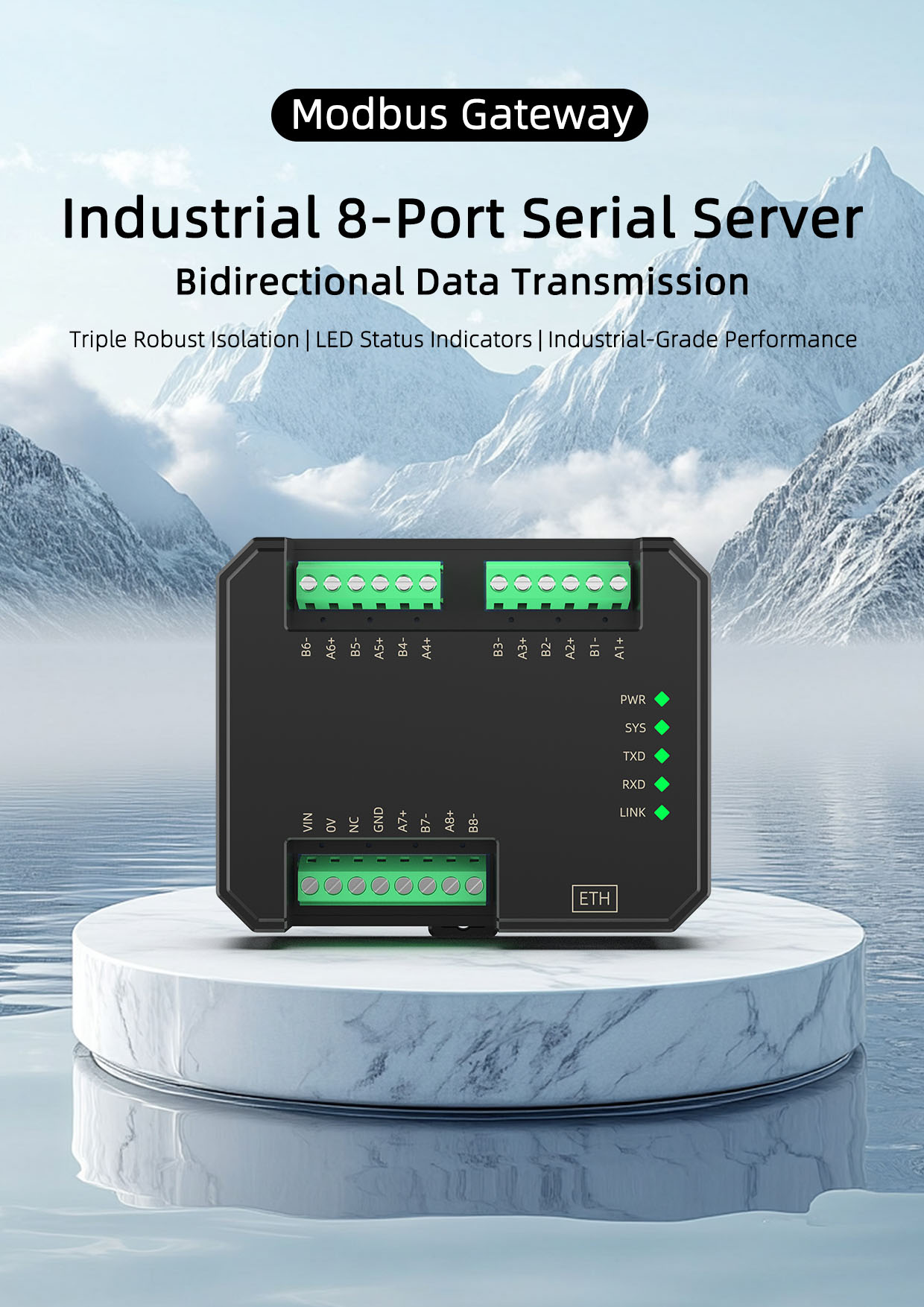

This series of modules not only provides conventional serial port server functionality, converting standard RS485 serial port signals into TCP/IP signals, enabling bidirectional transparent data transmission between RS485 serial ports and TCP/IP network interfaces, but also offers MODBUS gateway functionality, converting between MODBUS TCP and MODBUS RTU protocols. This allows serial devices to connect to Ethernet for data communication, significantly reducing serial device wiring and expanding communication modes and distances.

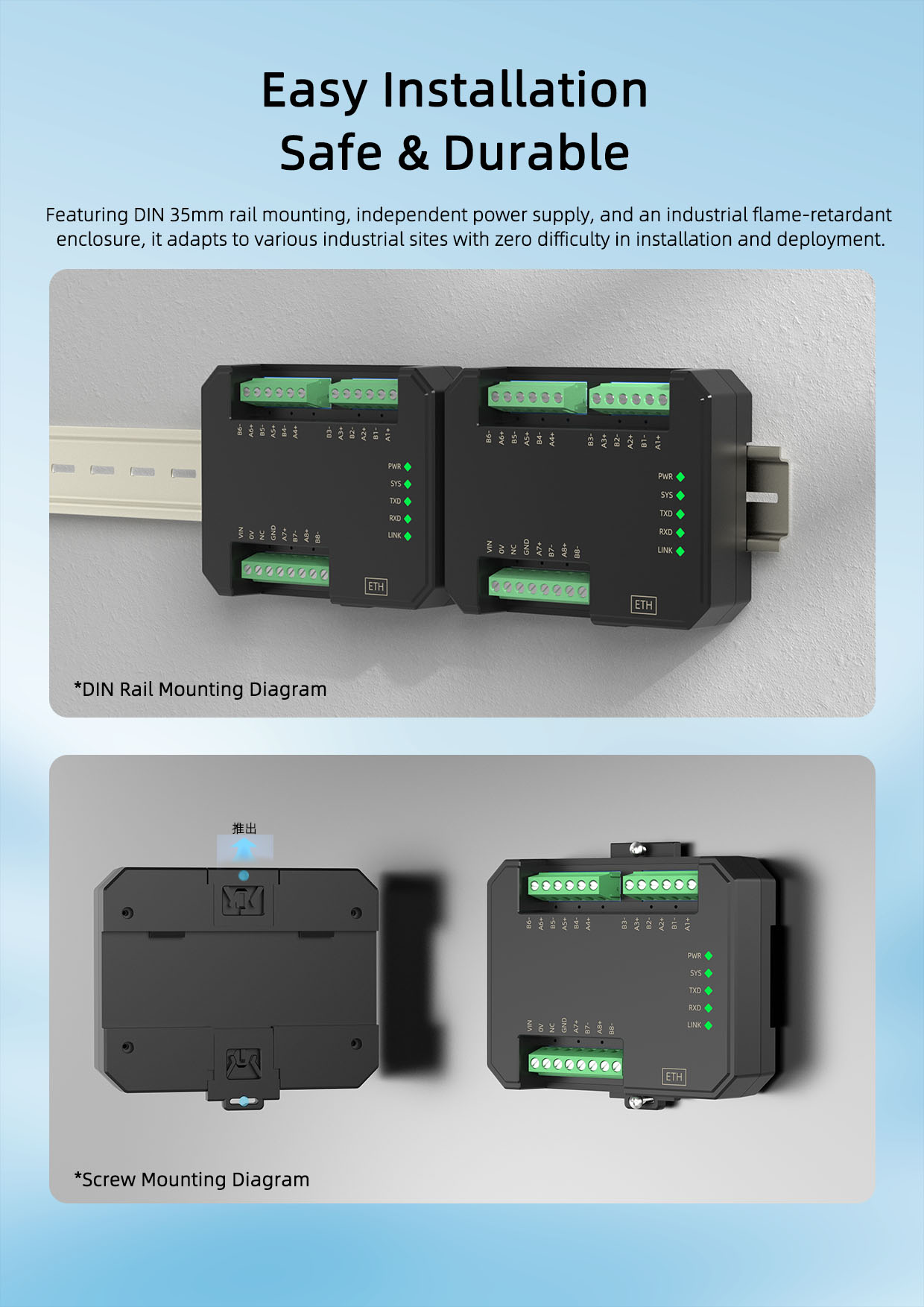

This product requires independent power supply and adopts DIN35mm standard rail installation. It is easy to install on site and flexible to use, and can cope with various on-site applications.

· Features

· Employs a 32-bit industrial-grade, high-performance microprocessor with precision-engineered design;

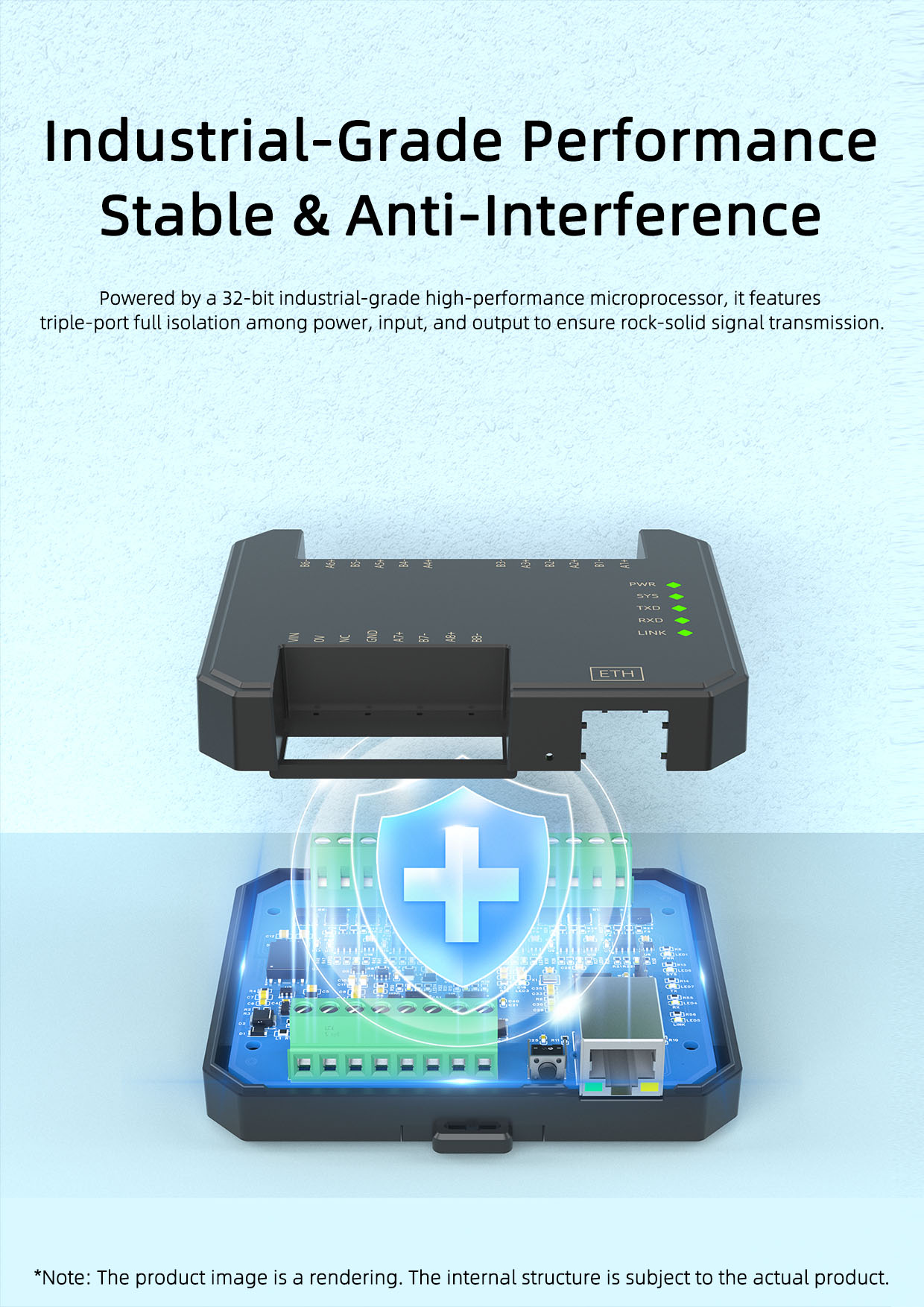

· Isolated input, output, and power supply with unique anti-interference measures for stable and reliable performance;

· Supports 10/100M full-duplex/half-duplex auto-sensing Ethernet interface, compatible with 802.3 protocols;

· Supports bidirectional transparent transmission of serial port data and network data;

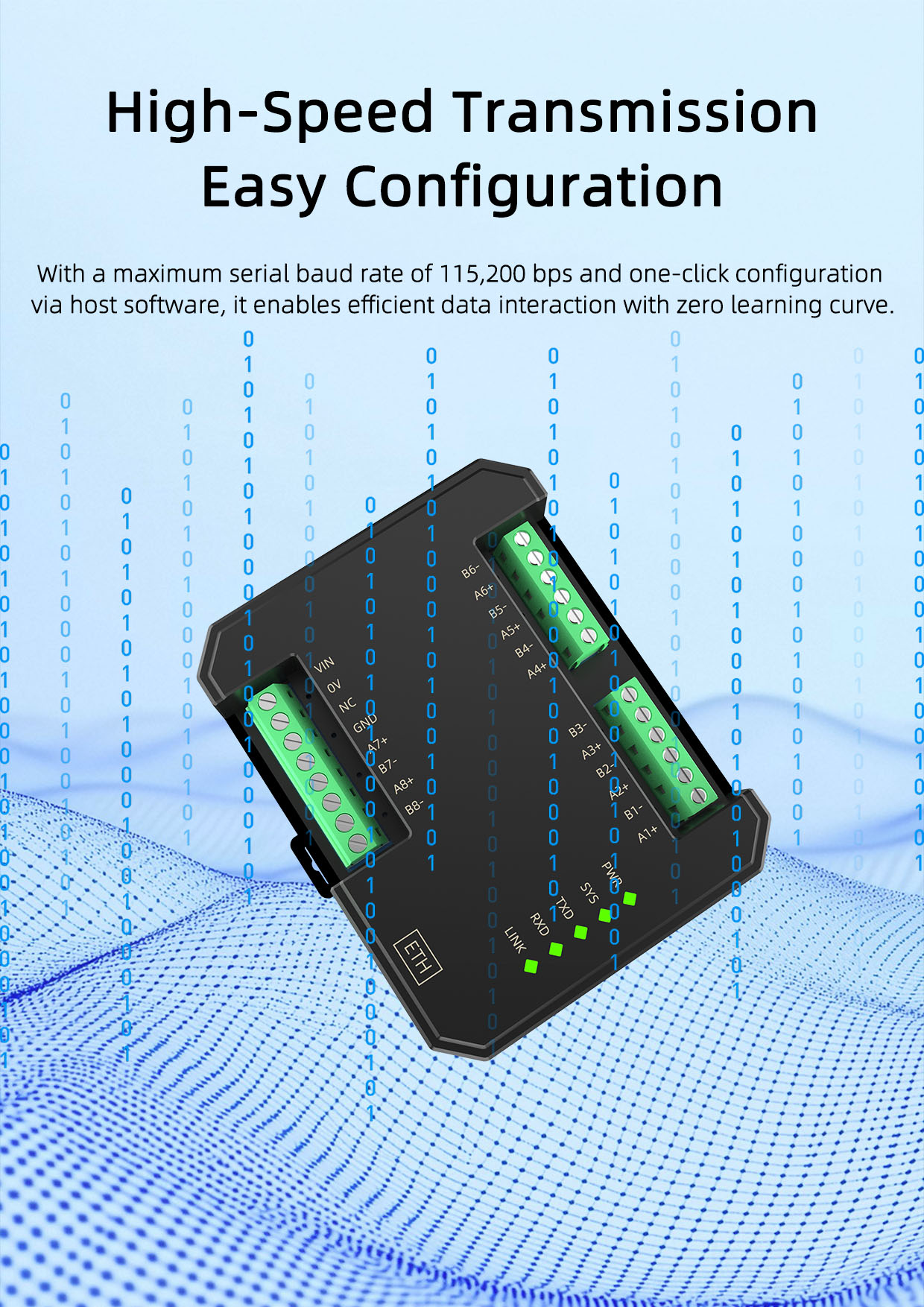

· Configuration using a host computer network configuration tool;

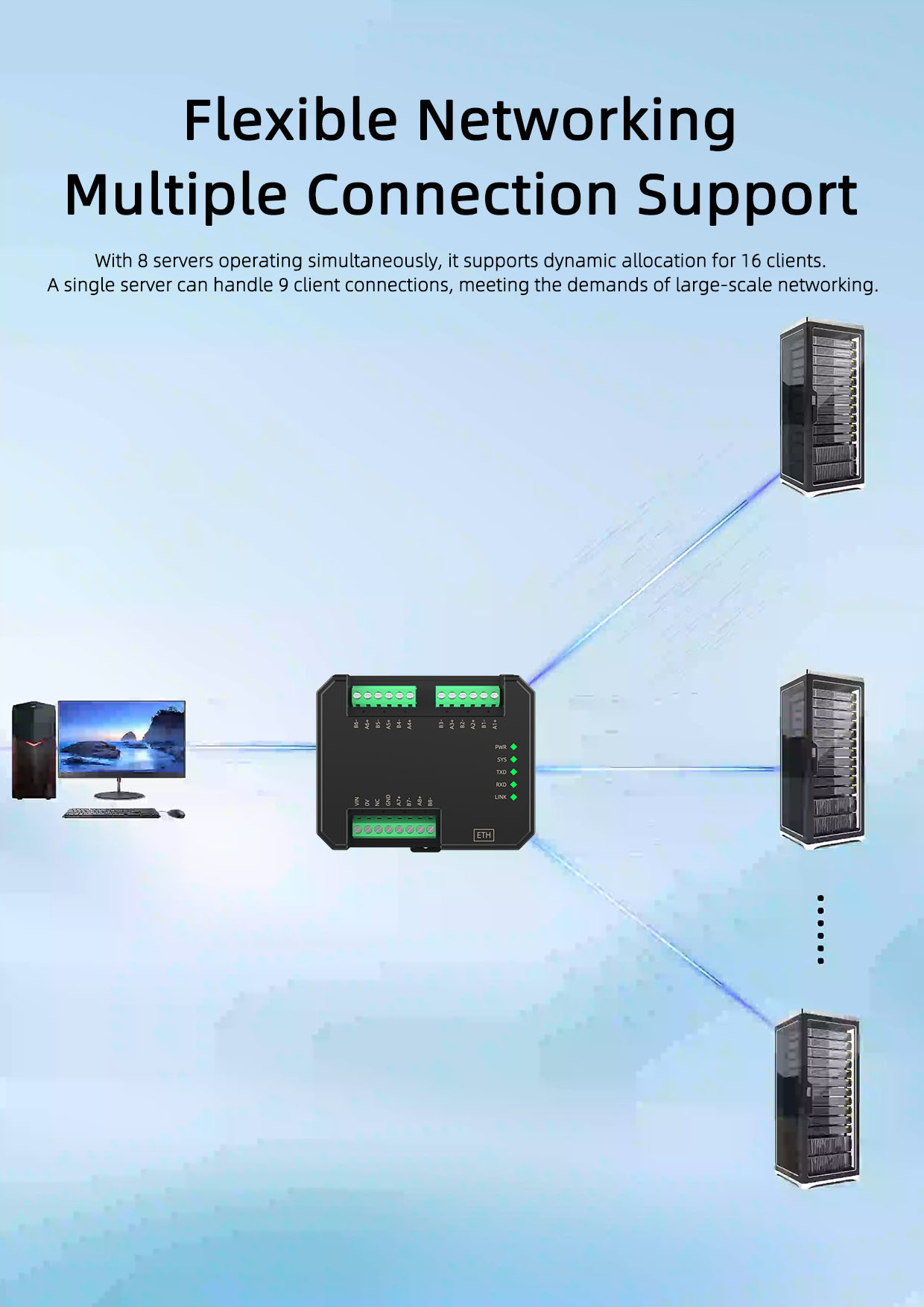

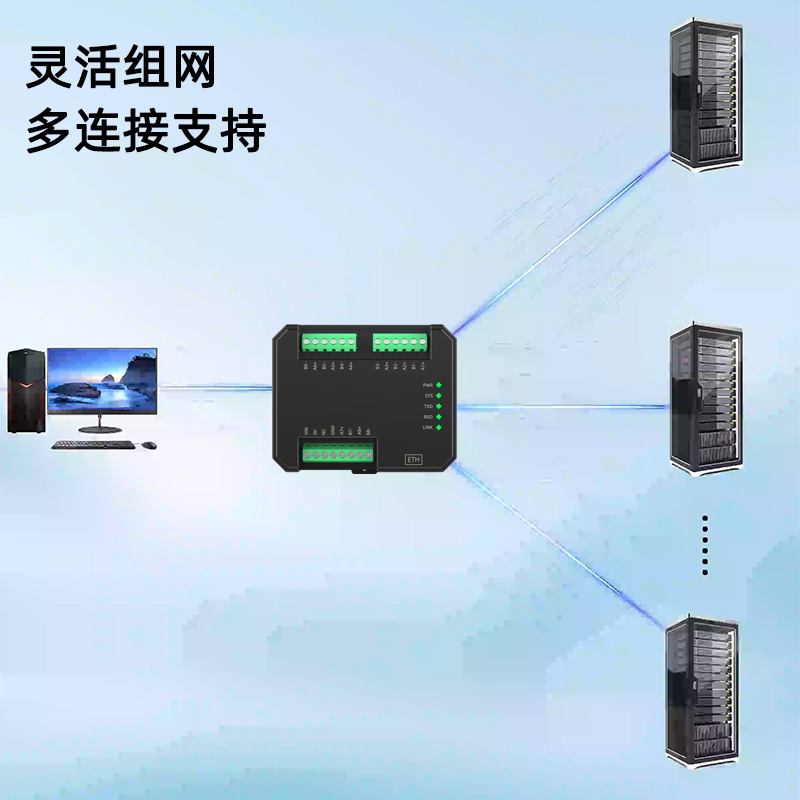

· Supports 8 simultaneous server connections, supports 16 dynamic client allocations, and supports 9 clients per server;

· The serial port uses RS485 communication, supports up to 8 RS485 communication interfaces, and features a serial port buffer clearing function;

· The serial port supports baud rates from 1200 to 115200 bps, multiple parity modes, 5 to 8 data bits, and 1 or 2 stop bits;

· Supports a serial port buffer clearing function;

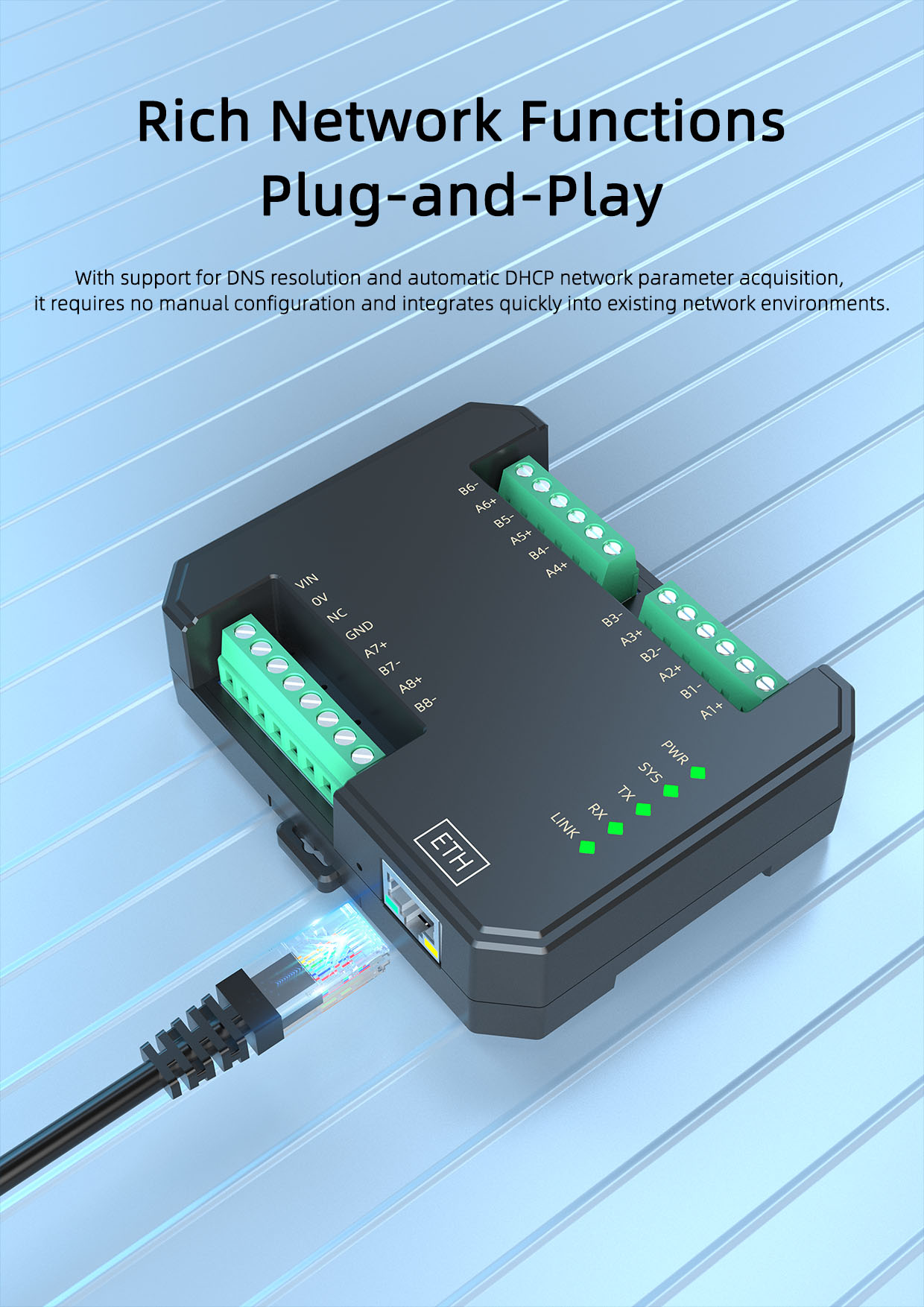

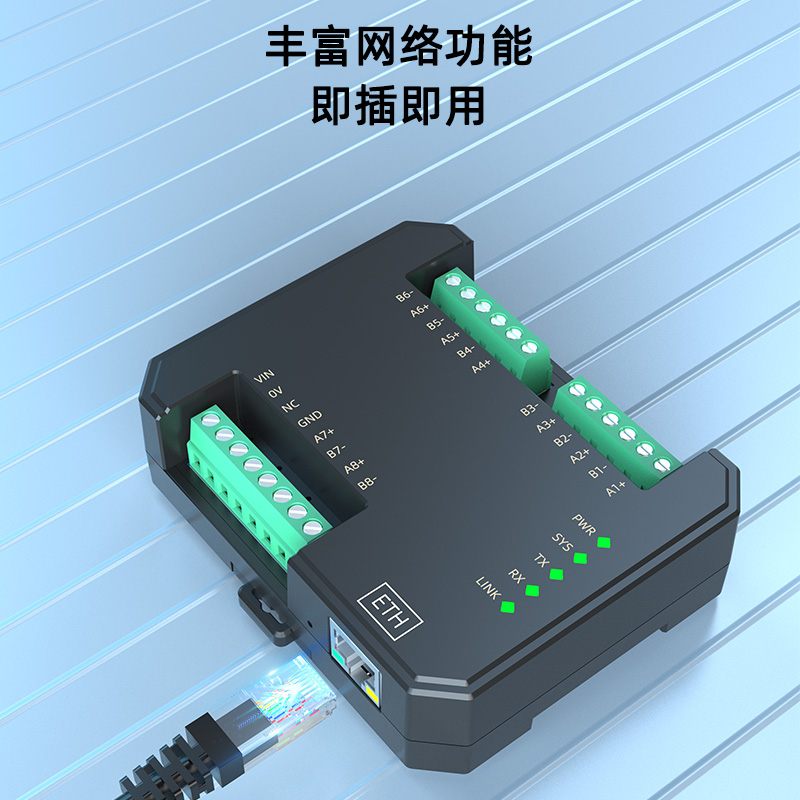

· Supports DNS domain name resolution, DHCP for dynamic IP, subnet mask, default gateway, and DNS Server address;

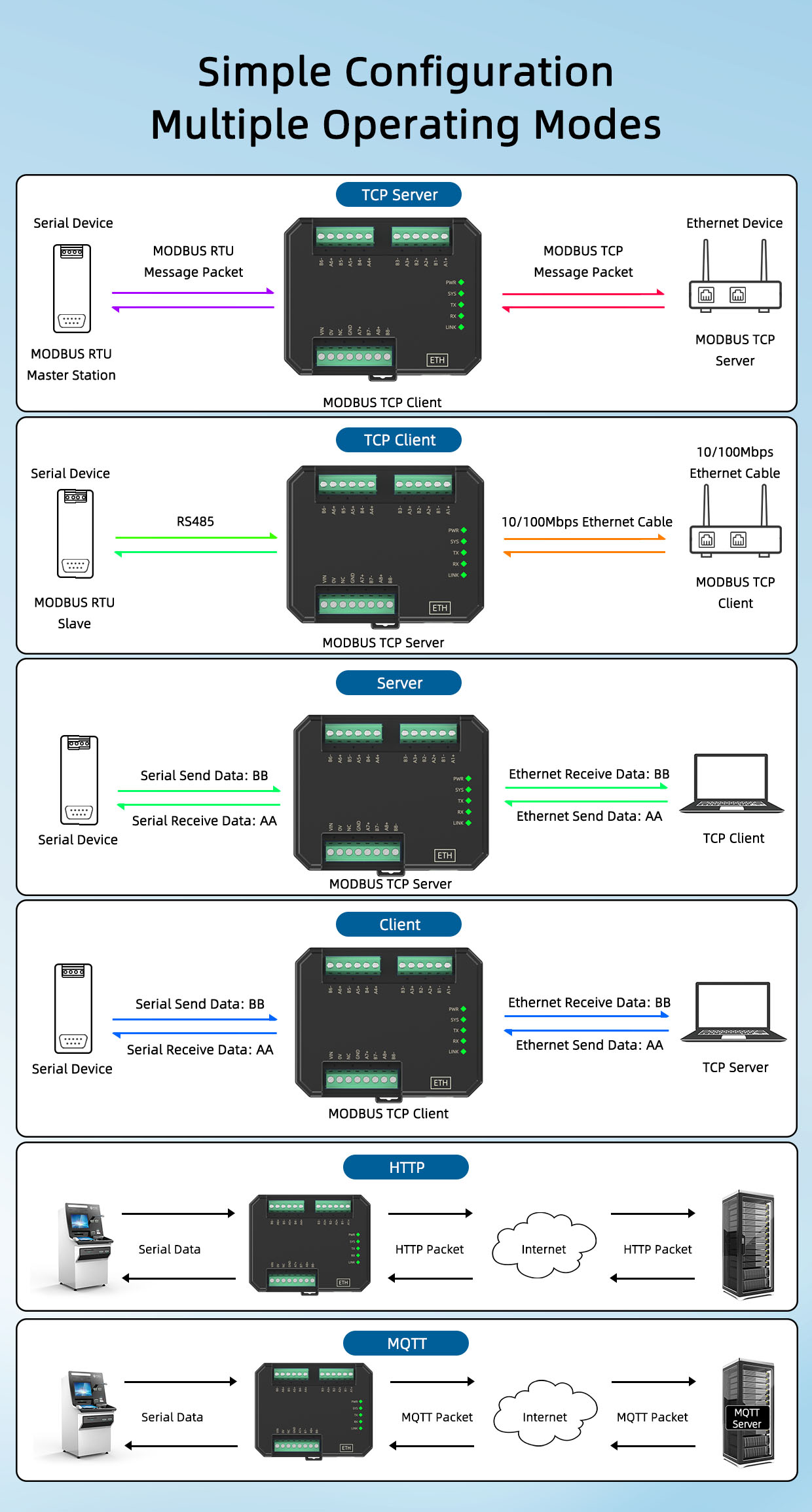

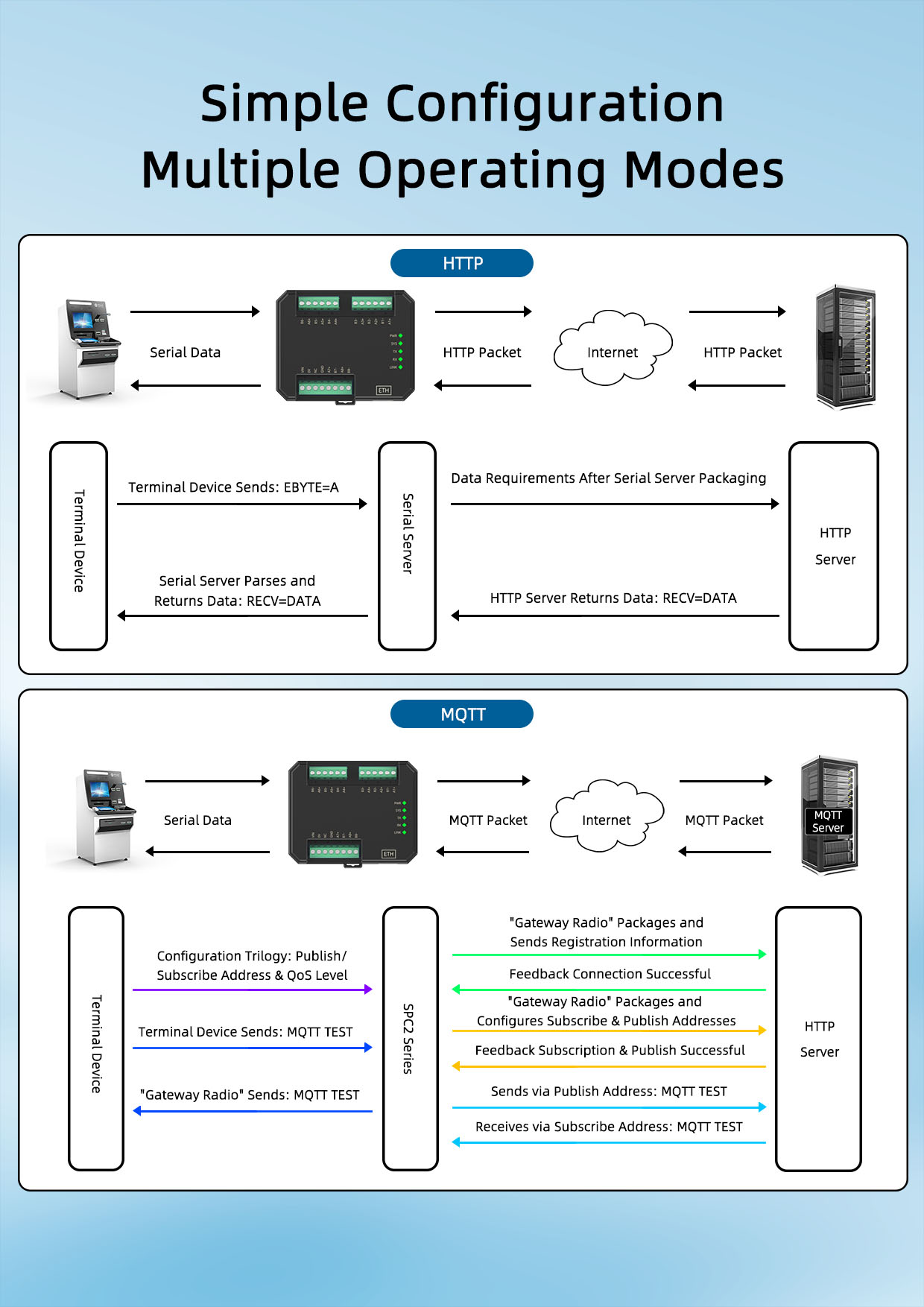

· Supports TCP, UDP, MQTT, and HTTP client modes, as well as TCP and UDP server modes;

· Supports MODBUS gateway, enabling active reporting from RTU devices;

· Supports conversion between MODBUS TCP and MODBUS RTU protocols, and also supports multi-host mode with one-question-one-answer;

· Supports active reporting of MODBUS data to TCP transparent transmission servers, MQTT servers, etc.;

· Supports HTTP client mode, using the HTTP/1.1 protocol;

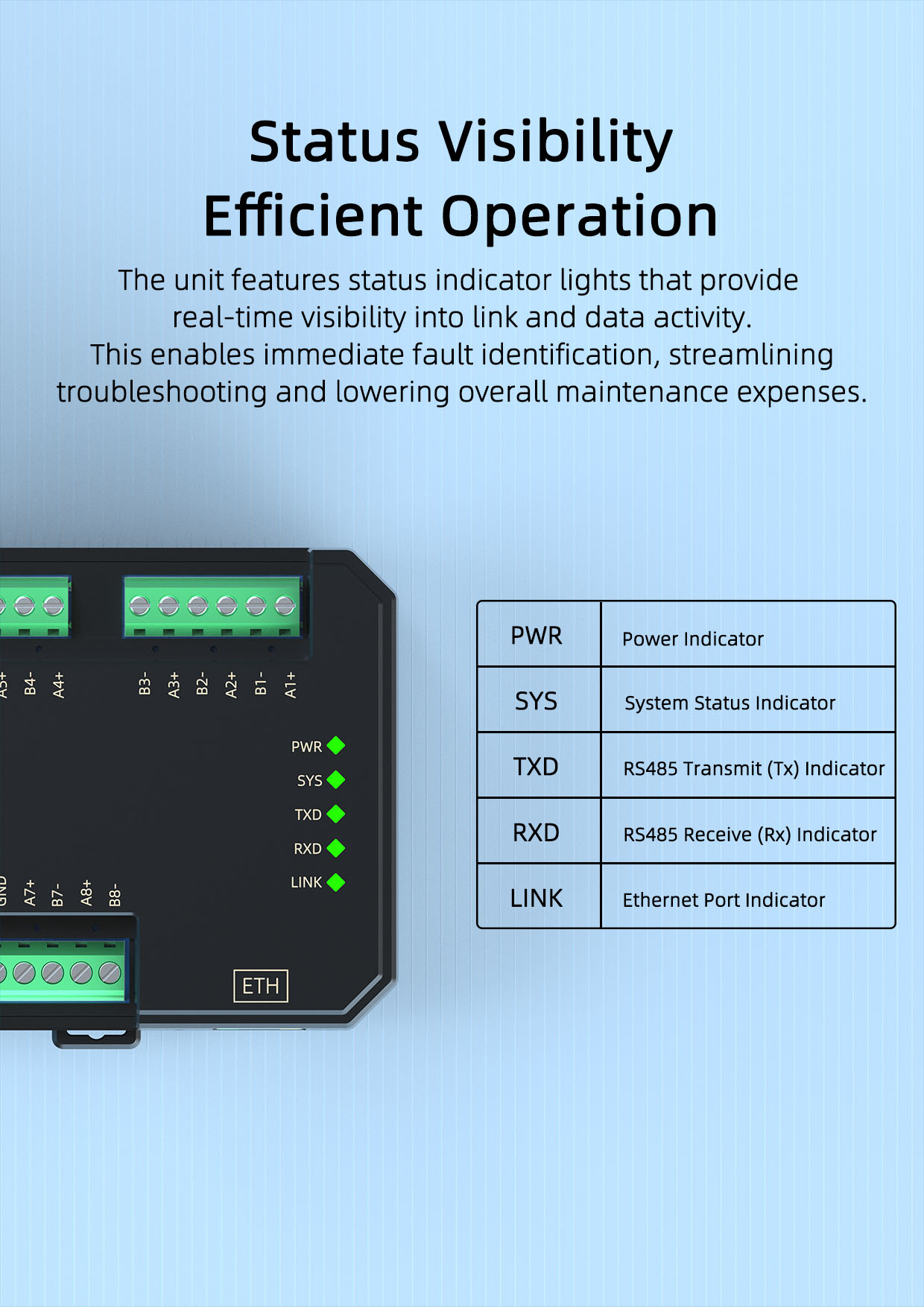

· Configurable indicator lights to indicate connection disconnection, connection establishment, and data transmission status.

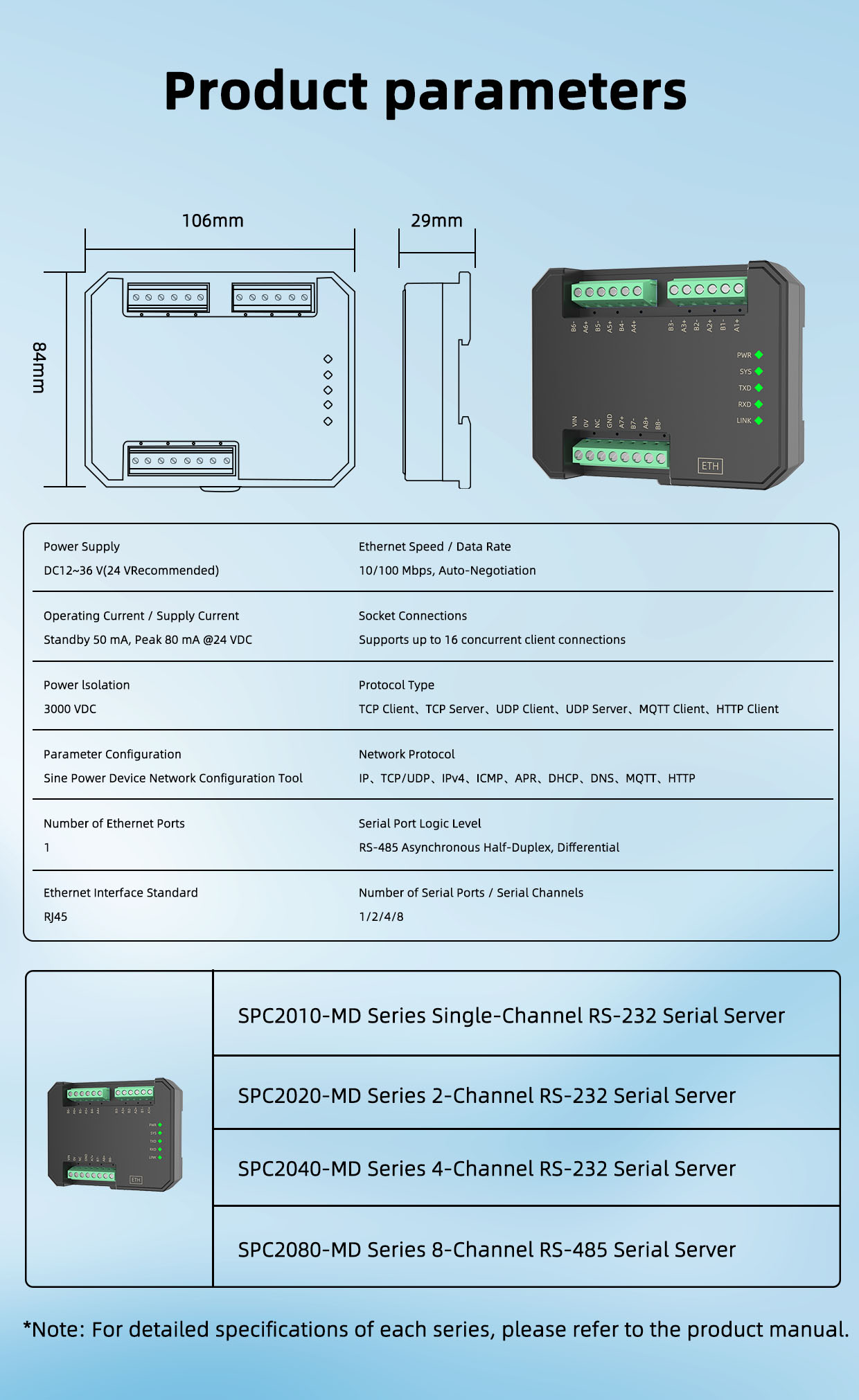

· Basic Parameters

Power Supply DC12～36V(DC24V recommended)

Operating Current Standby≤50mA, Peak ≤80mA @DC24V

Power Isolation 3000VDC

Configuration Sine Power Equipment Network Configuration Tool

· Ethernet Interface

Ethernet Interface 1

Interface Standard    RJ45

Network Port Speed 10/100M

Socket Connection Supports up to 16 client connections

Protocol Type TCP Client, TCP Server, UDP Client, UDP Server, MQTT Client, HTTP Client

Network Protocols IP, TCP/UDP, IPv4, ICMP, APR, DHCP, DNS, MQTT, HTTP

IP Address 192.168.3.200 (User-Definable)

Domain Name Resolution Supported

Subnet Mask 255.255.255.0 (User-Definable)

DNS Domain Name Resolution 114.114.114.114 (User-Definable)

Local Port Default channels 1-8 correspond to ports 8001-8008

Gateway 192.168.3.1 (user-defined)

Packing mechanism 8 x 512 bytes

Network port isolation 1500VDC

· Serial communication parameters

Communication level RS485 asynchronous half-duplex differential

Number of channels: 2/4/8

Communication buffer 256 bytes

Baud rate 1200 ～ 115200bps

Data bits 5-8 bits

Parity None, odd, even

Stop bits 1, 2

· Environmental Conditions

Operating Temperature -40℃～+80℃

Storage Temperature -40℃～+85℃

Relative Humidity 10%～90%RH(non-condensing)

Atmospheric Pressure 80kPa～106kPa
