· Product Introduction

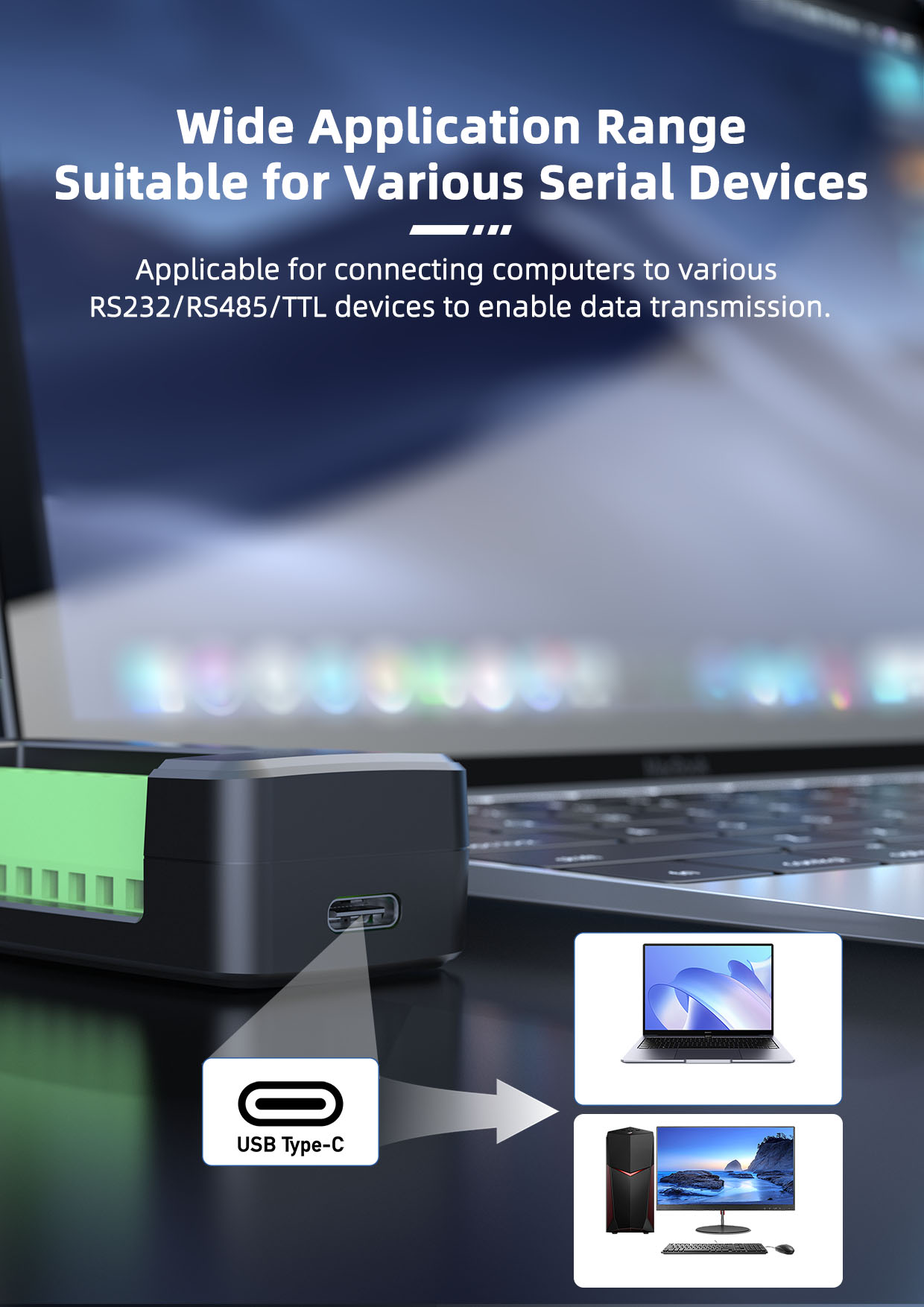

The SPC1031-KB is a practical USB-to-serial port module. Its core function is to bridge the gap between a computer's USB interface and a physical serial port, enabling data conversion between the two and facilitating communication between different devices.

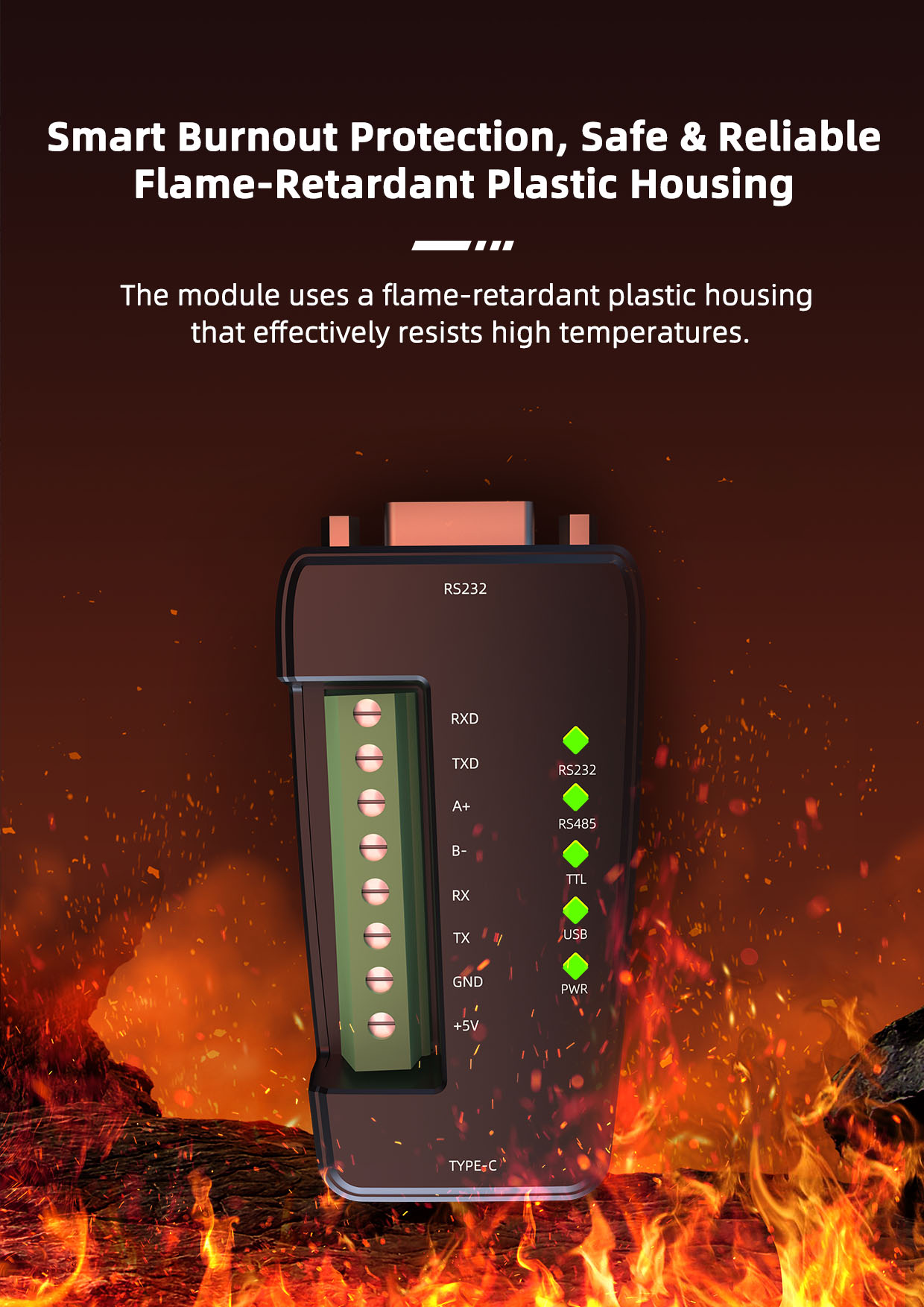

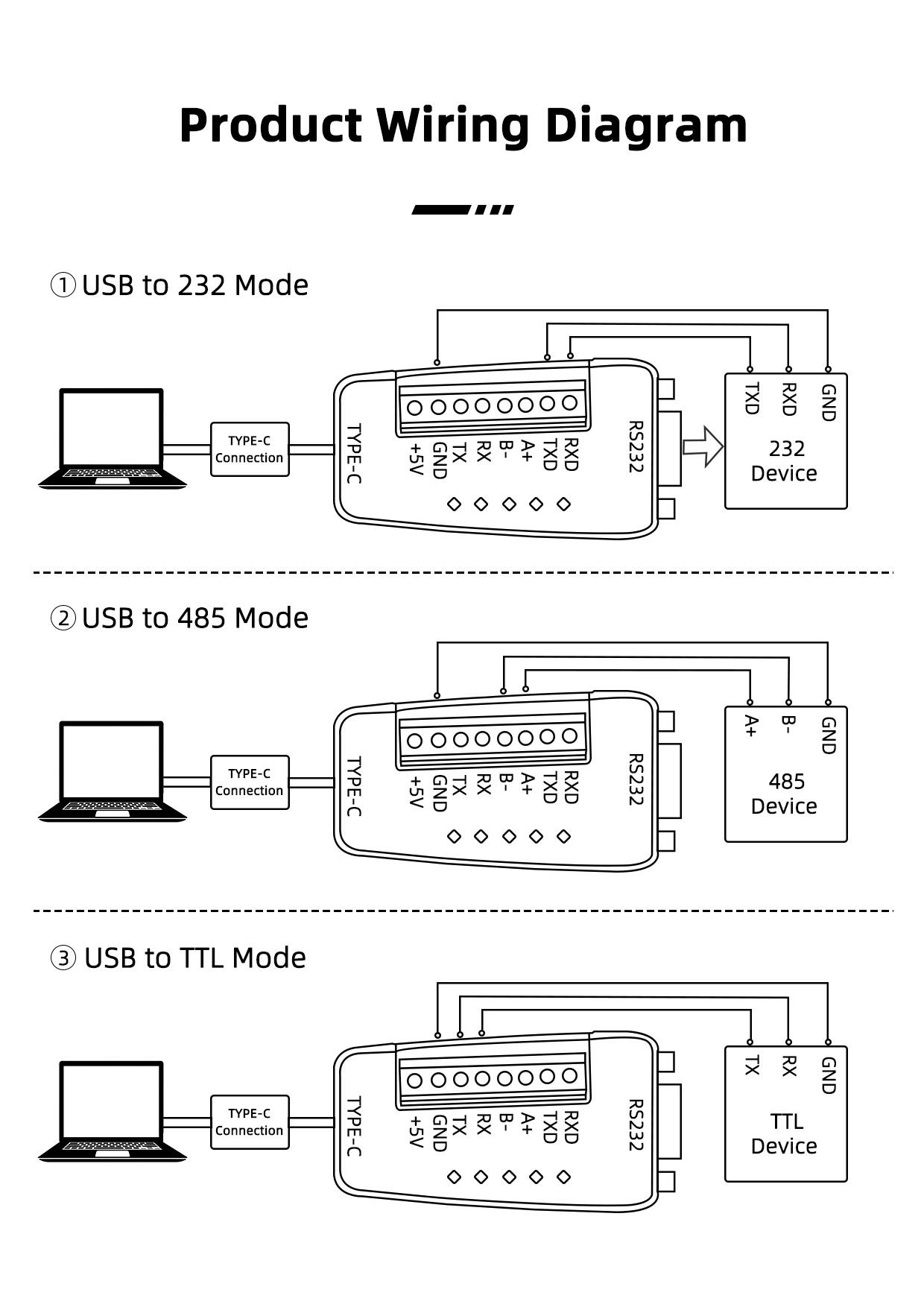

The module features three built-in level conversion chips, enabling flexible conversion between USB and RS232, RS485, and TTL levels. Compatible with Windows, Linux, and Mac OS, it connects easily and is convenient to use. Its flame-retardant plastic housing enhances safety during use.

The module's internal circuitry is meticulously designed, with optimized impedance matching in key signal paths to minimize signal attenuation during high-speed data transmission. The module also features a built-in 200mA auto-recovery fuse, which automatically disconnects when current exceeds 200mA, protecting both your device and the USB port.

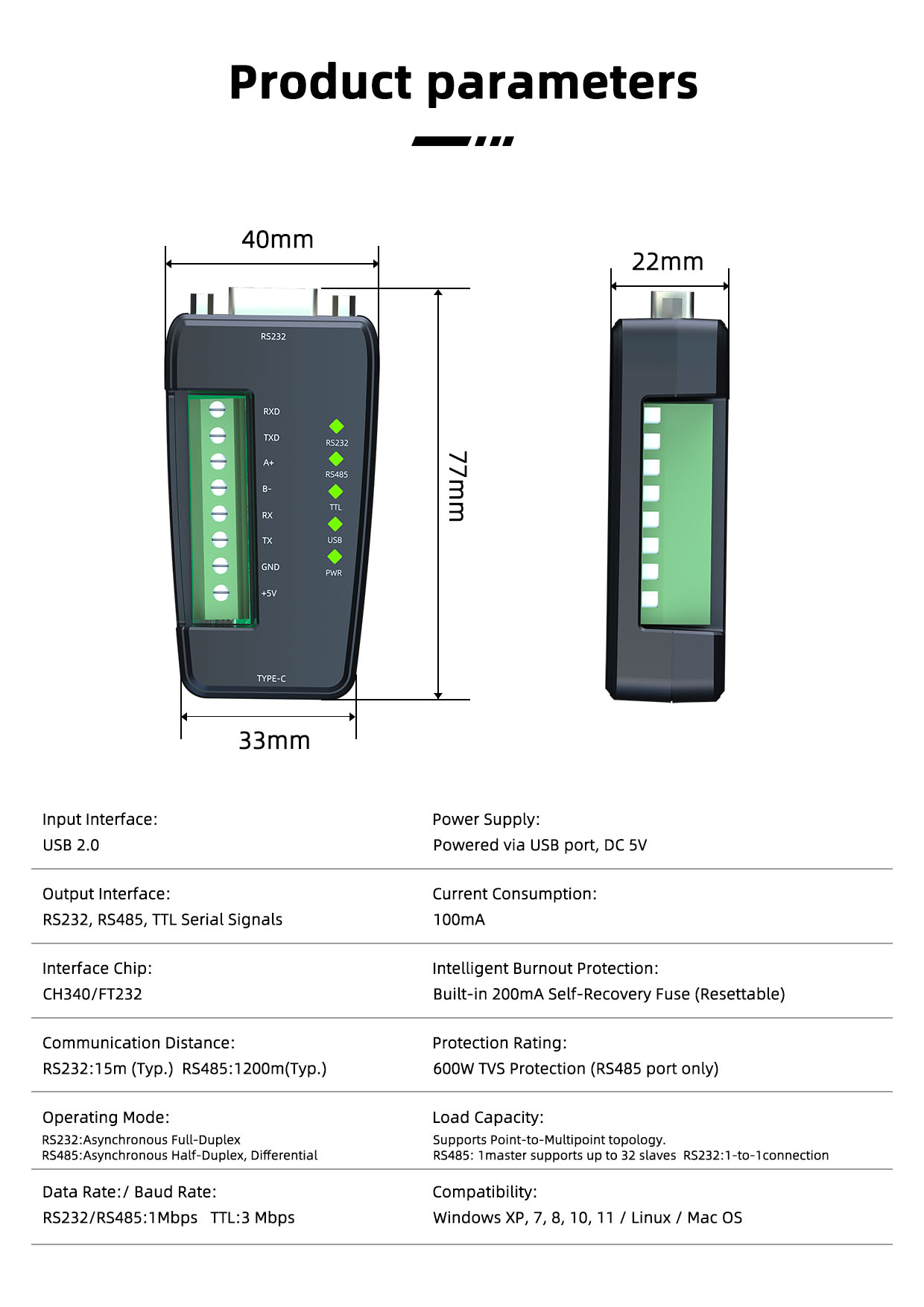

· Basic Parameters

Input Interface  PC: USB 2.0

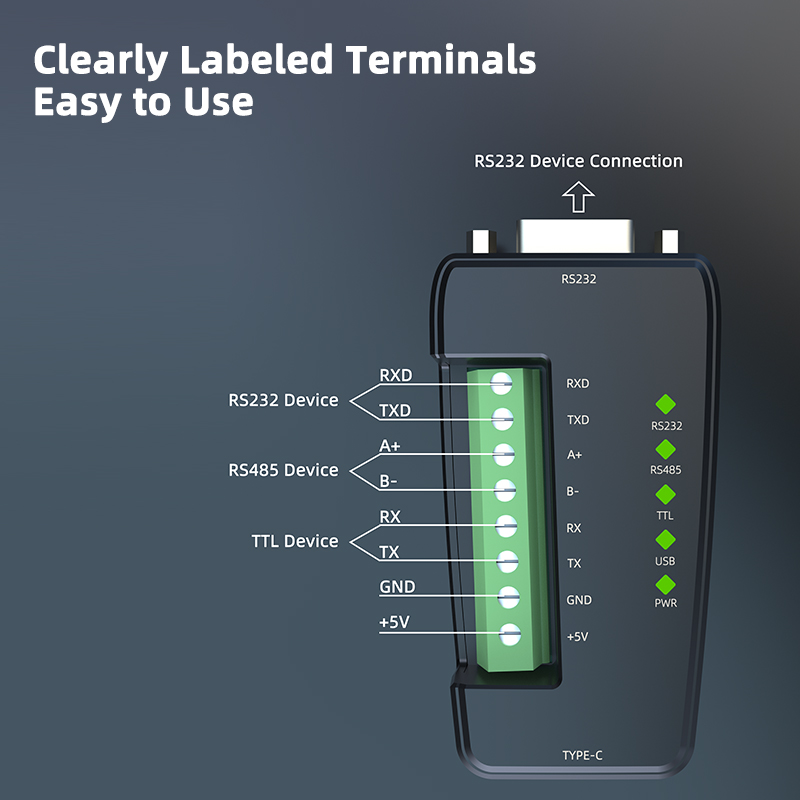

Output Interface Device: RS232,RS485, TTL Serial Signal

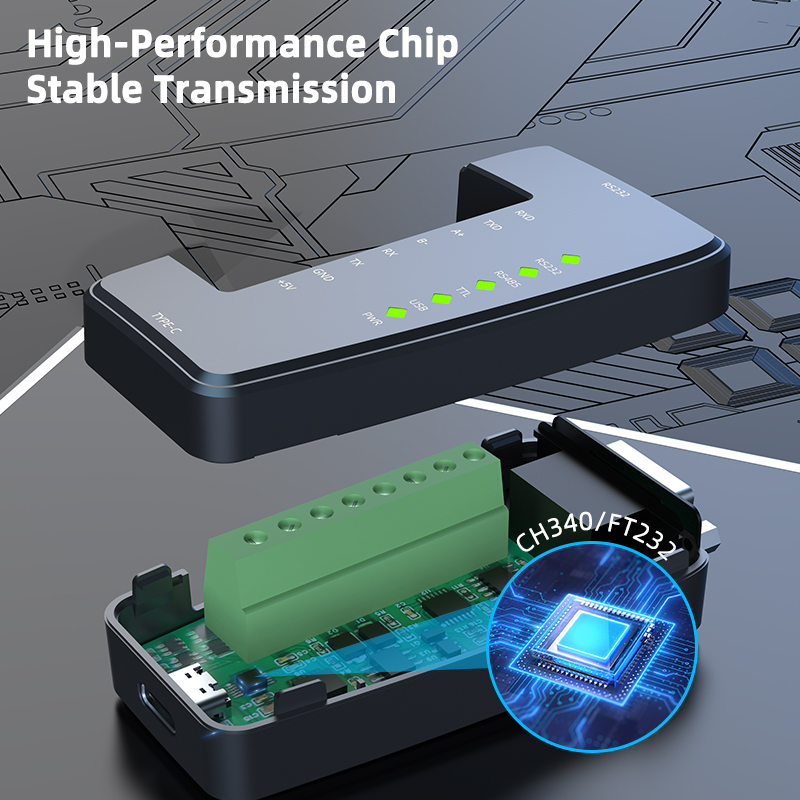

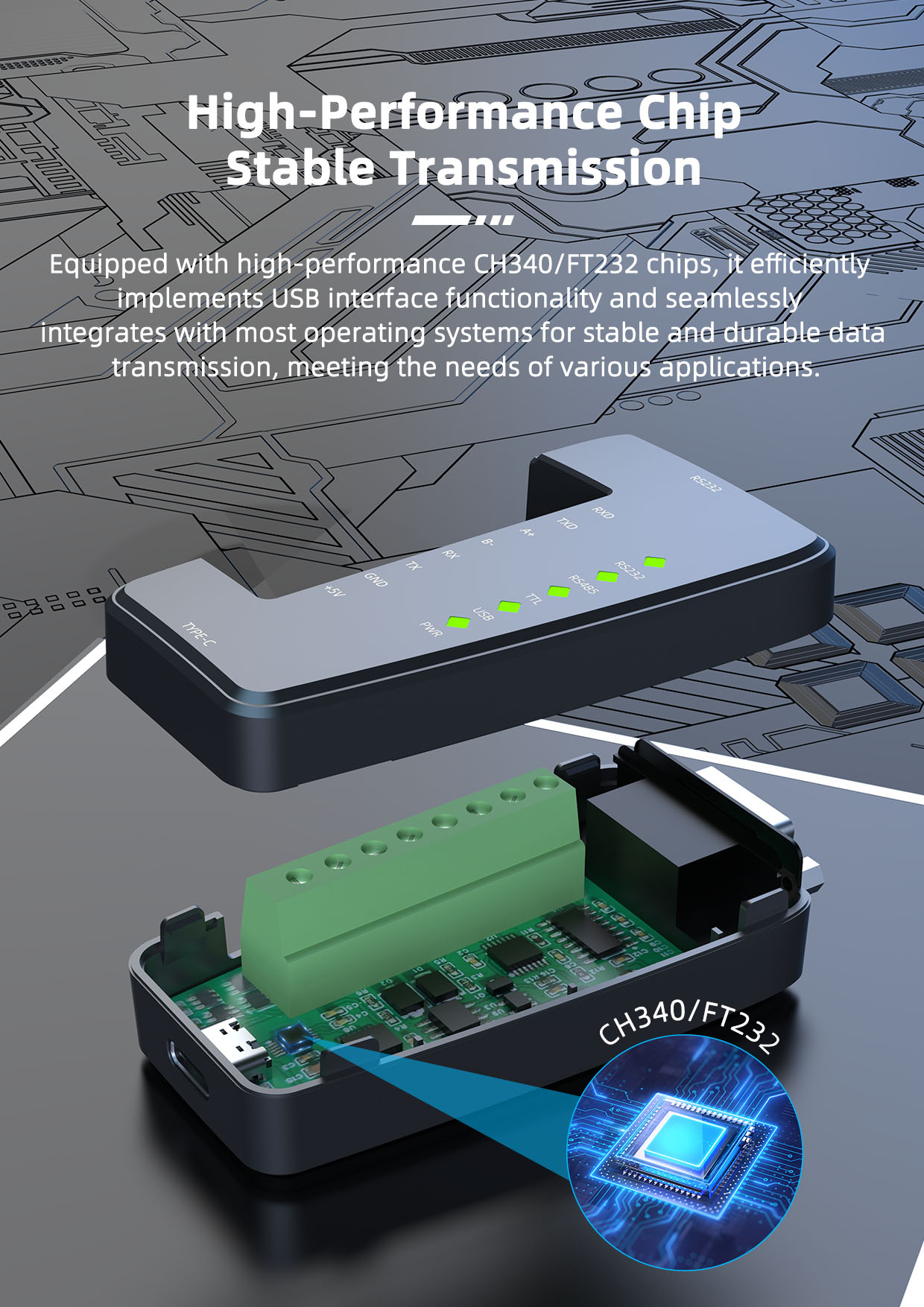

Interface Chip   FT232 FTDI Chip

Communication Distance RS232: 15m (typical)

RS485: 1200m (typical)

Operating Mode RS232 Asynchronous Full-Duplex

RS485 Asynchronous Half-Duplex Differential

Transmission Rate RS232/RS485:1Mbps , TTL:3M

Power Supply USB port, DC 5V

Current Consumption ≤100mA

Intelligent Burnout Protection Built-in 200mA resettable fuse

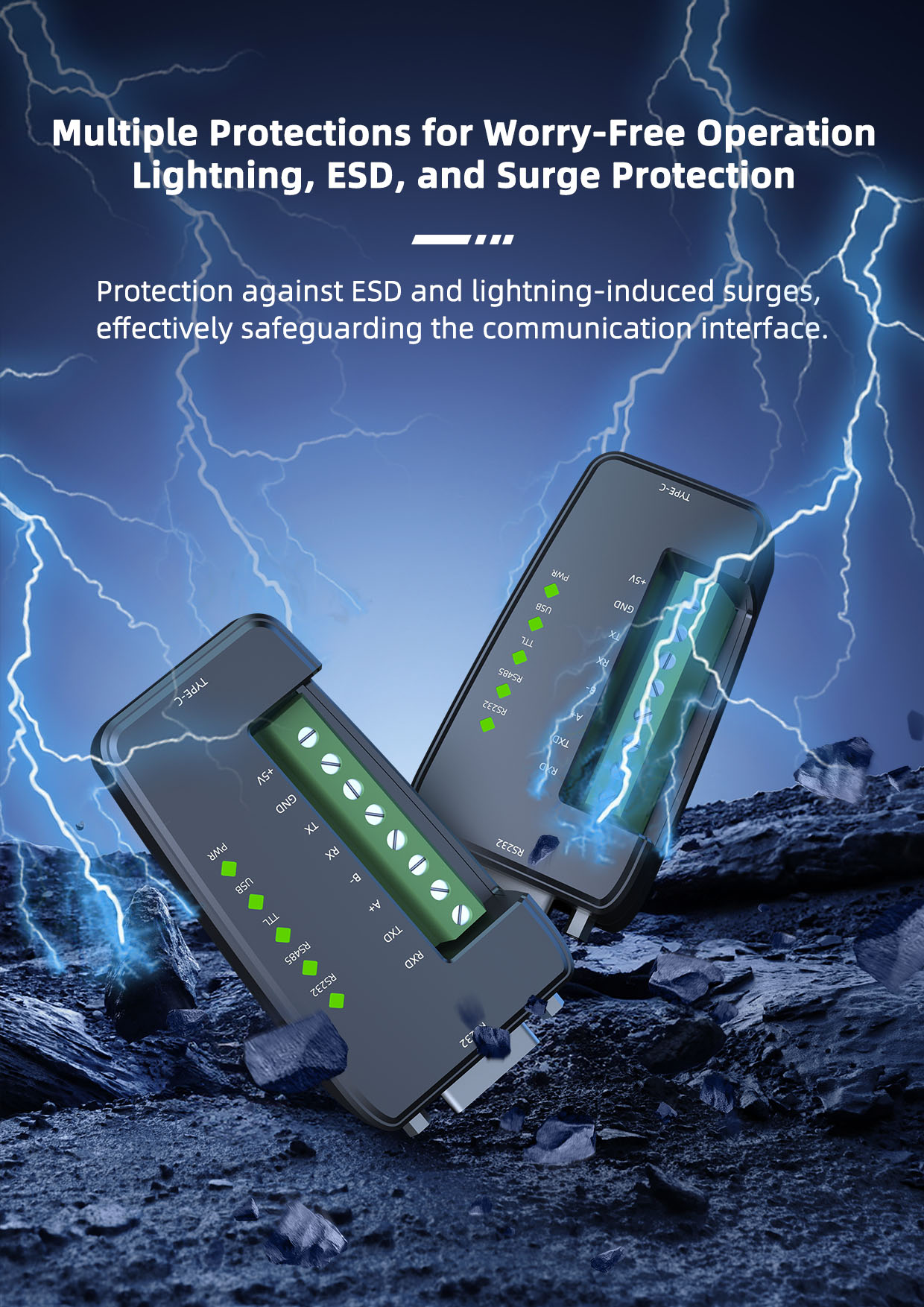

Protection Rating RS232:±15kV ESD

RS485: 600W TVS

Load Capacity Supports point-to-multipoint, 485:1 with 32, 232:1 pairs 1

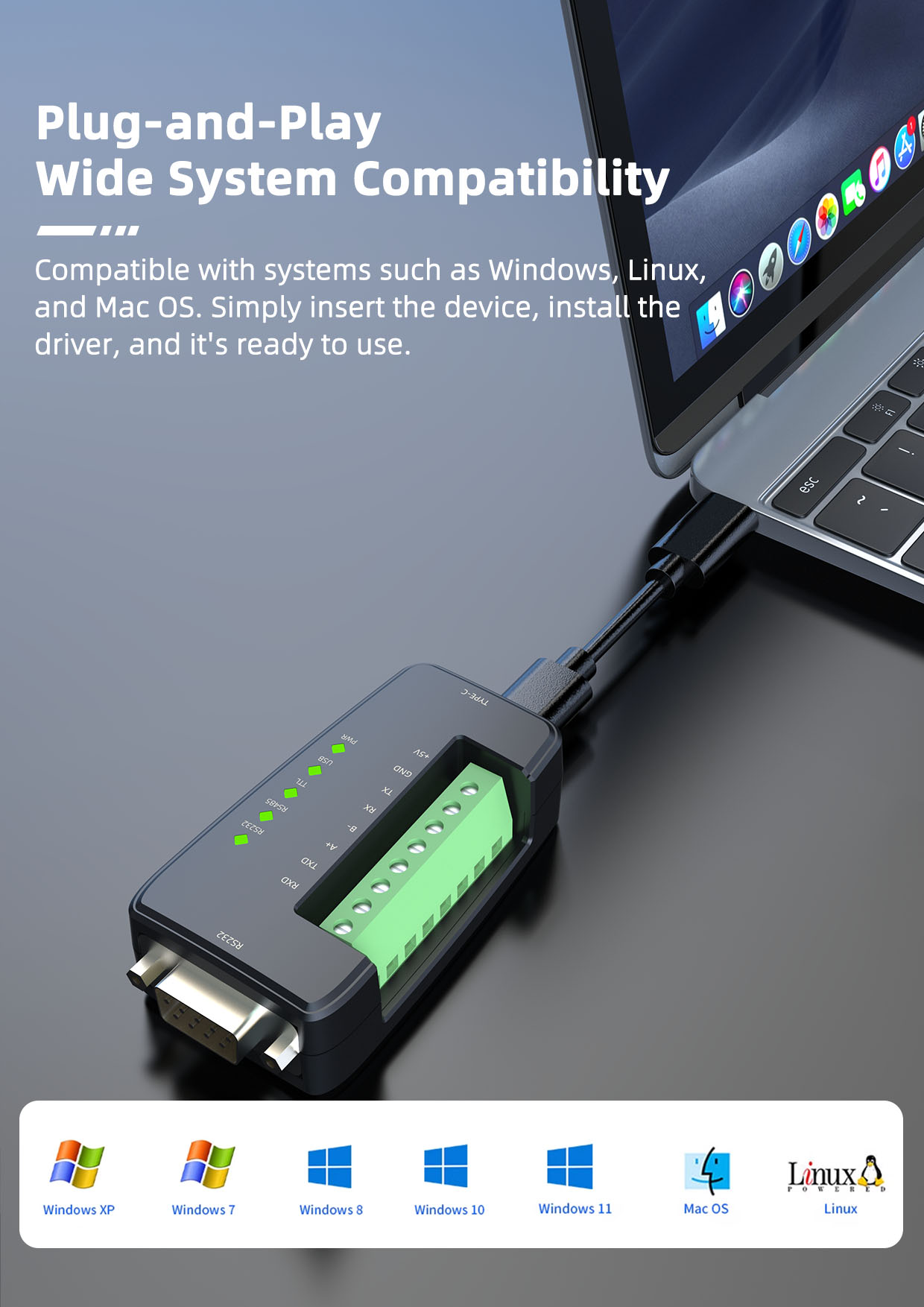

Compatibility Supports Windows XP, Windows 7/8/10/11,Linux, and Mac OS

Isolation Voltage Internal: No isolation

· Environmental Conditions

Operating Temperature -20℃～+60℃

Storage Temperature -40℃～+85℃

Relative Humidity 10%～90%RH (non-condensing)

Atmospheric Pressure 80kPa～106kPa
